PRODUCT DETAILS

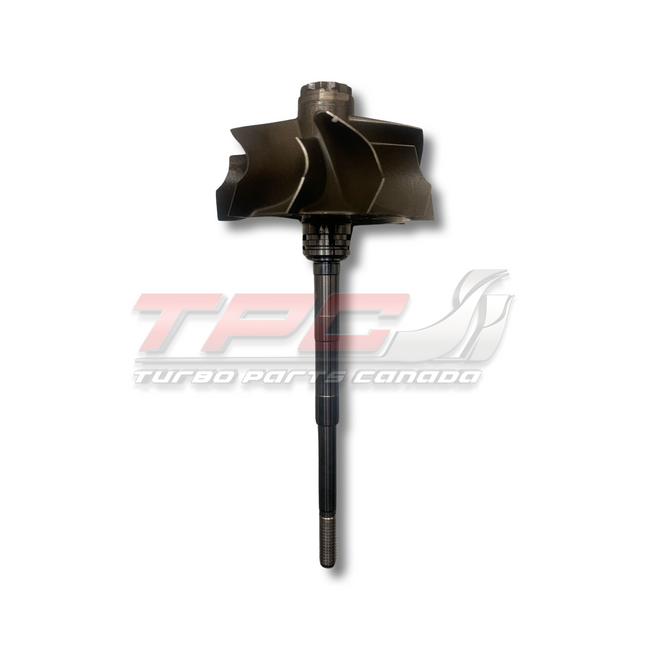

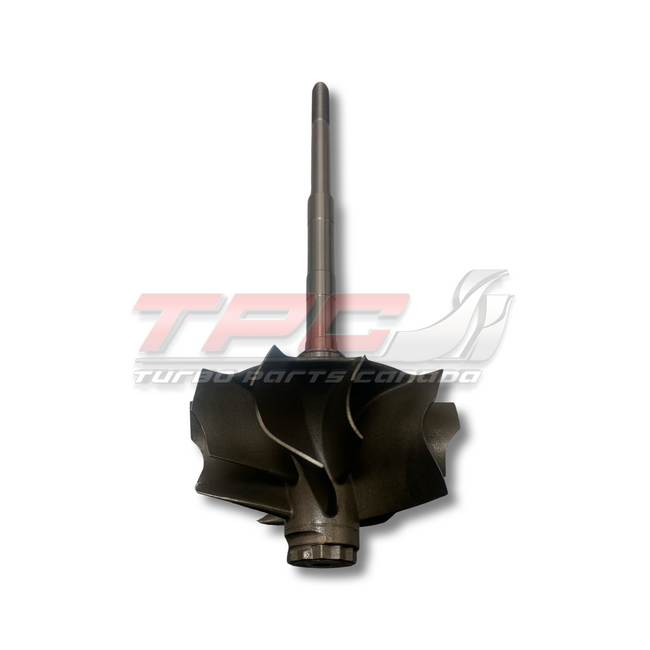

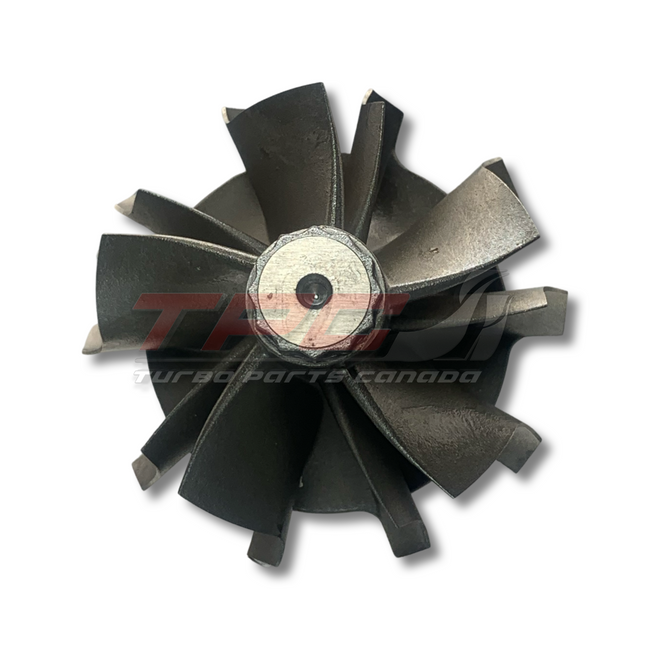

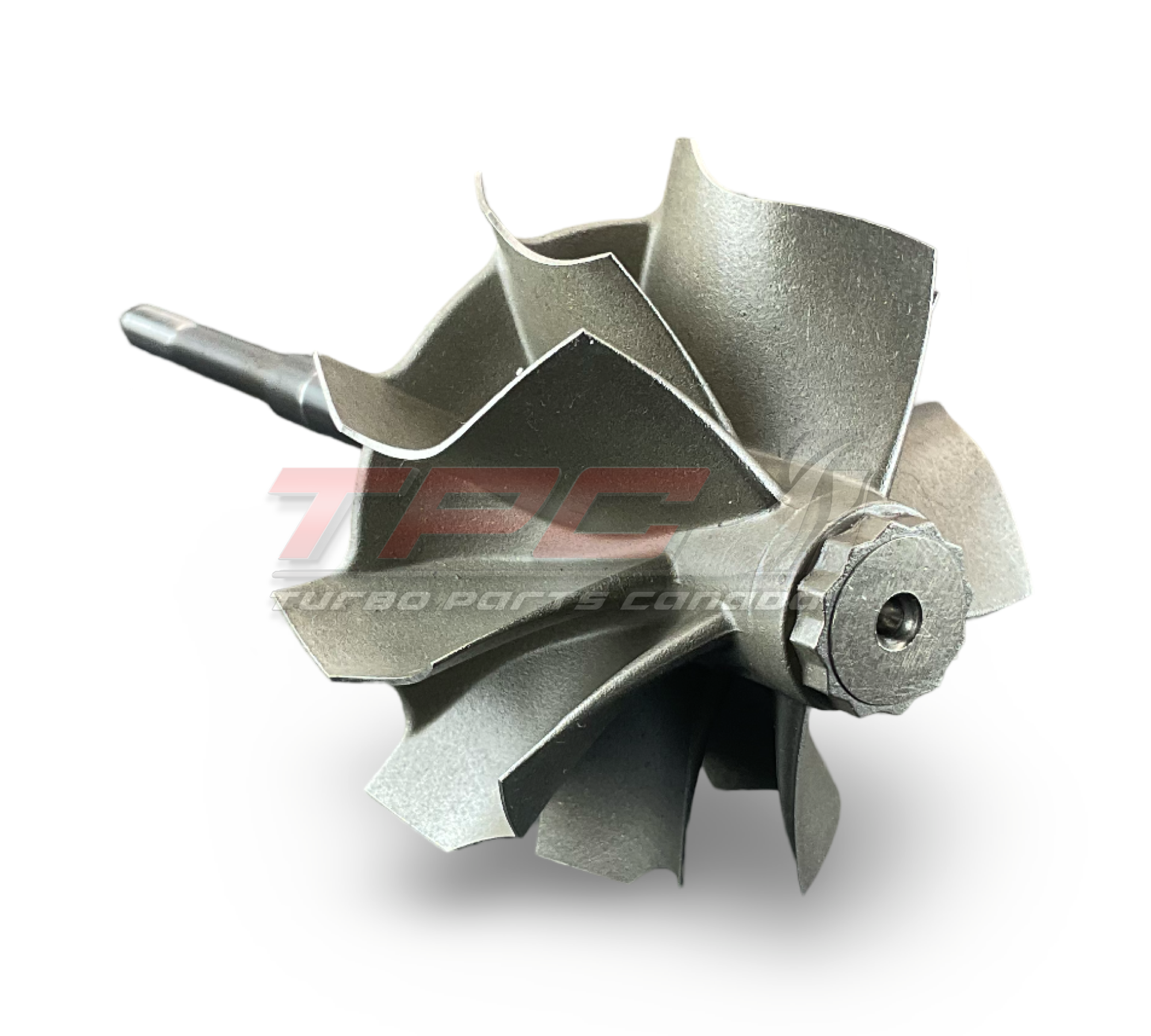

xTPC is proud to introduce a 58mm 5+5 UHF turbine wheel for any of your GT/GTX30 turbos. This turbine fits in between a 55mm GT30 and a 62mm GT35. This is the perfect set up to get a little more out of your GT30 without having to go up to a GT35.
This new turbine wheel style design is to help release back pressure without sacrificing spool. In other words these act like a well designed clipped turbine wheel.
You can order just the turbine wheel if you are a hobbyist machinist looking to do your own machining. (Drawings will be included)

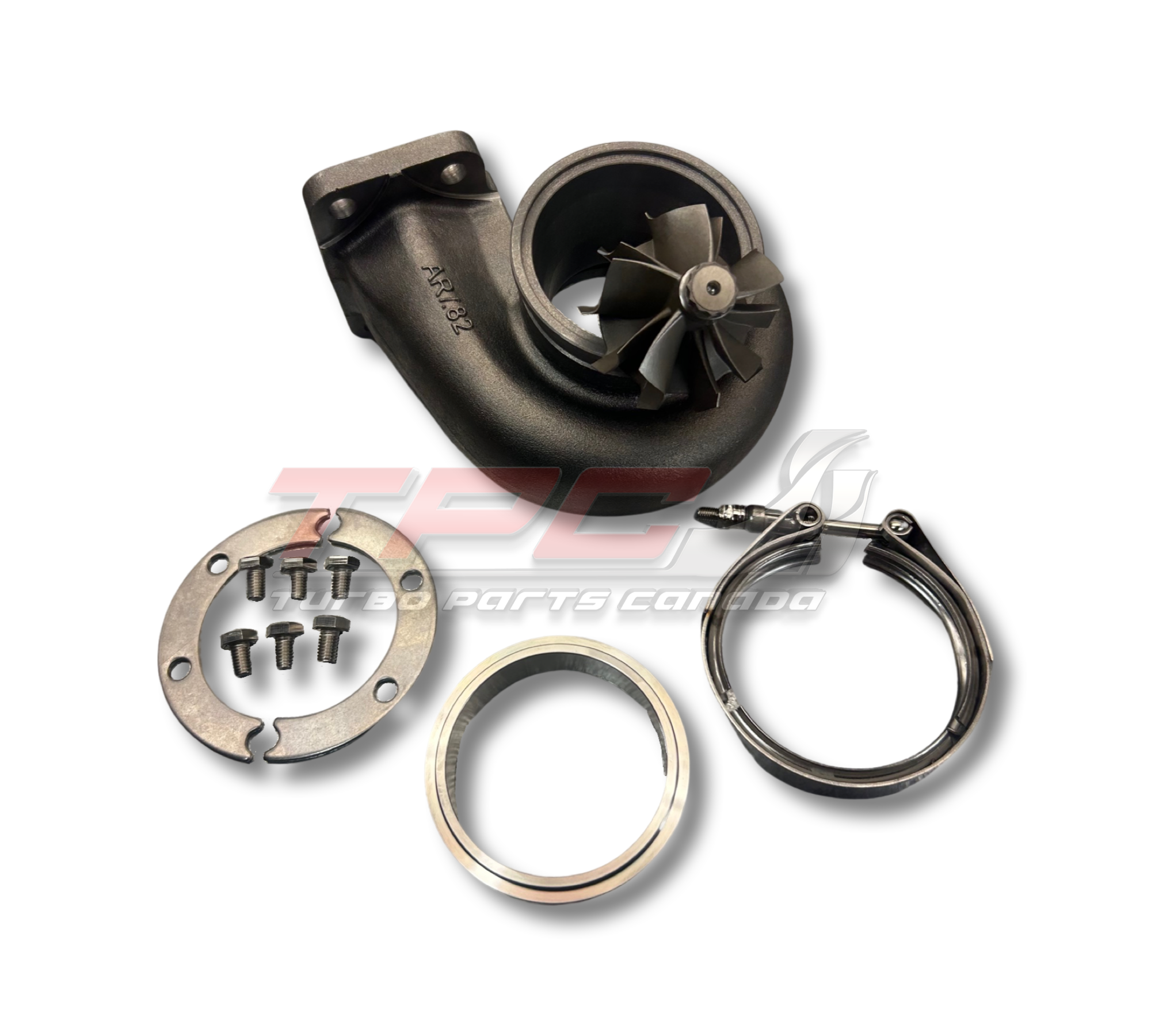

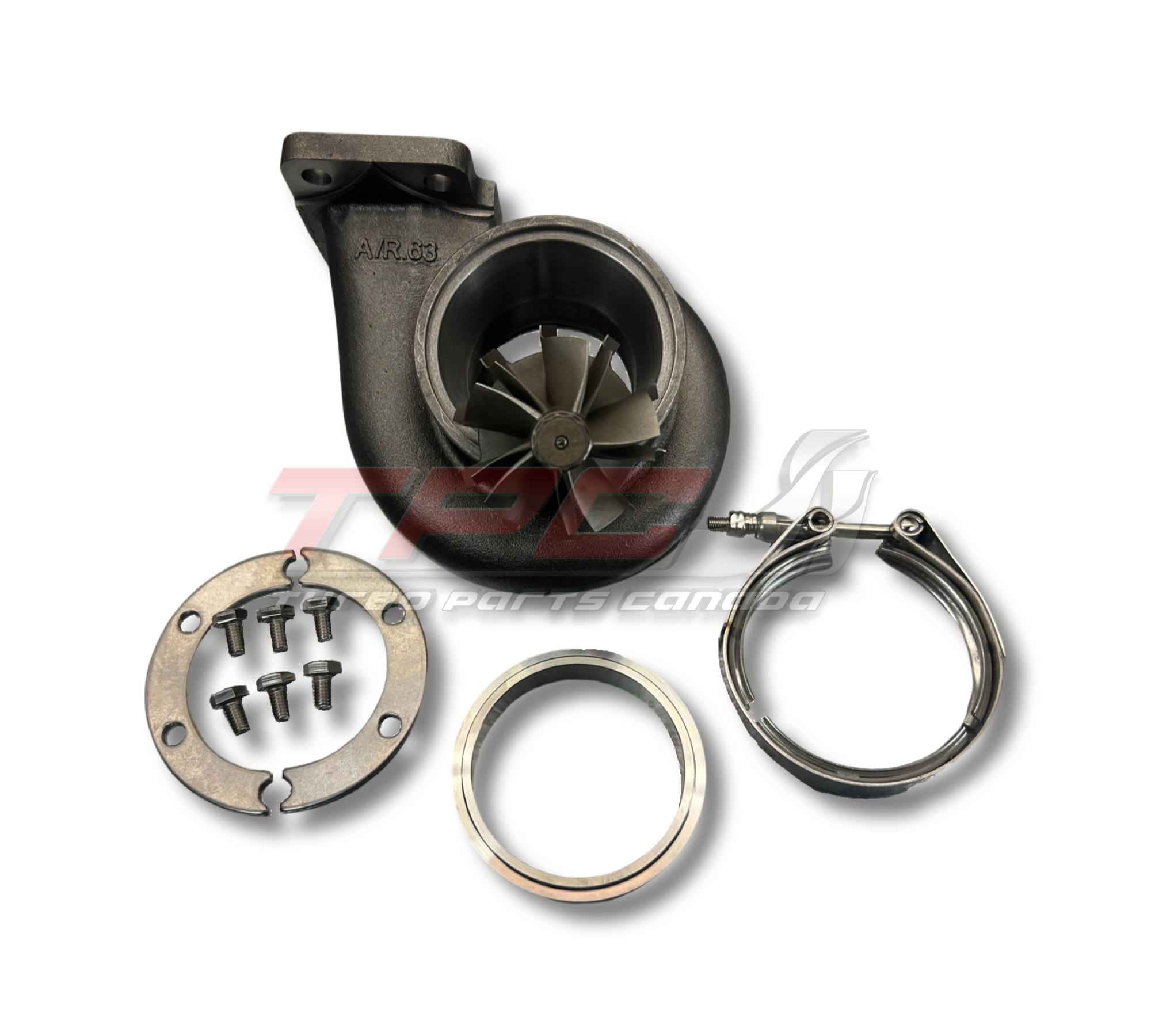

You can also buy the turbine wheel with a pre machined GT30 .64 A/R T3/V Band or a GT30 .82 A/R T3/V Band turbine housing. These kits come with the 58mm turbine wheel, pre machined turbine housing, V Band flange, clamp and the hardware to fasten your CHRA to the housing.
Other turbine housing options available, please contact service@turbopartscanada.ca for details.

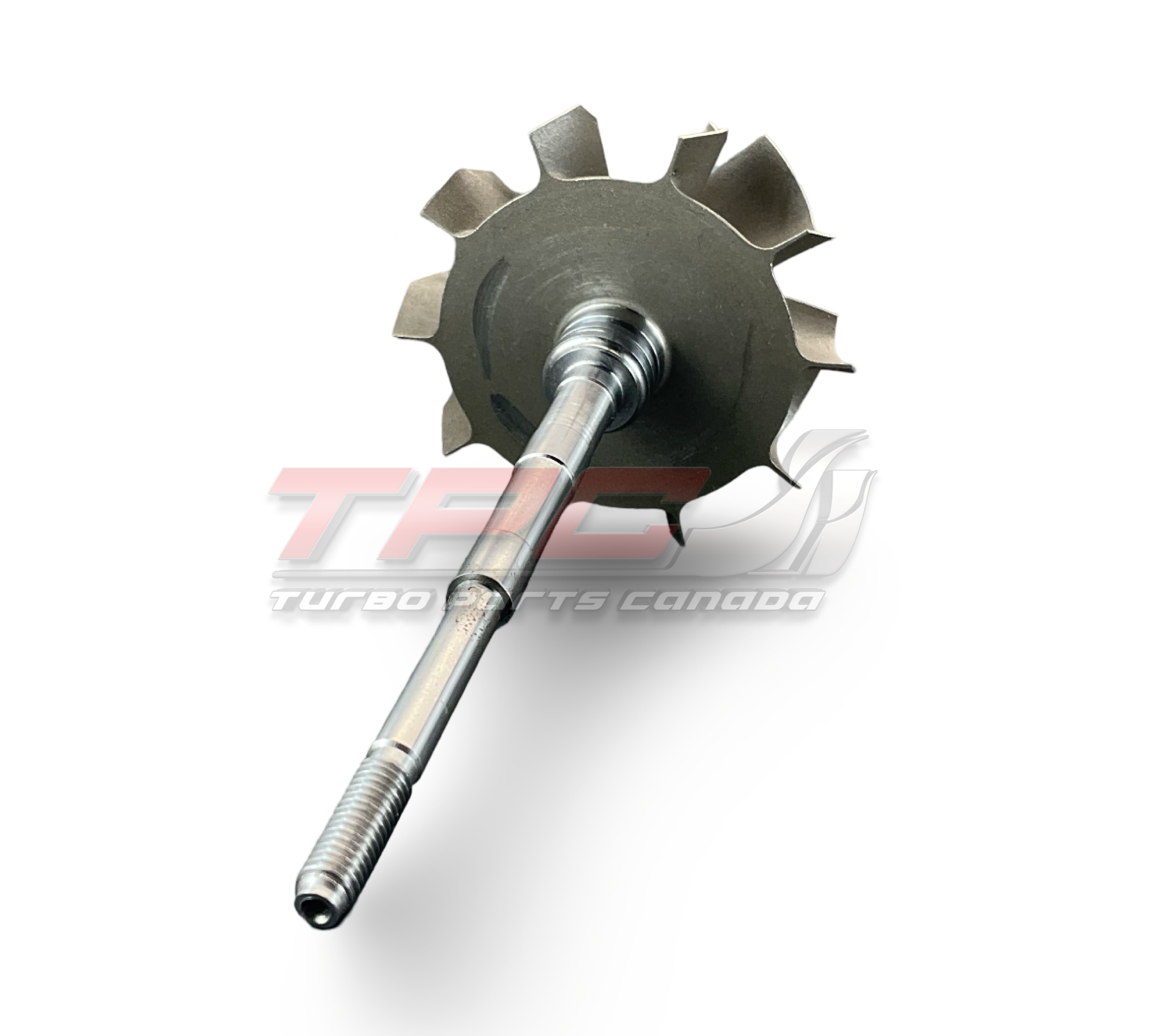

All TPC turbine wheels are made from 713C Inconel, professionally balanced and come with the appropriate shaft nut. Custom wheels are final sale unless approved by TPC staff for special circumstances. VSR Balancing is strongly recommended after making the assembly.
(2D Drawings provided upon request after purchase)
| Wheel Specs |
| Wheel Rotation |
Forward |
| Inducer Diameter A |
67.2 mm |
| Exducer Diameter B |
58.9 mm |
| Bearing Shaft Diameter D | For GT30 Ball Bearing Cartridge |
| Quill Shaft Diameter E | 6.00 mm (GT30) |
| Bearing Shaft Length G | 52 mm |
| Quill Shaft Length F | 48.1 mm |
| Blade Design | 5+5 (10) |
| CNC Machining Required |
YES |
| Application: | This turbine wheel fits any GT/GTX 30 ball bearing turbochargers. Requires CNC machining/porting of the turbine housing |
TPC offers professional in-house machining services if you require it. Contact us for any additional information or if you don't see what you're looking for.
Toll Free # 1-866-552-3477 EXT 1
Local # 1-613-868-6801
