Product Details

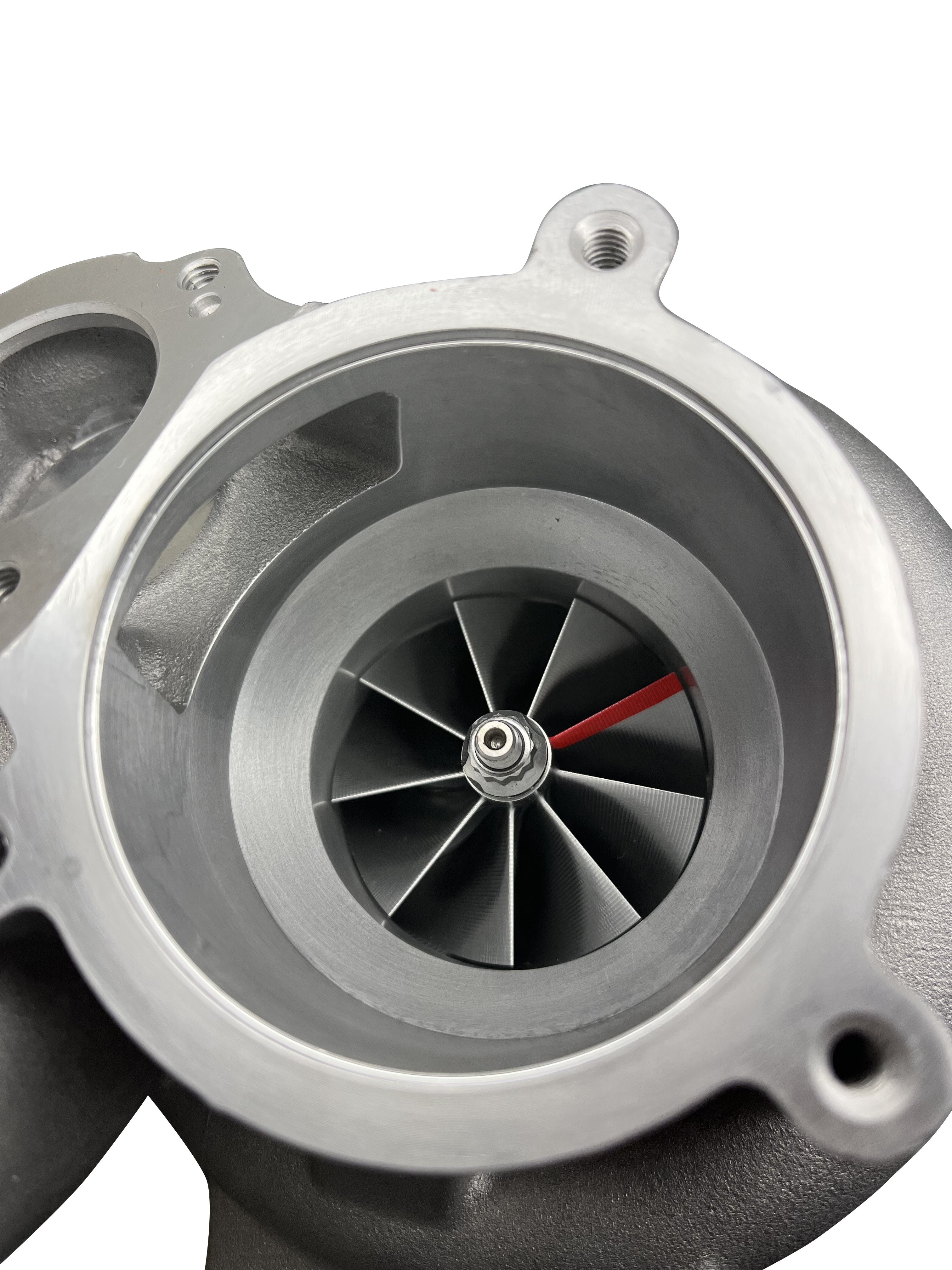

After many hours of design and months of machining TPC has made custom parts for the TPC770 to host a 58mm x 71mm 9 blade compressor wheel without having to break the bank. We mated this sweet new compressor wheel to a 9 blade G series style turbine wheel for quicker spool and better flow than the older 11 blade turbine wheel. Also included is our performance compressor cover. Dyno graph shows 602whp at 40psi with an AMAZING powerband with over 450WTQ available at 4000rpm running a United Motorsports tune. HP results will vary between car to car and dyno to dyno.
Compressor wheel Turbine wheel
TPC770 58 x 71MM TPC770 55 X 60MM

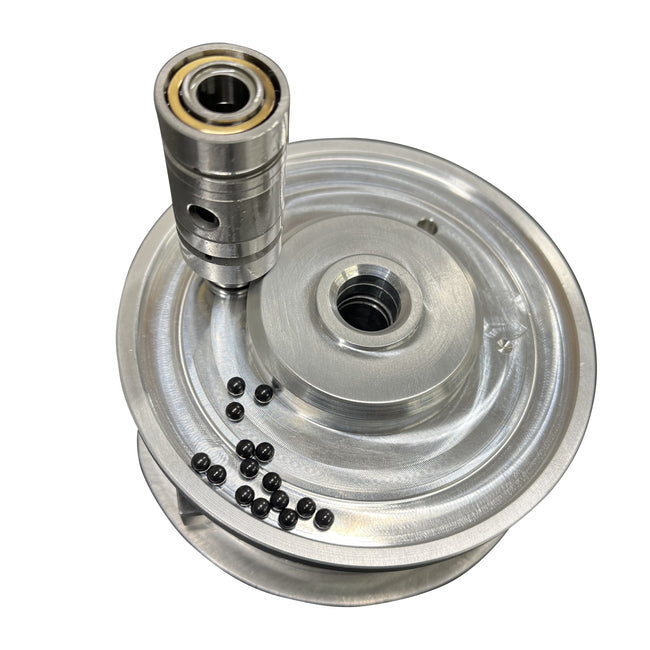

On top of having some of the best wheels in the class this turbo uses BALL BEARINGS which makes this turbo more reliable and faster spooling then it's JOURNAL BEARING counterparts.

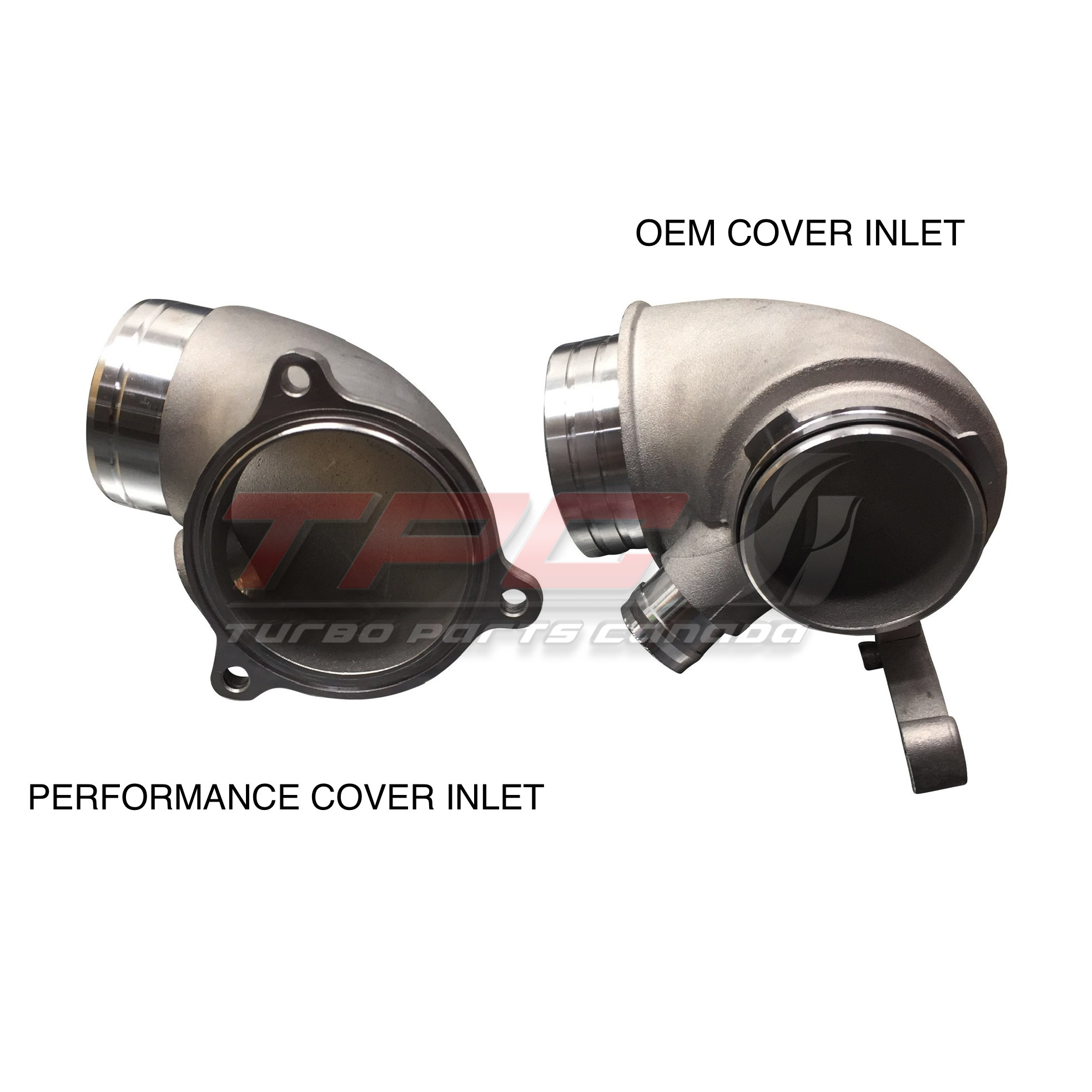

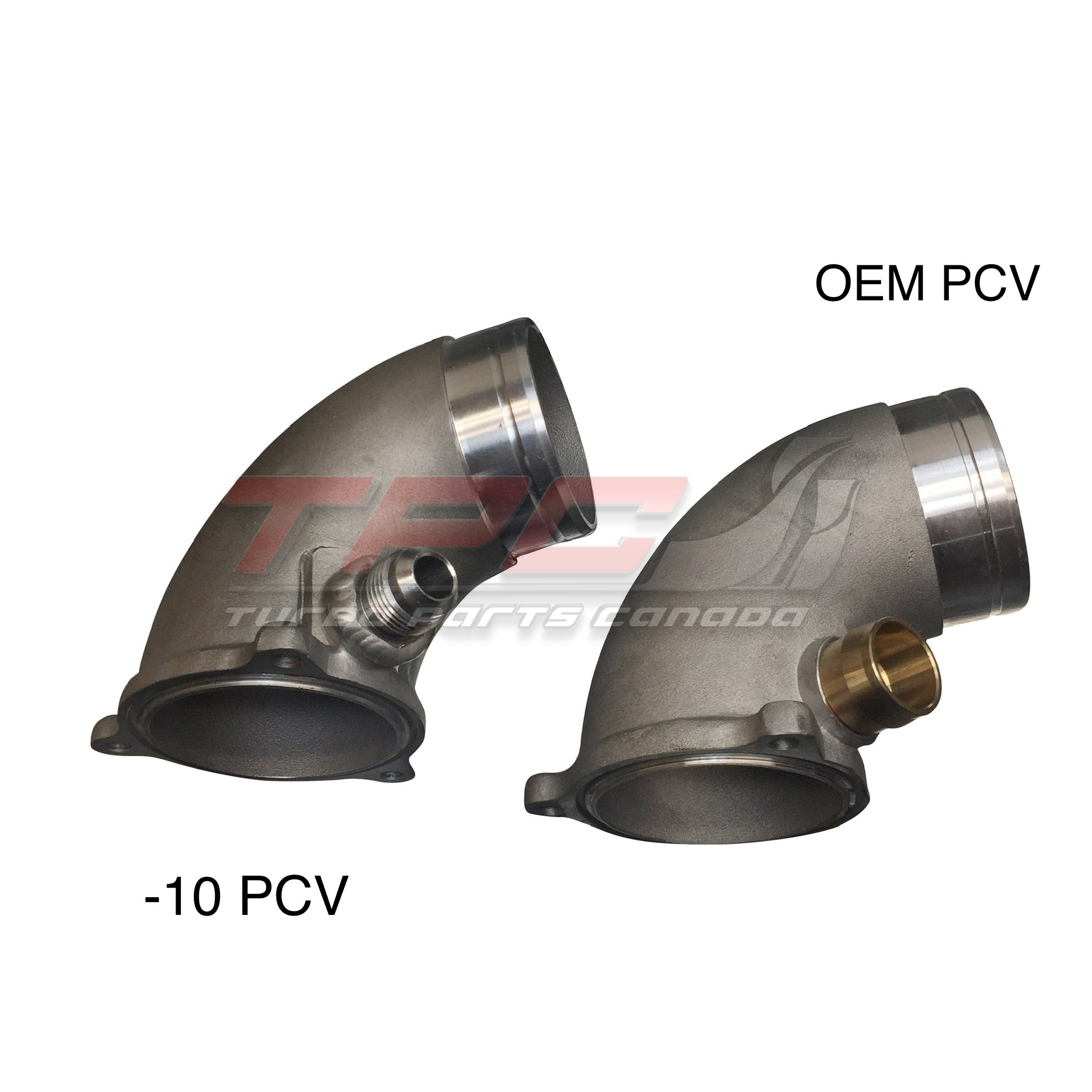

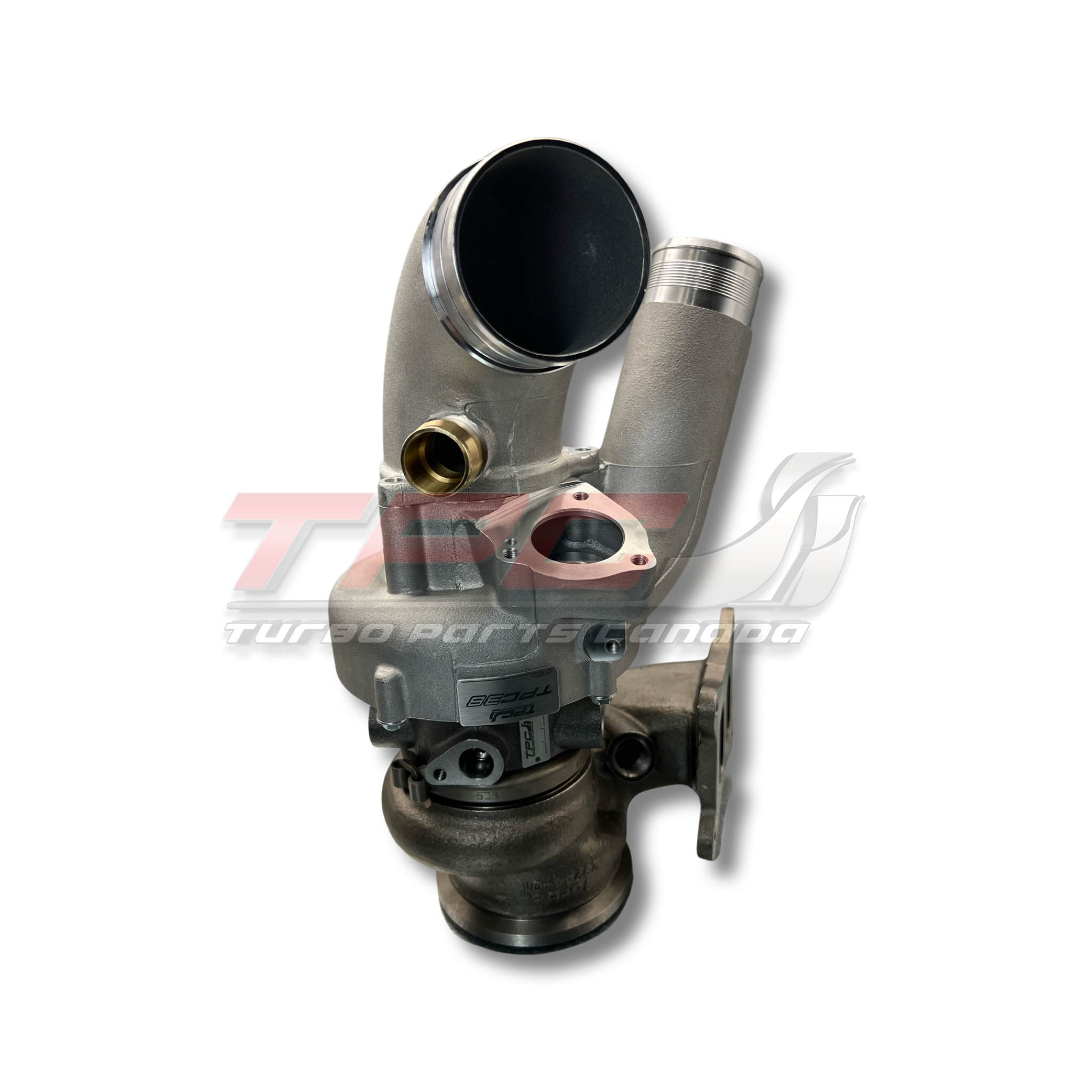

About the PERFORMANCE COVER version: The 2-piece intake system is far superior to the OEM models as shown in the pictures below. The opening at the turbo's inlet is approximately 1" larger than stock and has a nice angle inside the inlet portion direct the air flow where it needs to go. The inlet on the performance cover is also available with an OEM style PCV fitting or a -10AN PCV fitting for easier catch line installation. The result means better air delivery to the compressor wheel.

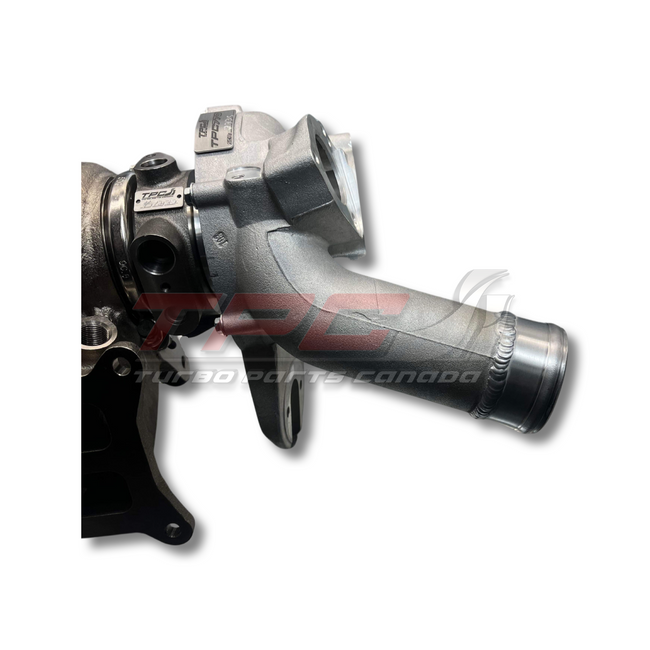

With our upgraded compressor housing, it comes with either a 2" outlet on the compressor housing for people running an OEM sized TMD or a 2.25" outlet for people with a discharge pipe from brands such as Neuspeed, AFE, and EQT that came with a LARGER TMD. If you are unsure as to the size of the turbo muffler delete, you are running measure the OD at the serrated portion of the TMD.
Note that the current intake elbow is OEM sized on the intake side to easily bolt up to any intake that attaches to an OEM size turbo inlet pipe. We are developing a 3" elbow for even better flow over our already high flowing inlet.
Please note that those with APR catch can kit, the line requires slight trimming to fit with our OEM PCV when choosing the performance cover option.
WHEN ORDERING THE PERFORMANCE COVER PLEASE PUT WHAT SIZE OUTLET (OEM/2"or 2.25"Upgraded) YOU WOULD LIKE IN THE NOTES SECTION OF THE CART.
High Speed balanced in house on our VSR balancing machine.

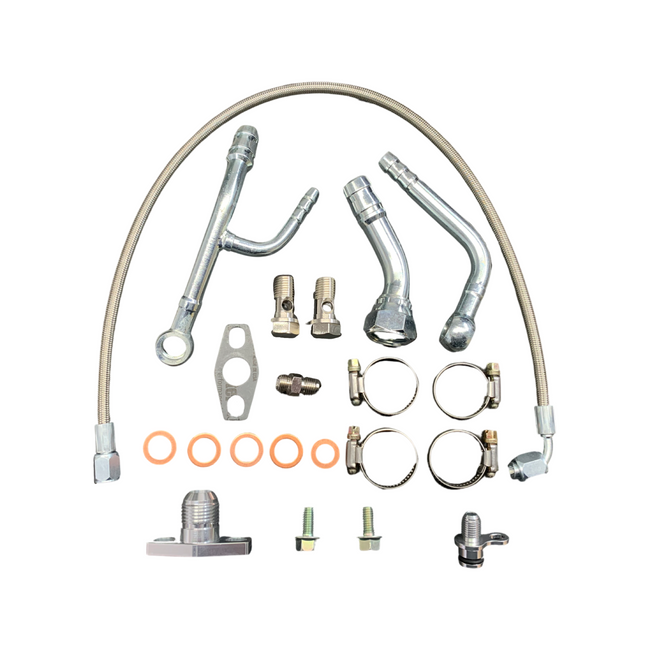

INSTALL KIT INCLUDED WITH TURBO
OEM Part Number |
TPC770 BB MQB |
Compressor Wheel |
58MM x 71MM 9 BLADE |
Turbine Wheel |
55MM x 60MM 9 BLADE |
Bearing Type Options |
Ball Bearing |
Engine |
EA888.3 |
Turbocharger Upgrades |
Upgraded Compressor & Turbine Wheel, upgraded bearings and seals. Performance cover comes with several options for outlet size. |
Potential Power |
600 WHP With Supporting Mods |
Install Hardware Included |
YES |
VSR Balanced |
YES |
Applications |
Volkswagen MK7 Golf R 2015-2017 2.0 Turbo Volkswagen MK7 GTI 2015-2017 2.0L Turbo |
**PLEASE CALL TO CHECK ON BUILD TIMES**
Comes with a 1 year warranty
New bearings, New Seals, High speed balancing and premium packaging.
We ship World wide!
Check out our other website listings for more turbos available. If you don't see what you need just give us a call or email us.
Toll Free # 1-866-552-3477 EXT 1
Local # 1-613-868-6801
