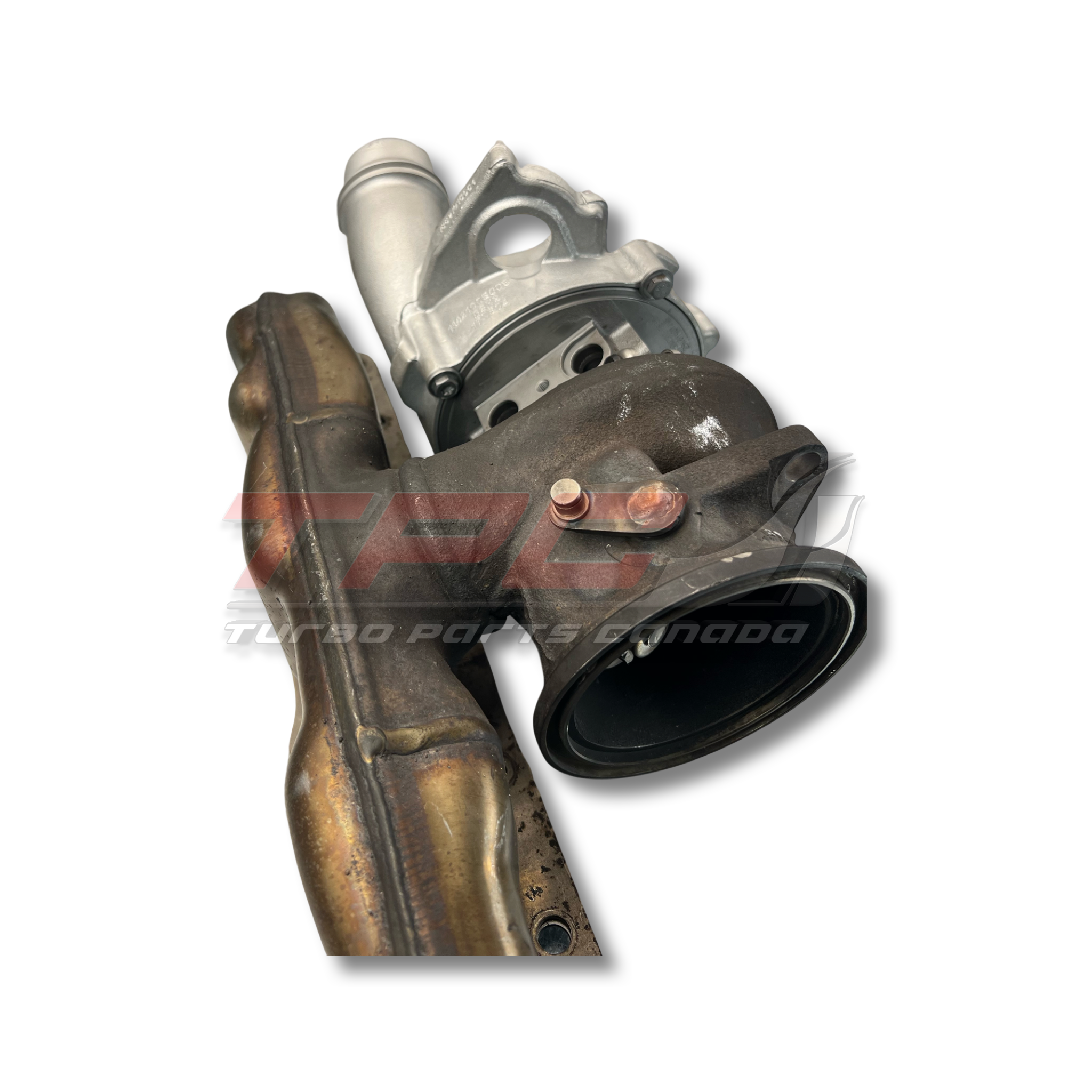

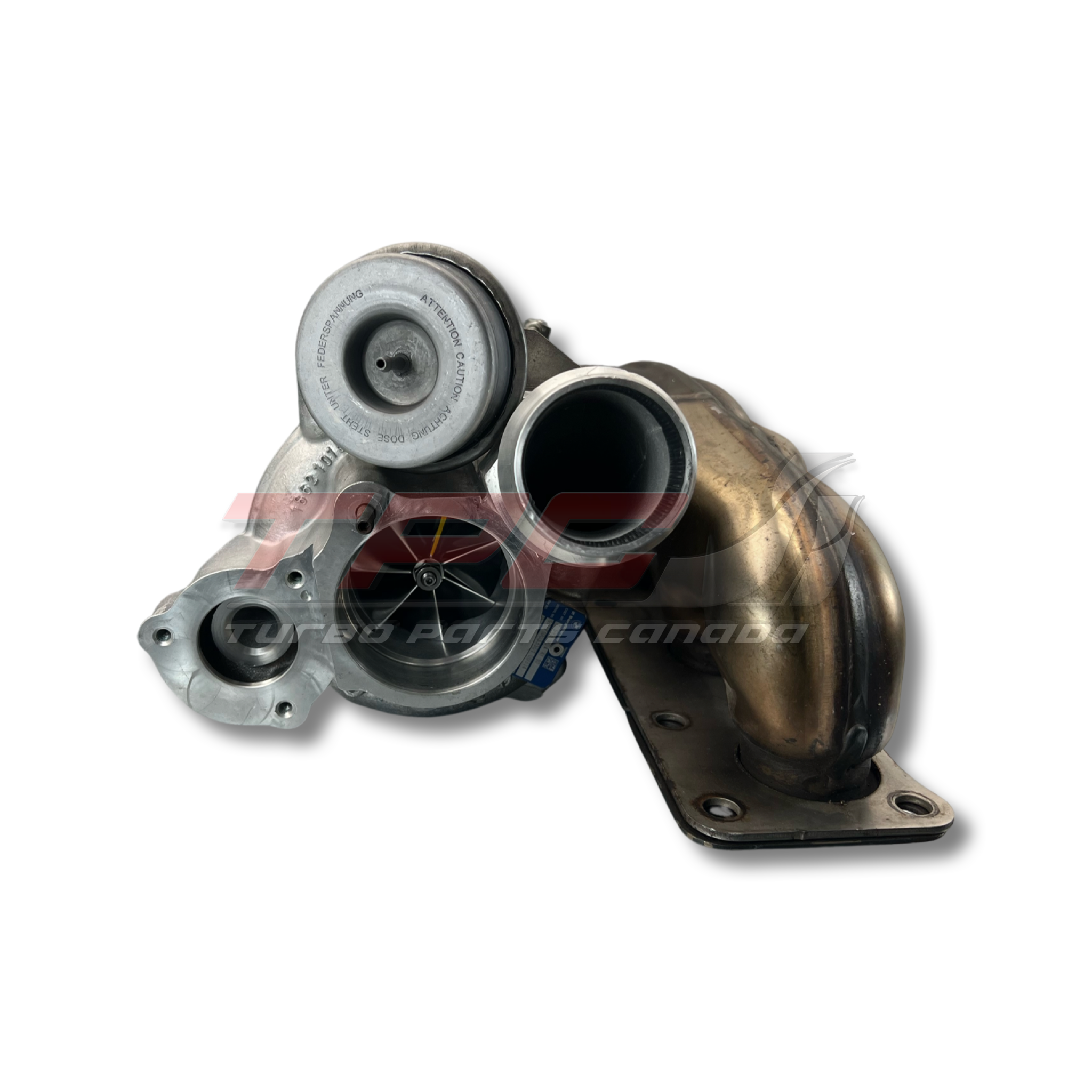

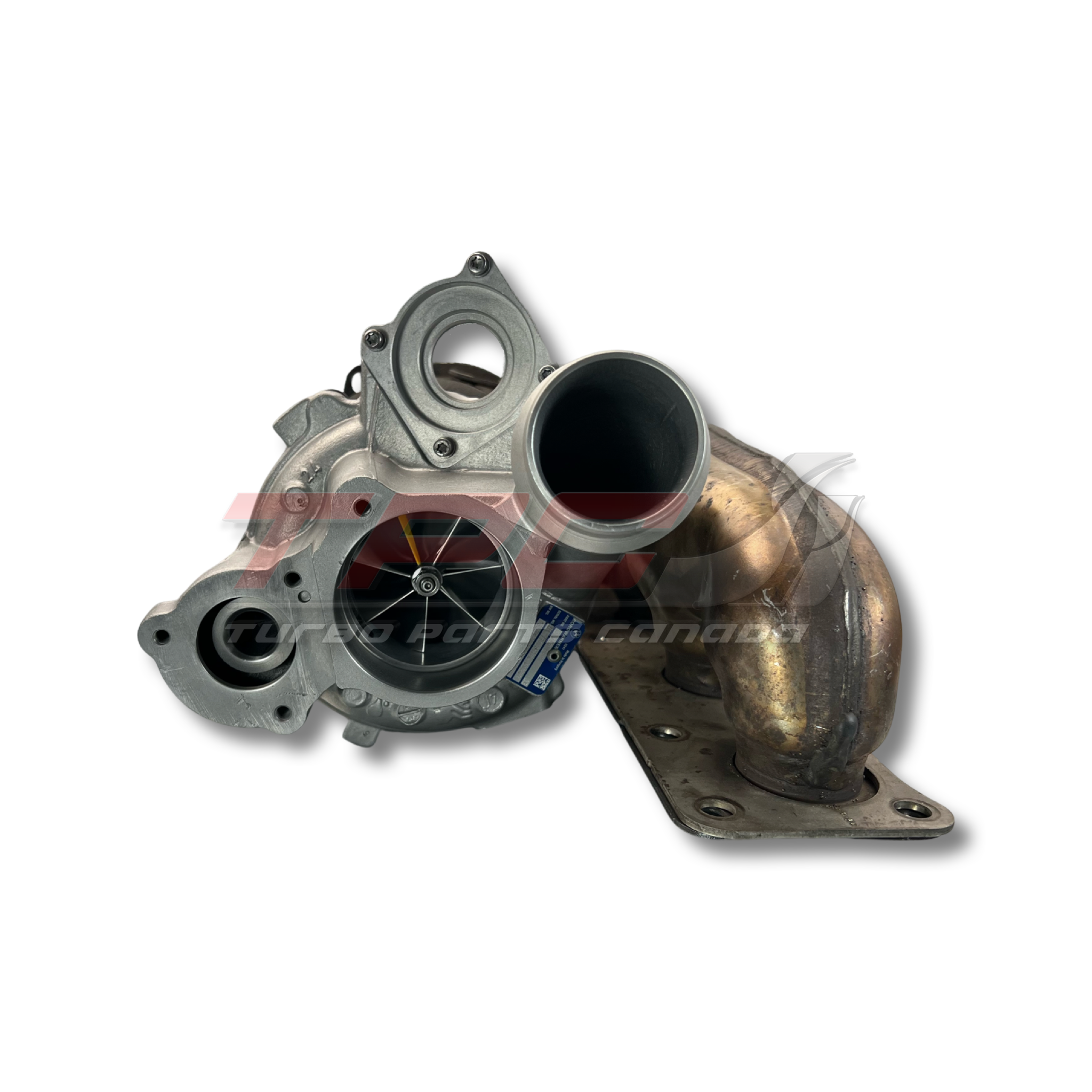

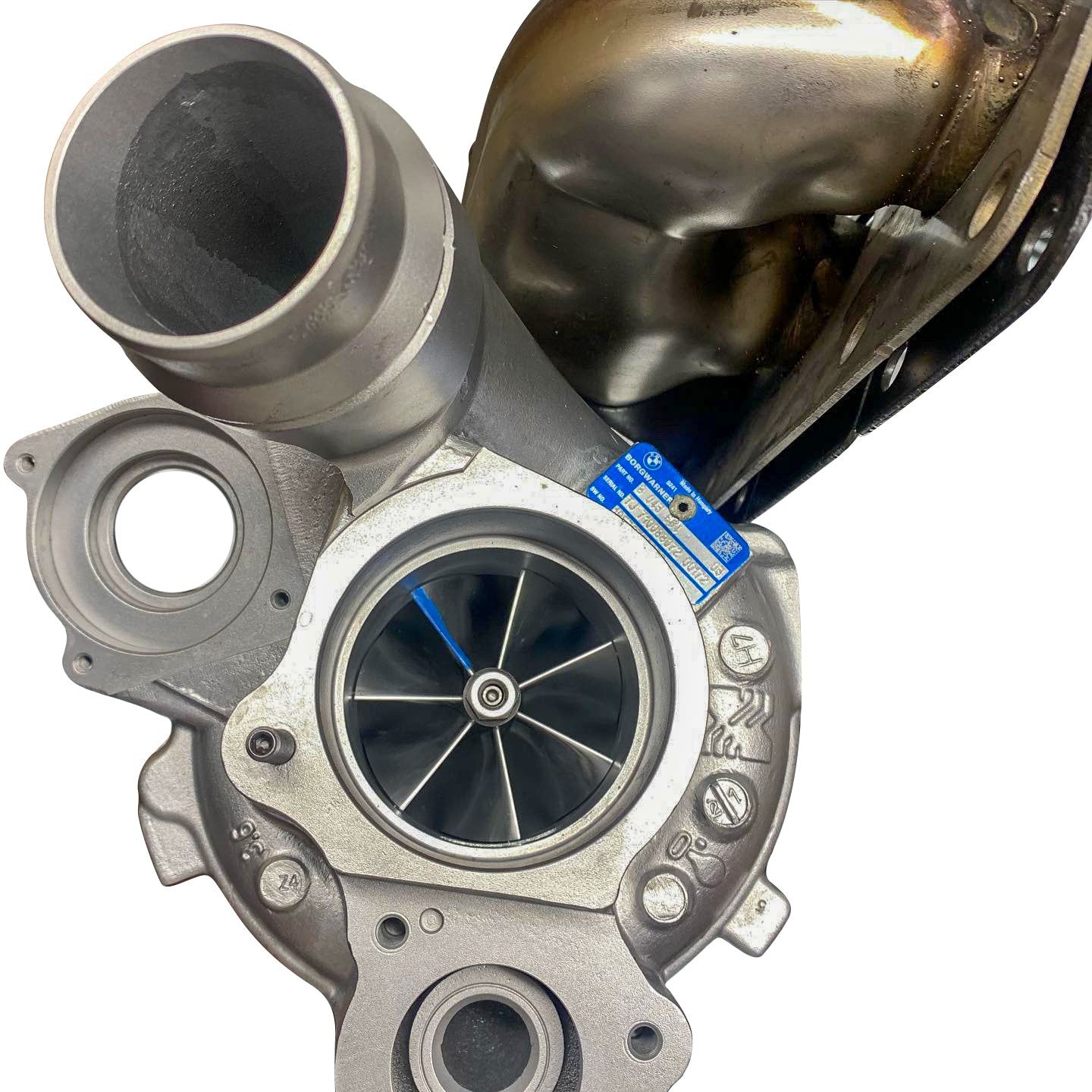

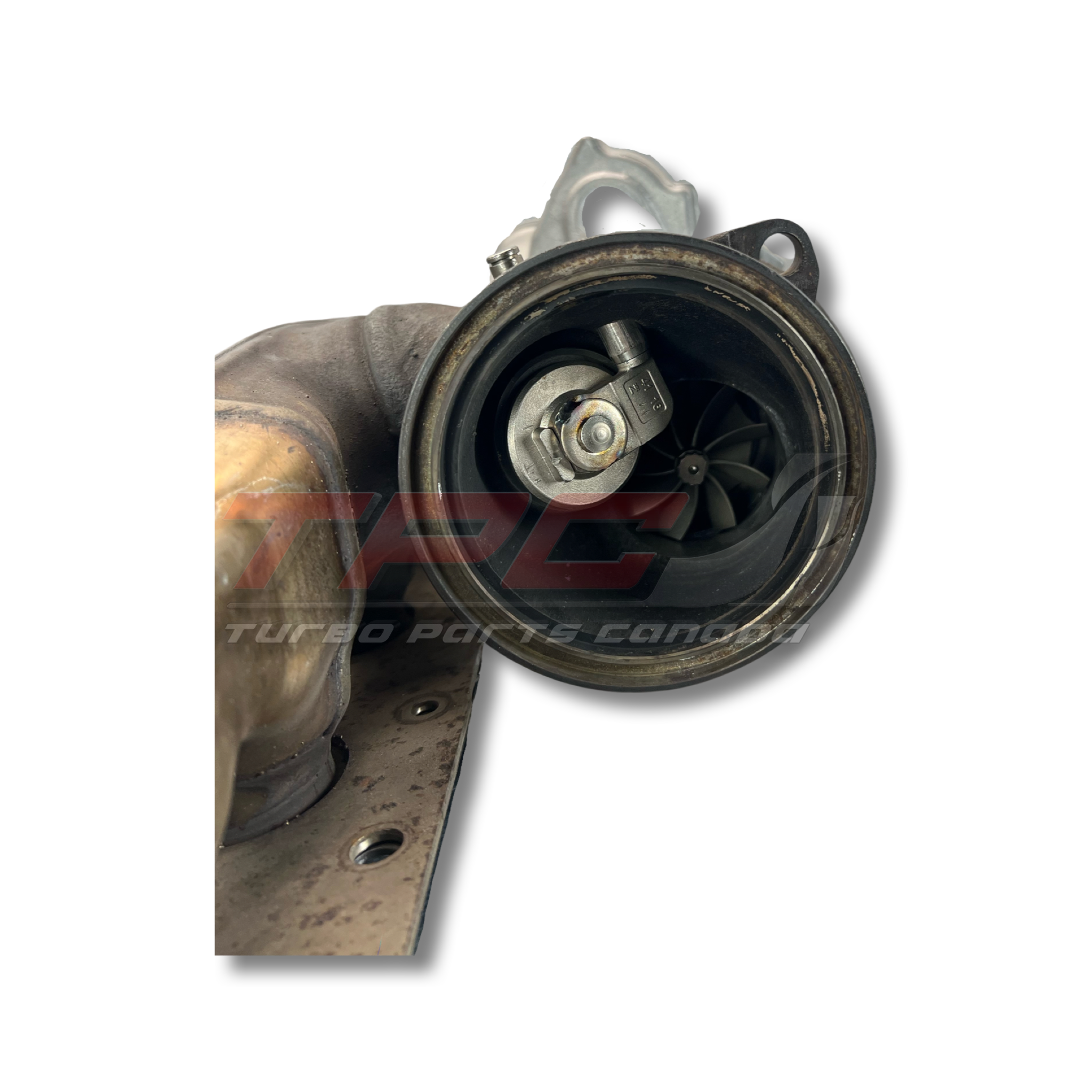

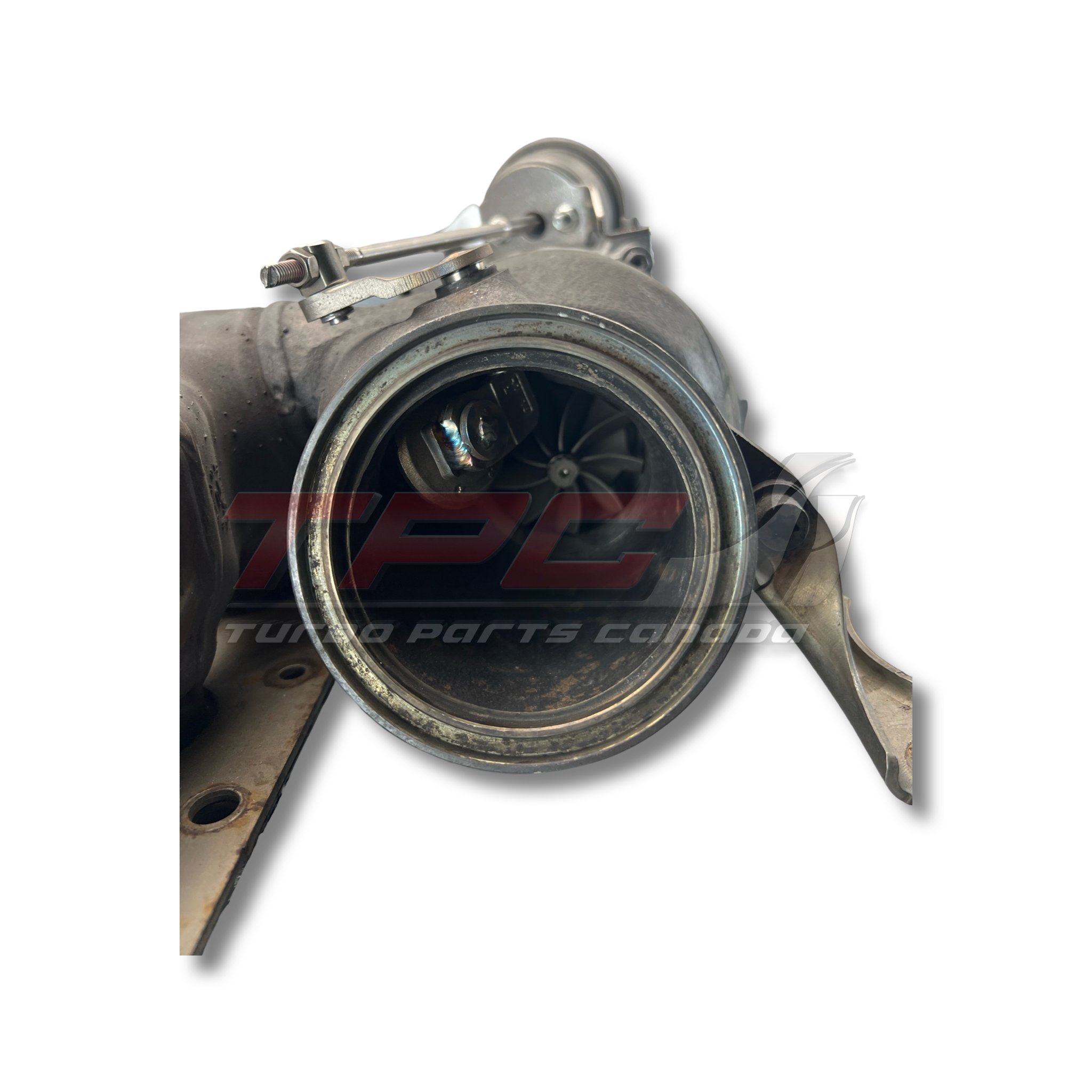

TPC Stage 2 N55 Turbocharger

Regular price $1,999.00 USD Sale

TPC has developed a Stage 2 turbo that directly competes with the performance of the well-known Pure Stage 2 without the hefty price tag.  Attached bellow is our Stage 2 dyno graphs on MS109 race fuel which made a consistent...

PLEASE CONTACT US FOR BUILD TIMES BEFORE ORDERING

Product Tags: BMW, N55

Product Details

TPC has developed a Stage 2 turbo that directly competes with the performance of the well-known Pure Stage 2 without the hefty price tag.

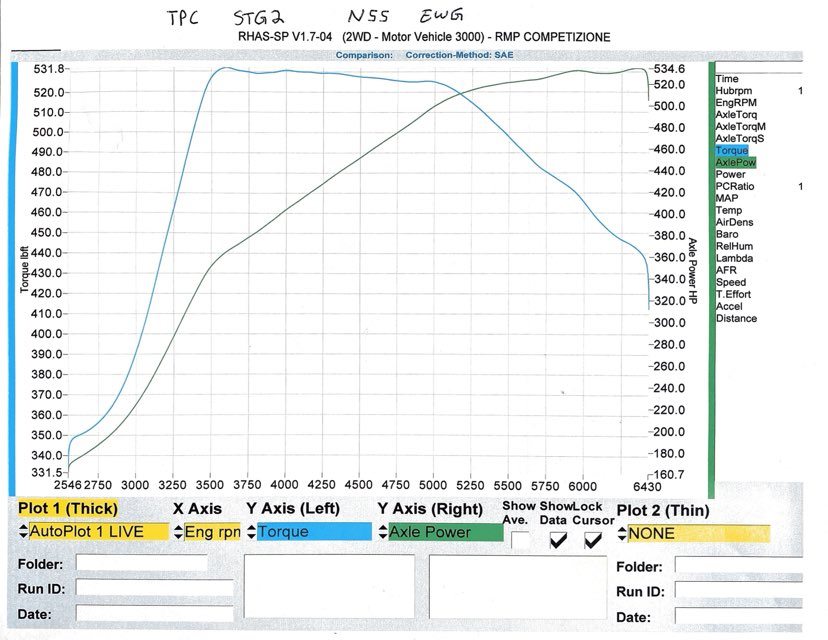

Attached bellow is our Stage 2 dyno graphs on MS109 race fuel which made a consistent powerband with 530whp. The other one we will post shortly was done on 93 oct pump gas with small boost leaks and made 450+ to the wheels with an OTS map.

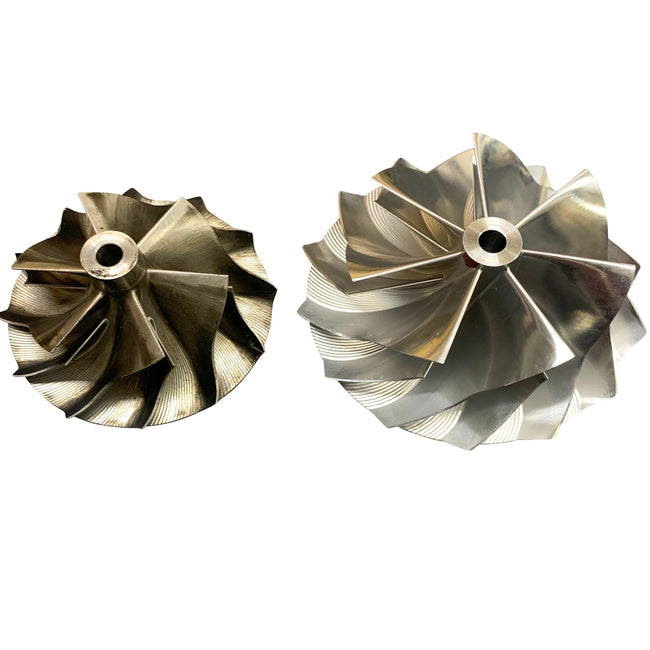

This extremely similar power was done with a smaller compressor wheel then the Pure Stage 2 while both using the same turbine wheel. This means the 58mm turbine wheels are maxed out no matter how big the compressor wheel is. Bigger isn't always better!

TPC Stage 2 compressor wheel inducer: 59mm

Pure Stage 2 compressor wheel inducer: 62mm

Both use the same 58/59mm turbine wheel

High Speed balanced in house on our VSR balancing machine.

This turbo includes our wastegate repair, pneumatic wastegate equipped cars may experience some rattle, we do not cover this under warranty.

For those with electronic wastegate actuator you must reuse your actuator.

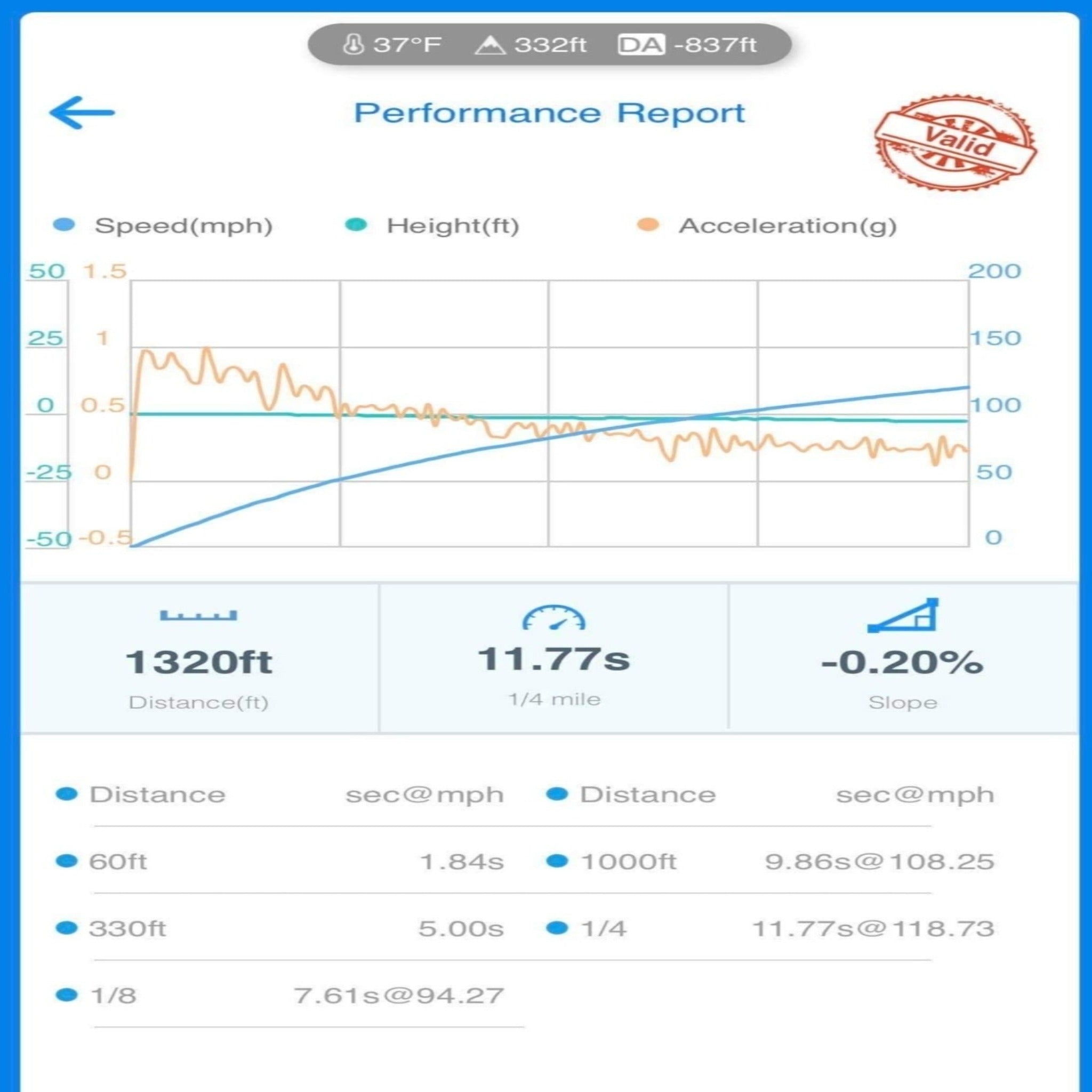

Dragy time posted is on 93 octane. File by

Mhd tuning

Pure Stage 2 ots map on 93oct tune

@jake_slowf30



OEM Part Number

11657636424



Compressor Wheel

59MM  7+7 BLADE

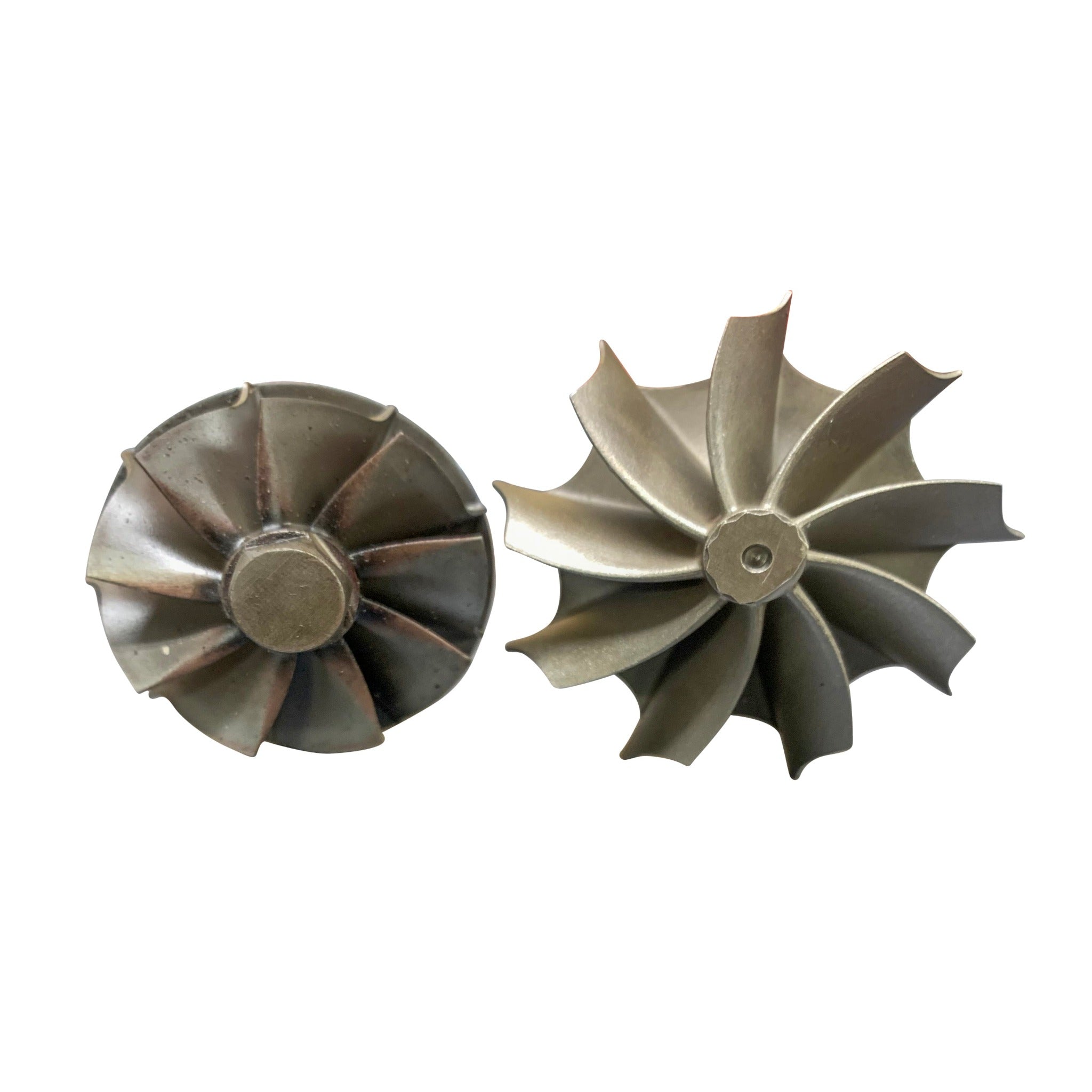

Turbine Wheel

59MM HIGH FLOW 9 BLADE

Bearing Type Options

 Journal Bearing (Water Cooled)

Engine

N55

Turbocharger Upgrades

Upgraded Compressor & Turbine Wheel,  upgraded bearings and seals. CNC work performed on both hot & cold side to allow the larger wheels to be installed.

Potential Power

500+WHP With Supporting Mods

Install Hardware Included

NO

VSR Balanced

YES

Applications

1 Series
E82 / E88 (08-13) > 135i N55 (11-13)
E82 / E88 (08-13) > 135is N55 (11-13)
F22 / F23 (2014-2021) > M235i
3 Series
E90 / E91 / E92 / E93 (06-13) > 335i N55 (11-13)
E90 / E91 / E92 / E93 (06-13) > 335xi N55 (11-13)
3 Series
F30 / F31 / F34 (2012-2019) > 335i
F30 / F31 / F34 (2012-2019) > 335i xDrive
F30 / F31 / F34 (2012-2019) > Hybrid 3
X1 Series
E84 X1 (2013-2015) > X1 35i xDrive



**PLEASE CALL TO CHECK ON BUILD TIMES**

Comes with a 1-year warranty

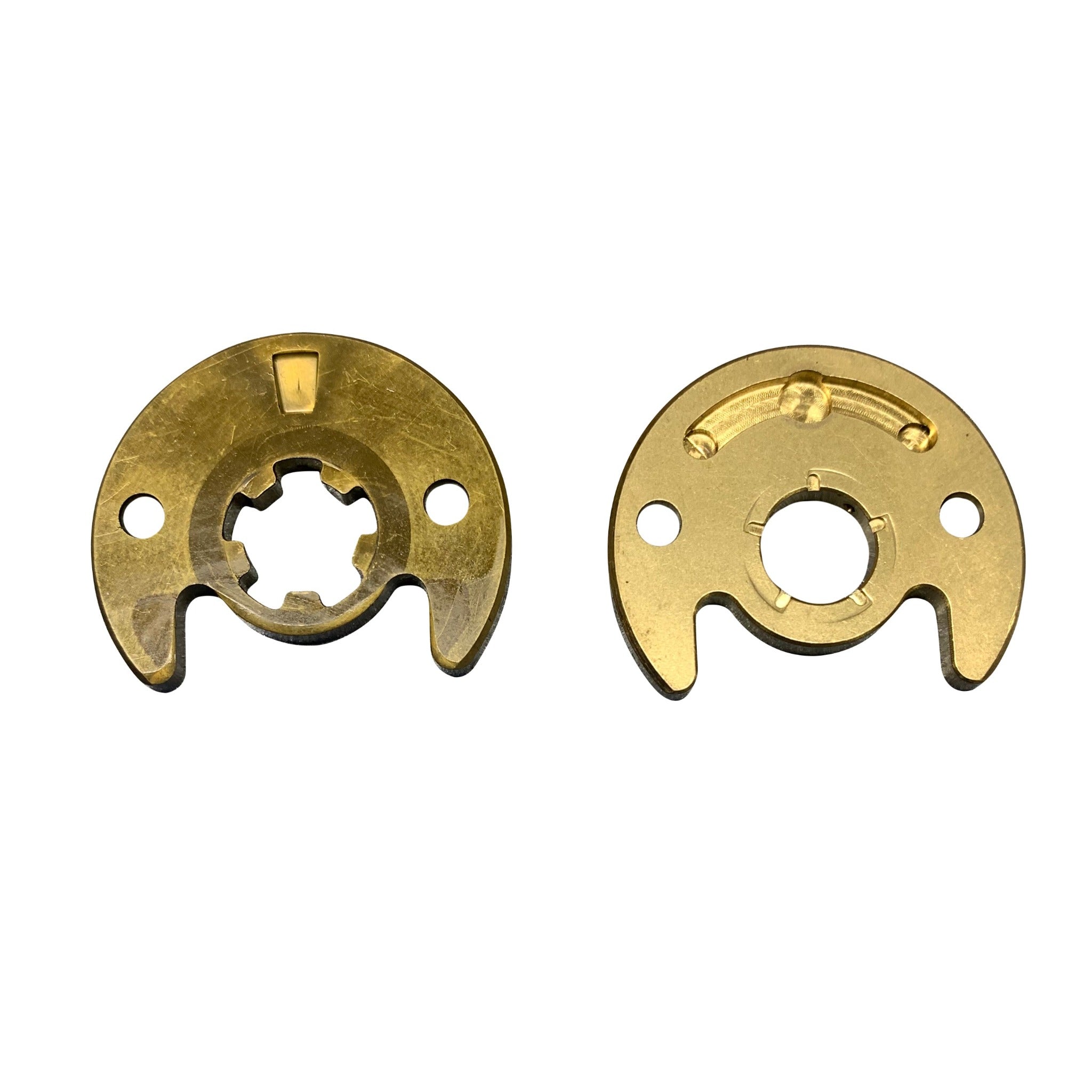

New bearings, New Seals, High speed balancing and premium packaging.

We ship Worldwide!

Toll Free # 1-866-552-3477  EXT 1

Local #      1-613-868-6801
