PRODUCT DETAILS

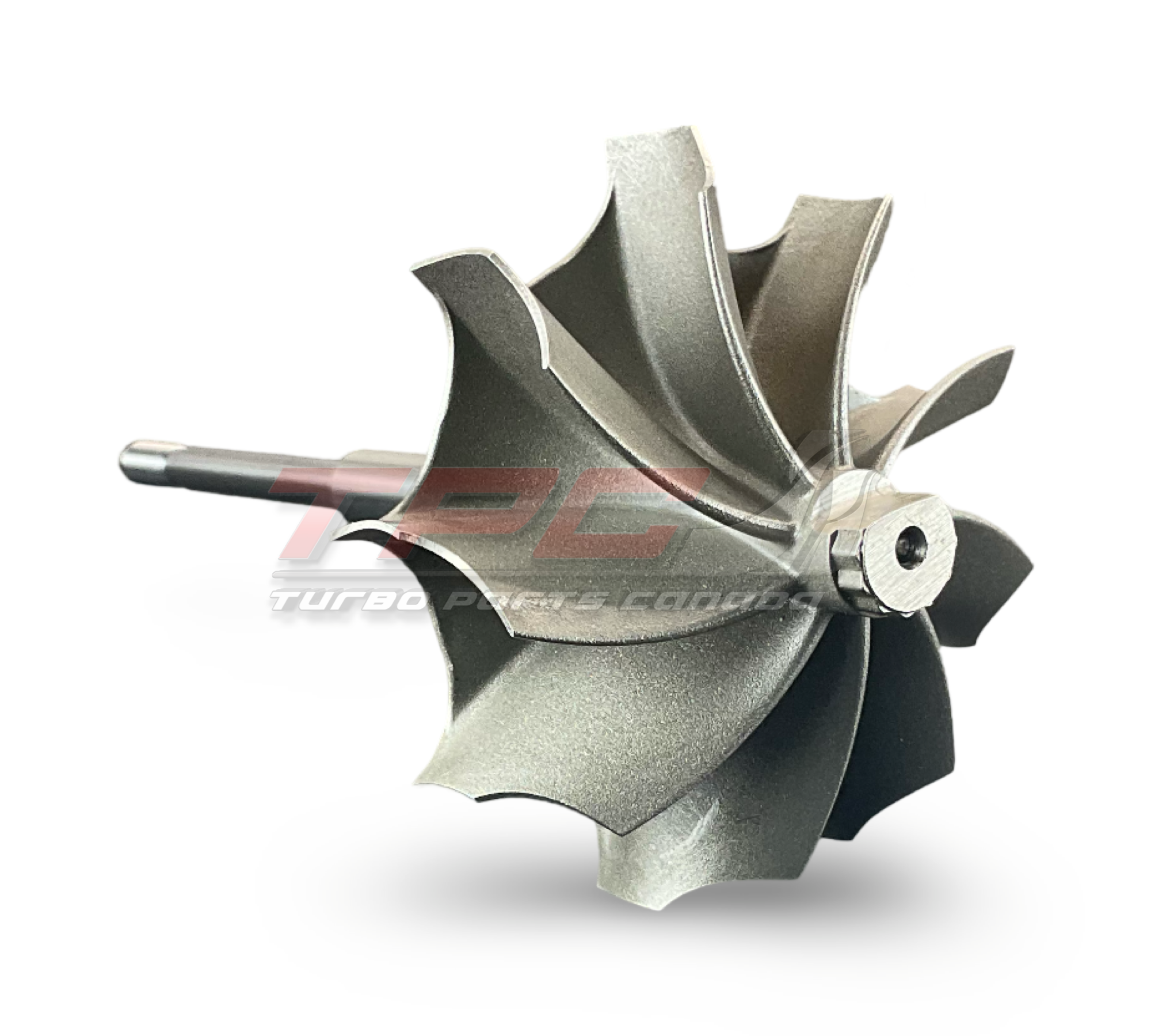

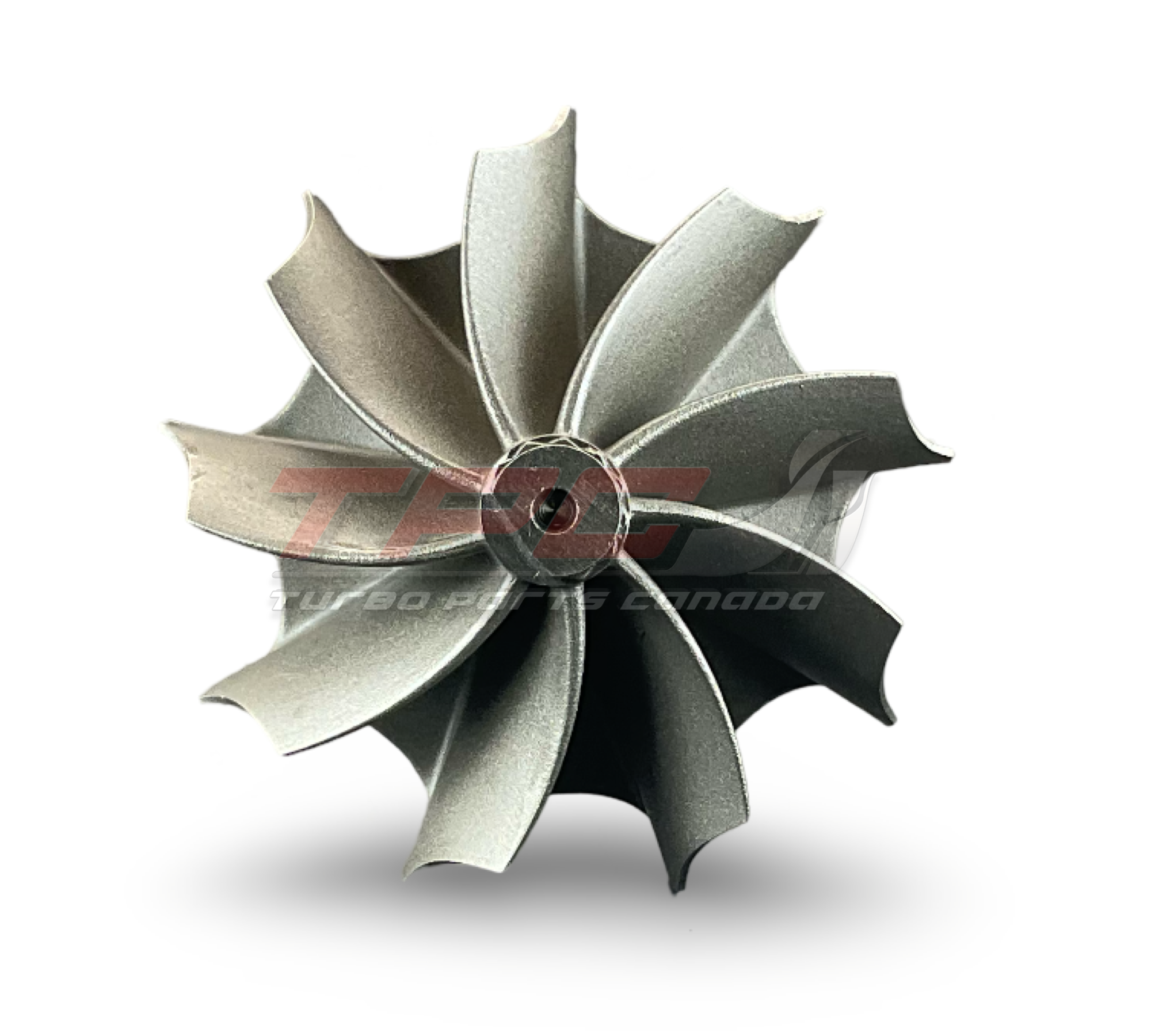

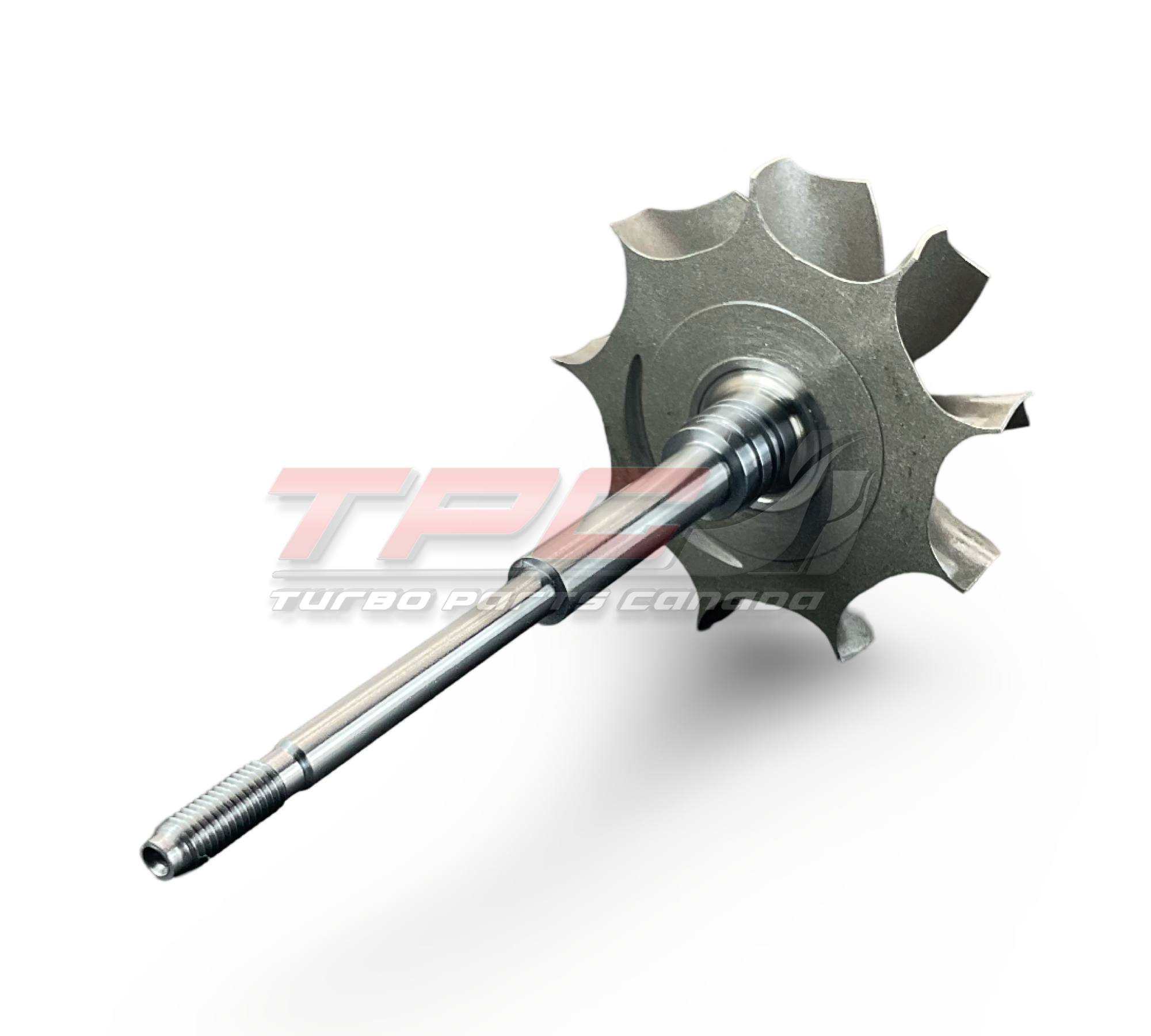

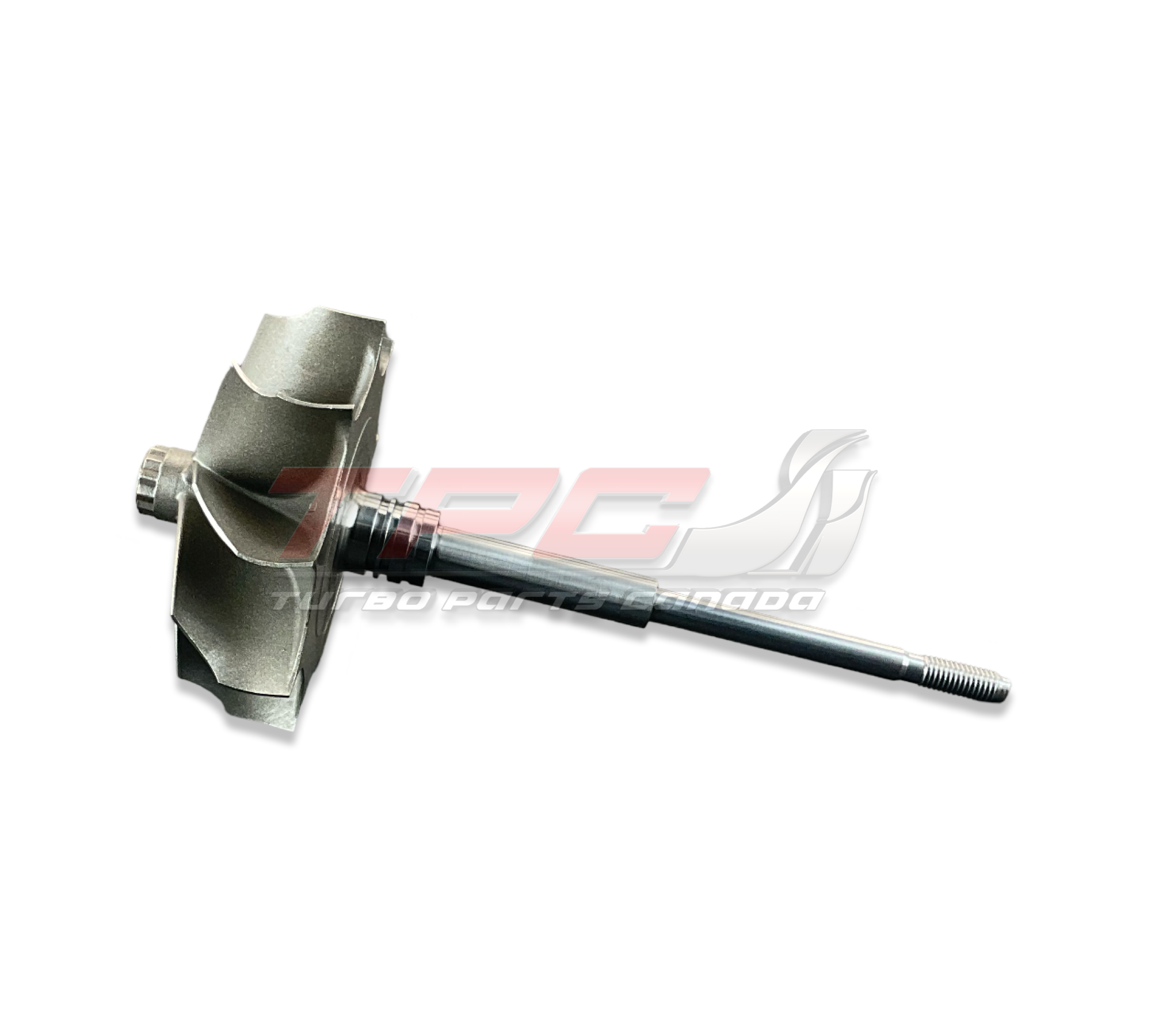

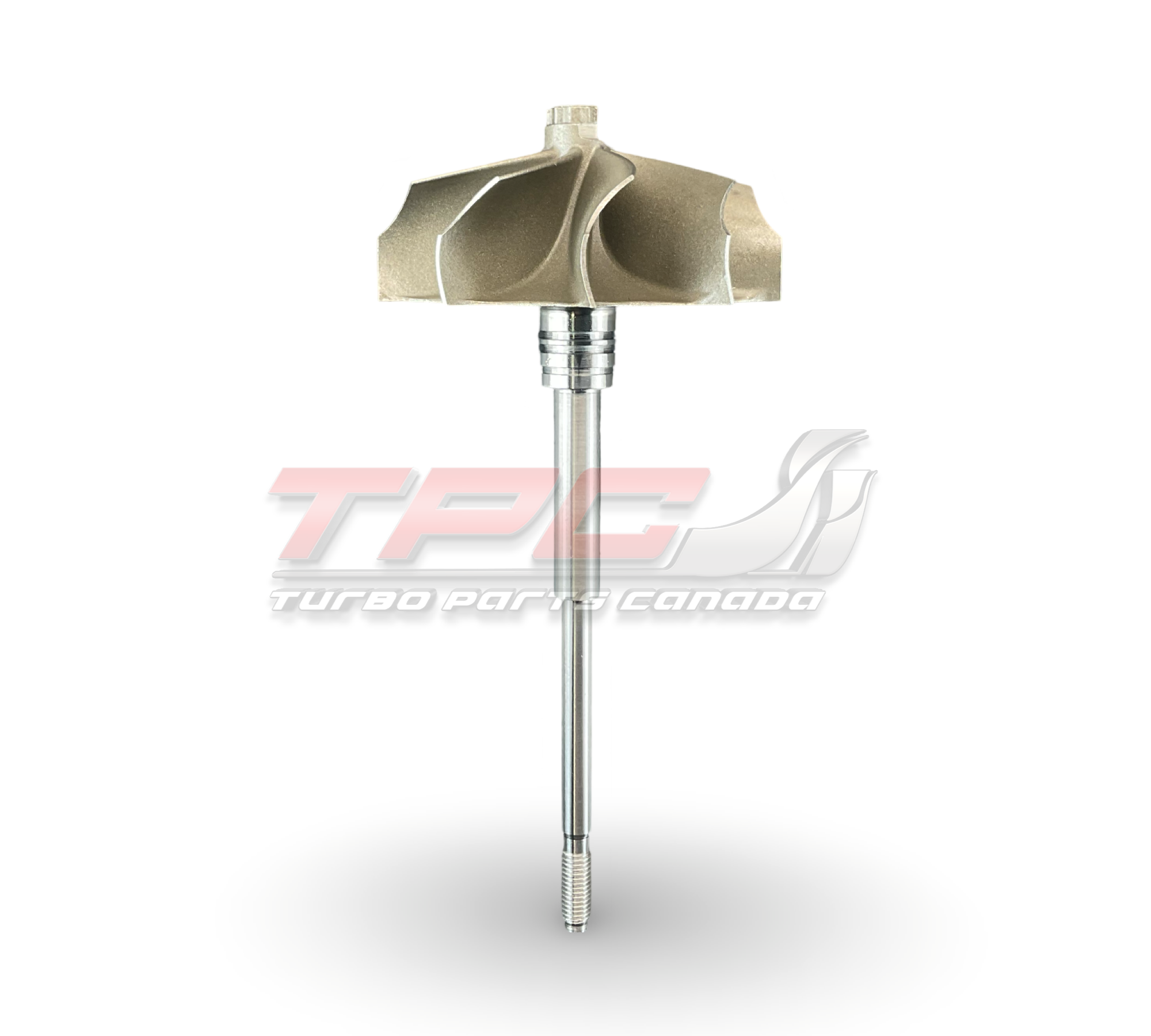

xTPC now offers our custom made turbine wheel upgrade for the Audi RS3/TTRS with DAZA 2.5L engine. This upgraded turbine features a reverse 59mm 9 blade head with the OEM B03G shaft specs for a great hybrid turbocharger.
Only for experienced turbo builders, machinists and mechanics. CNC machining required for turbine housing fitment.
If you are unsure if this will fit your application, please reach out to us at service@turbopartscanada.ca
All TPC turbine wheels are made from 713C Inconel, professionally balanced and come with the appropriate shaft nut. Custom wheels are final sale unless approved by TPC staff for special circumstances. VSR Balancing is strongly recommended after making the assembly.
(2D Drawings provided upon request after purchase)

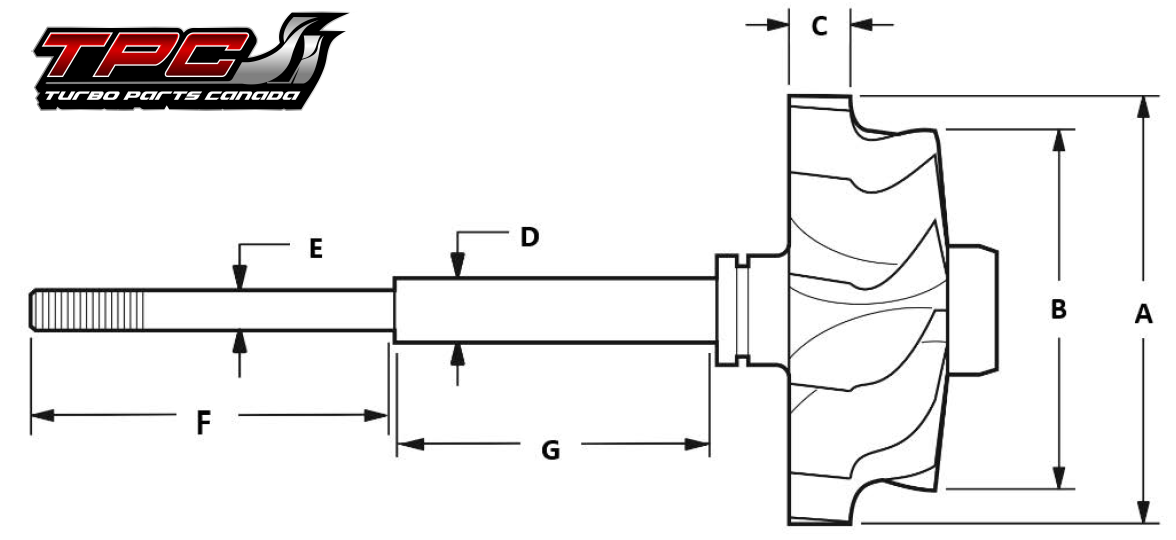

| Wheel Specs |
| Wheel Rotation |
Reverse |
| Inducer Diameter A |
67.2 mm |
| Exducer Diameter B |
58.8 mm |
| Bearing Shaft Diameter D | 8.48 mm (JB) |
| Quill Shaft Diameter E | 5.61 mm (B03G) |
| Bearing Shaft Length G | 35.85 mm |
| Quill Shaft Length F | 58 mm |
| Blade Design | 9 |
| CNC Machining Required |
YES |
| Application: | This turbine wheel fits the Audi RS3/DAZA 2.5L Engine. Requires CNC machining/porting of the turbine housing |
TPC offers professional in-house machining services if you require it. Contact us for any additional information or if you don't see what you're looking for.
Toll Free # 1-866-552-3477 EXT 1
Local # 1-613-868-6801
