PRODUCT DETAILS
xFord's move to the 6.7L Scorpion Powerstroke meant more top and low end power as well as better torque throughout the power band. Ford engineered this engine in-house to be the cleanest and most powerful Powerstroke engine ever. One way it was able to achieve those gains over the prior generation 6.4L Powerstroke (equipped with a massive BorgWarner dual turbocharger system) was through the use of the SST / Scorpion VNT dual boost single SST3266V Garrett turbocharger. The first of its kind, this Garrett turbocharger contains the world's first dual-sided compressor wheel. This innovation enables two-stage engine boosting out of a single turbocharger, essentially allowing the single sequential turbocharger to act like a dual turbocharger system with less weight and greater reliability. Traditional variable vane turbochargers don't require a wastegate and prevent over-speeding by opening vanes in the turbine housing. This unit, in contrast, uses variable vane technology to achieve desirable and quick spooling, while also using a wastegate to eliminate possible over-speeding. Early units supplied to Ford featured a ceramic ball bearing system that was prone to fail, and this unit has been redesigned to incorporate a steel ball bearing to address that issue once and for all.
- Low friction ball bearing system reduces mechanical loss and improves responsiveness and fuel economy
- Wastegate-on-VNT bypass valve allows a high power point by bypassing the turbo
- Steel ball bearing ensures efficient and long-lasting operation and has been redesigned from earlier ceramic ball bearing units
- Pedestal mount is not included. Ford suggests reusing the stock mount
- When this stock turbocharger fails, it often blows seals and allows oil into the intercooler. We suggest at a minimum an intercooler inspection and possibly a replacement at the same time the turbocharger is replaced.
- Your complete and rebuildable core must be received within 30 days in order to receive a core refund
Guaranteed exact fit.

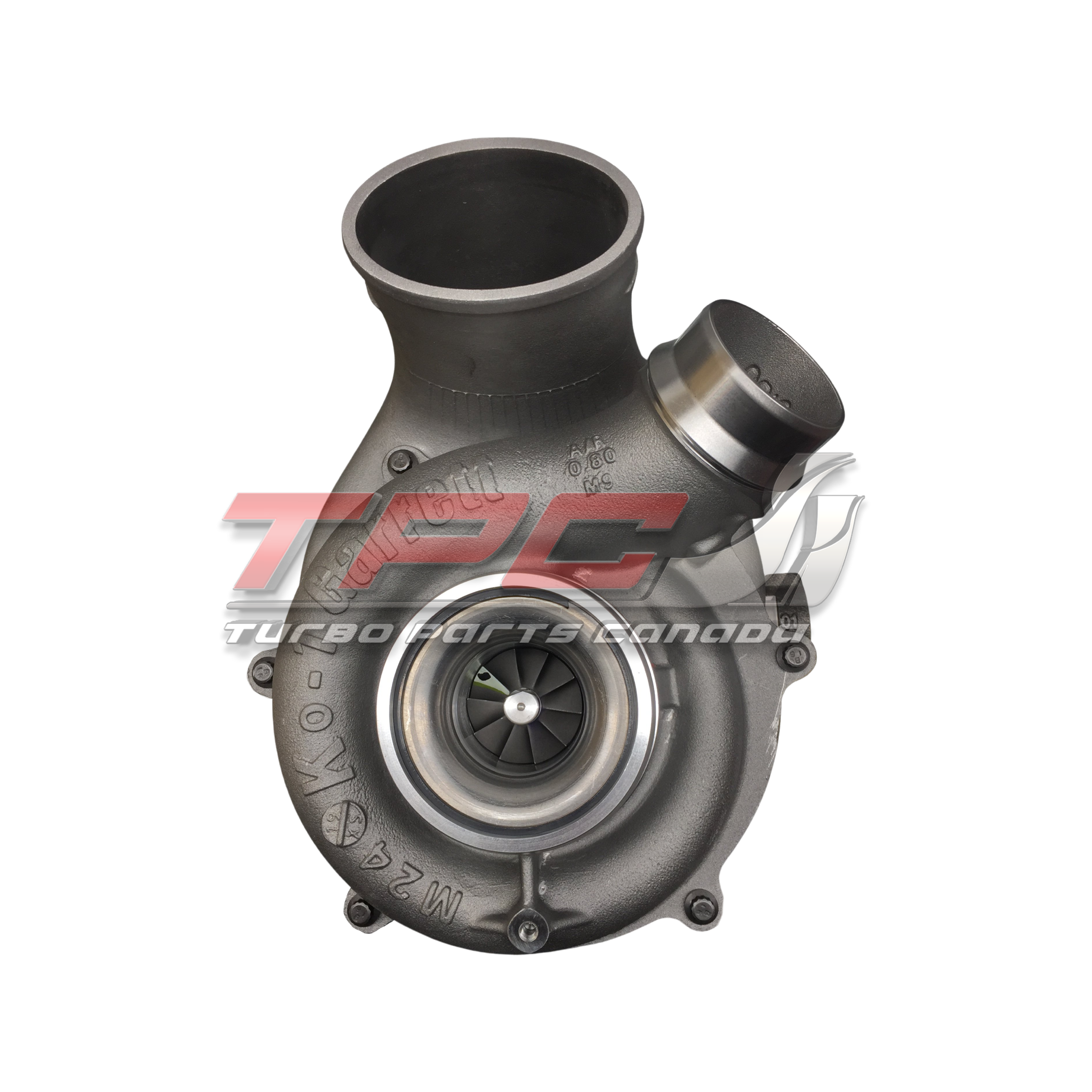

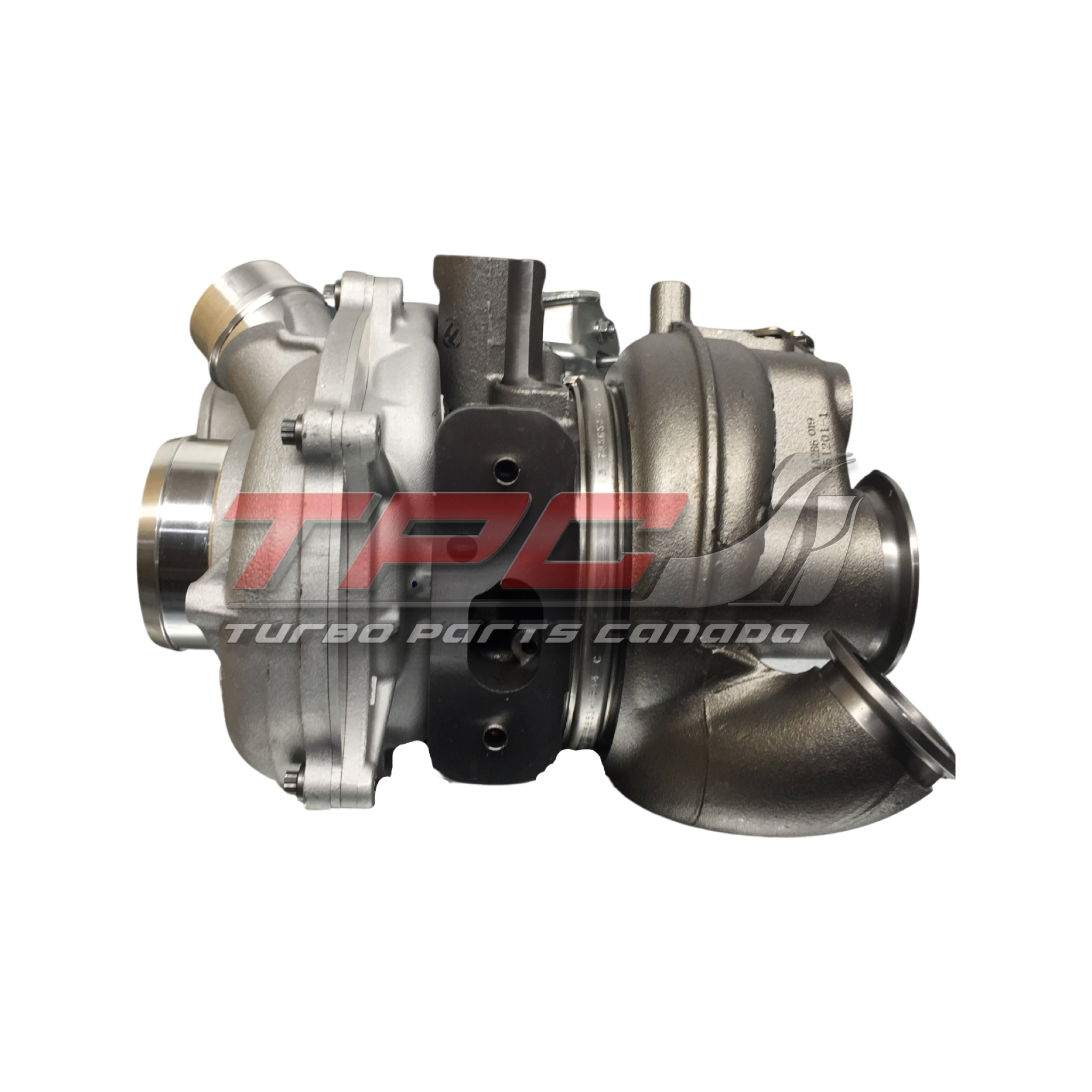

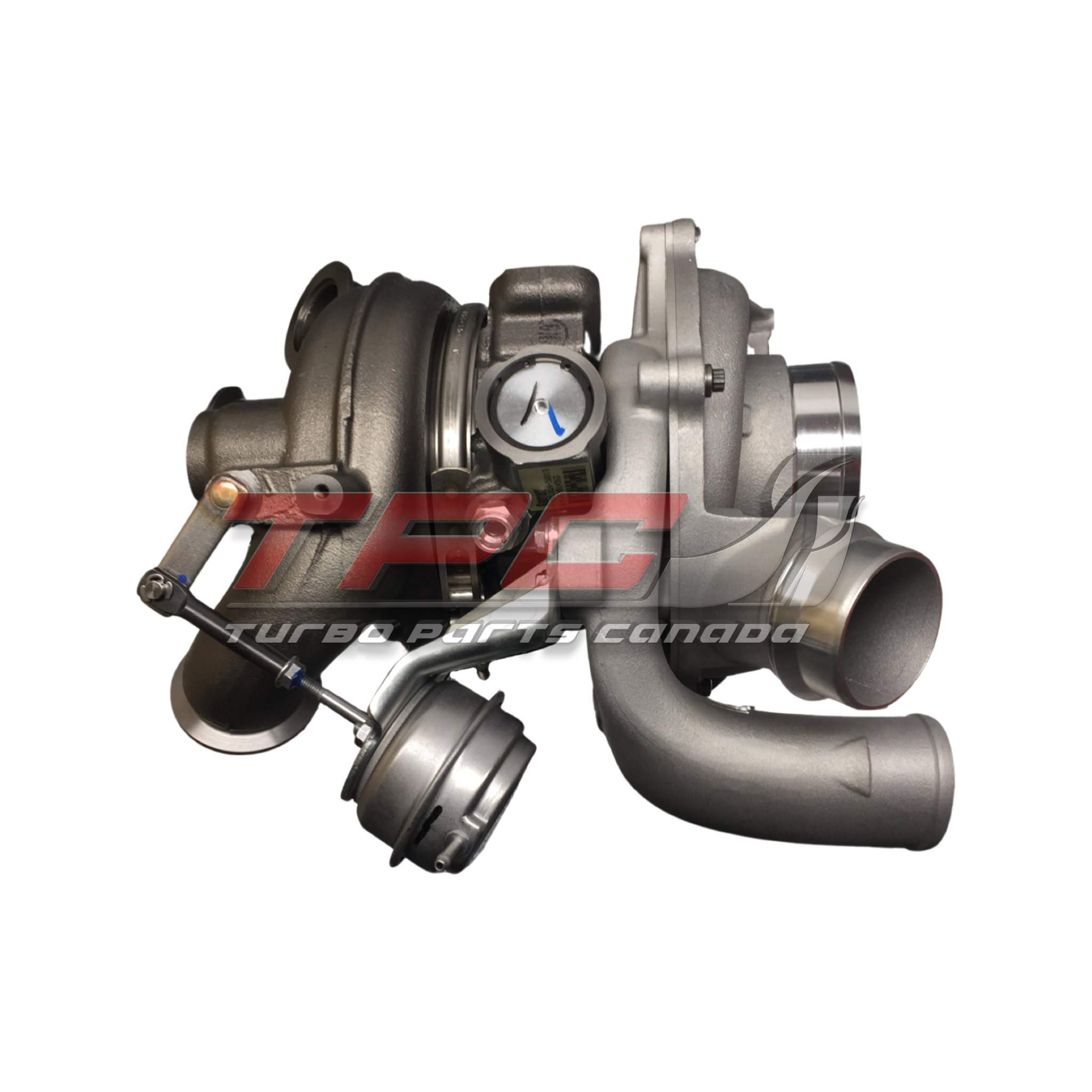

Brand New Genuine Garrett Scorpion224 SST3266V Turbocharger.
**PLEASE CALL TO CHECK ON AVAILABILITY & PRICING**
Comes with a 1 year unlimited mileage warranty.
New bearings, New Seals, Media blasting, Ultrasonic cleaning, High speed balancing and premium packaging.
Customer has 6 months from date of purchase to return core for refund. Once we receive your core and confirm its rebuildable we will process your core refund. This usually takes 3-4 business days after receiving.
We ship World wide!
|
Part Number |
851824-5001S |
|
Previous Part Number |
851824-0001, 795655-0001, 785700-0001, 785700-9001, 795655-0002, 795655-0003, 795655-0004, 795655-0005, 795655-0006, 795655-0007, 795655-0008, 795655-0014, 795655-0014, 795655-0015, 795655-0016, 795655-0017, 795655-0018, 795655-0019, 795655-5001, 785700-5001, 785700-9001, 795655-5002, 795655-5003, 795655-5004, 795655-5005, 795655-5006, 795655-5007, 795655-5008, 795655-5014, 795655-5014, 795655-5015, 795655-5016, 795655-5017, 795655-5018, 795655-5019, 7956550005, 7956550006, 7956550007, 7956550008, 7956550014, 7956550016, 7956550017, 7956550018, 7956550019 |
|
Year/OE Number/Manufacture Part Number |
2010-15 BC3Q9G438AC, BC3Q9G438AD, BC3Q9G438AD, BC3Q9G438AE, BC3Q9G438AF, BC3Q9G438AG, BC3Q9G438AH, BC3Q9G438AJ, BC3Q9G438AK, BC3Q9G438AL, BC3Q9G438AM, BC3Z6K682A, BC3Z6K682AFC, BC3Z6K682AFC, BC3Z6K682C, BC3Z6K682EA, BC3Q9G438, BC3Z-6K682, FSGSBC3Z-6K682-B, BC3Q-9G438-AM |
|
Description |
Truck Super Duty F-350, F-450, & F-550, Power Stroke Pick Up , Steel Ball Bearings |
|
Turbo Model |
SST3266VJLNRSUB, SST3266LRVA |
|
Displacement |
6.2L, 6.7L, V8 |
|
Engine |
Power stroke "Scorpion" |
|
K/W |
300/400 HP |
|
Manufacturer |
Honeywell-Garrett Bluetec |
|
Engine Manufacture |
FORD |
|
Fuel |
Diesel |
|
Applications |
2010-15 Ford F250, F350, F450, F550 Super Duty Truck with 6.7L V8 Power stroke Engine |
