CURRENT BUILD TIME APPROX. 2-3 WEEKS.
** Limited Edition Red compressor housings now available **

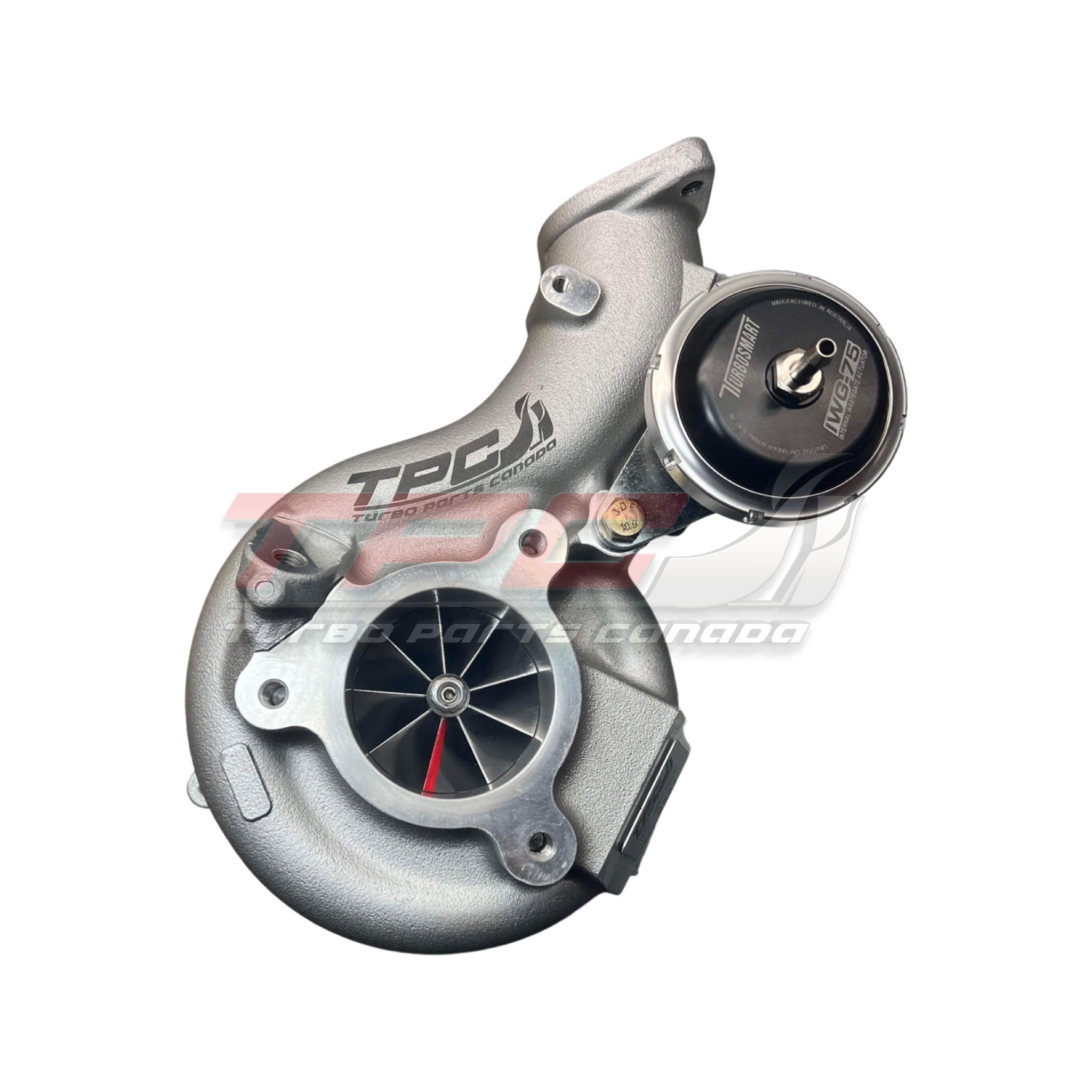

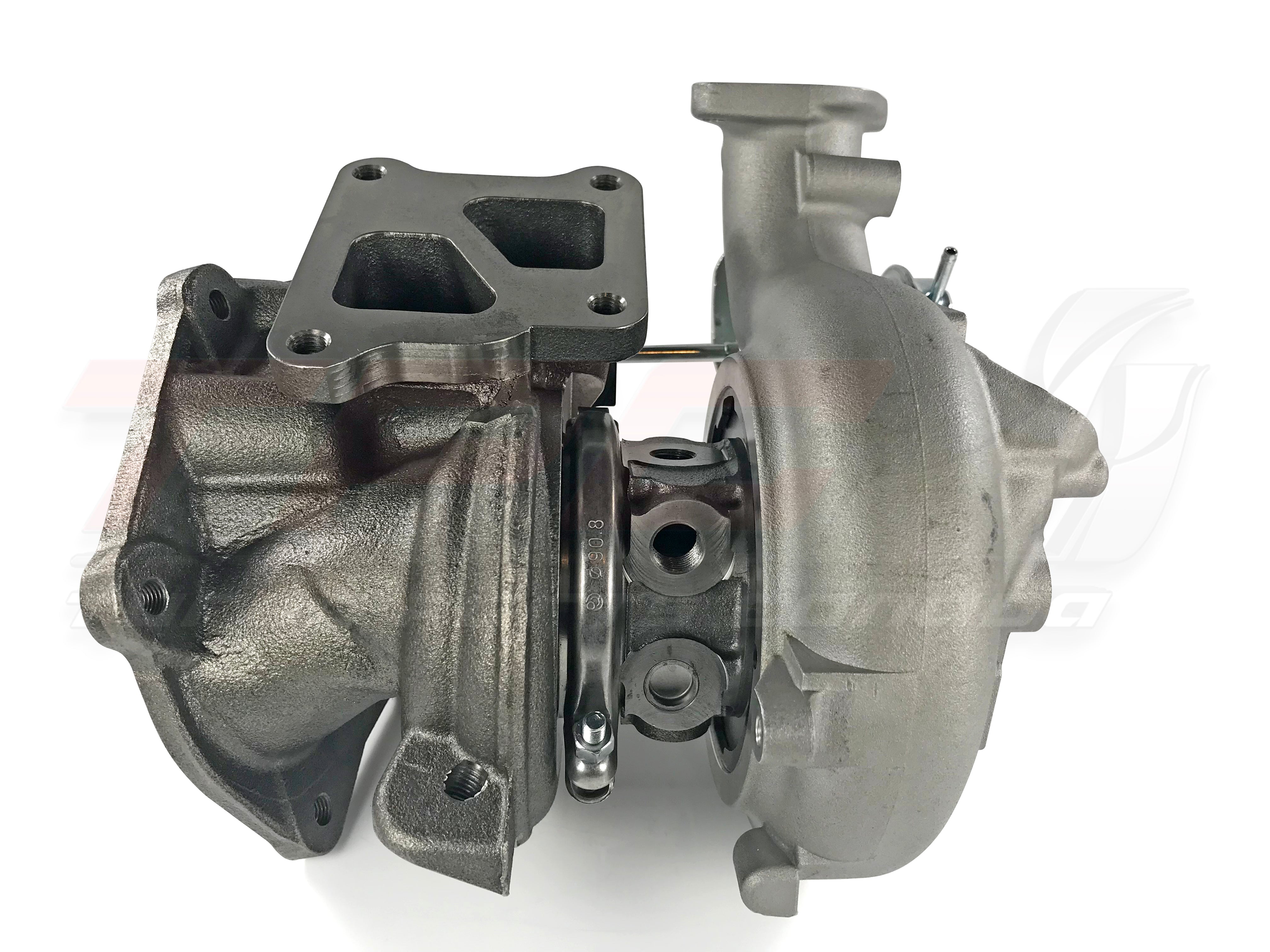

GT SPEC Evo X Turbo

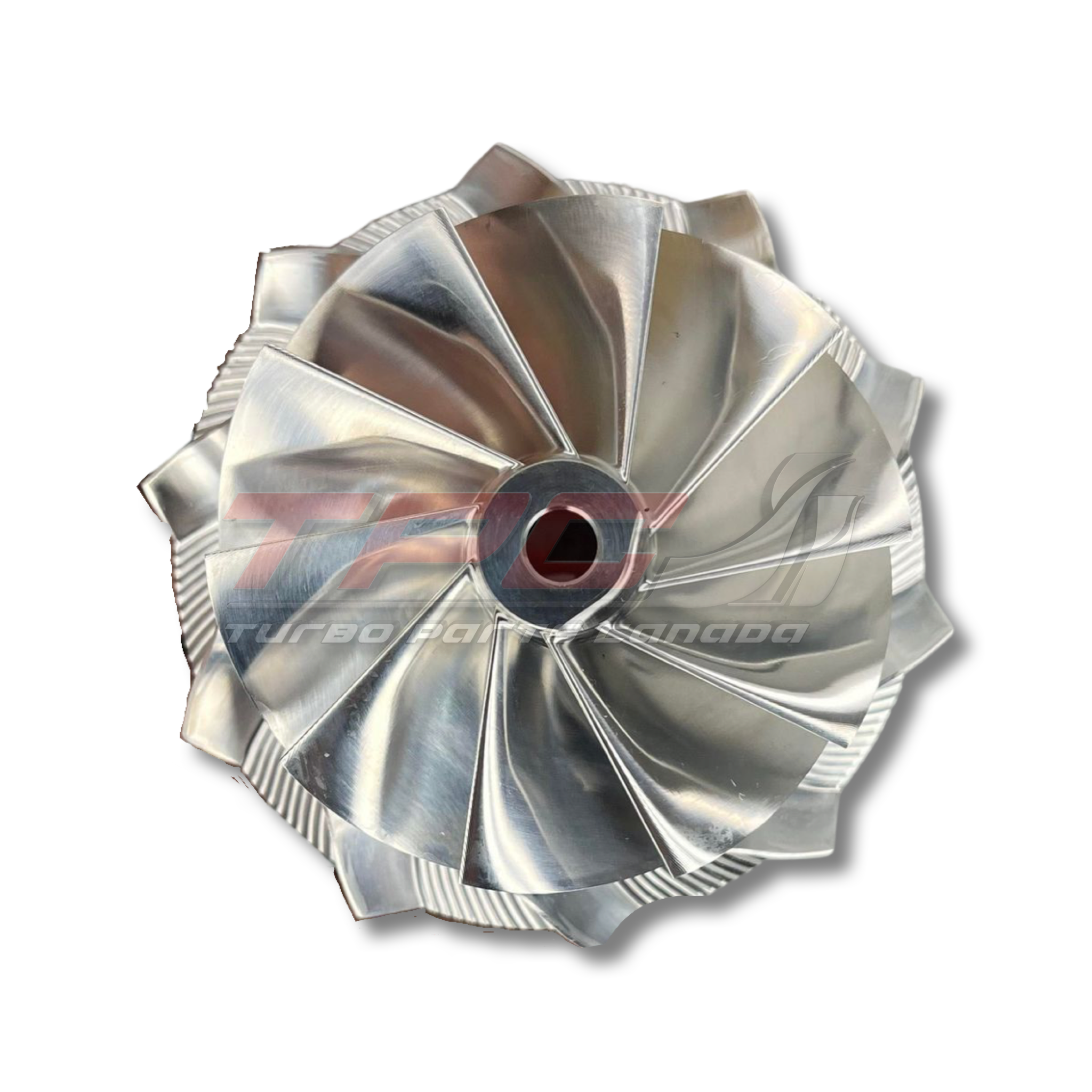

Our GT Spec Hybrid turbo comes with the popular GT3582R billet compressor wheel flow rated @ 64lbs/min.

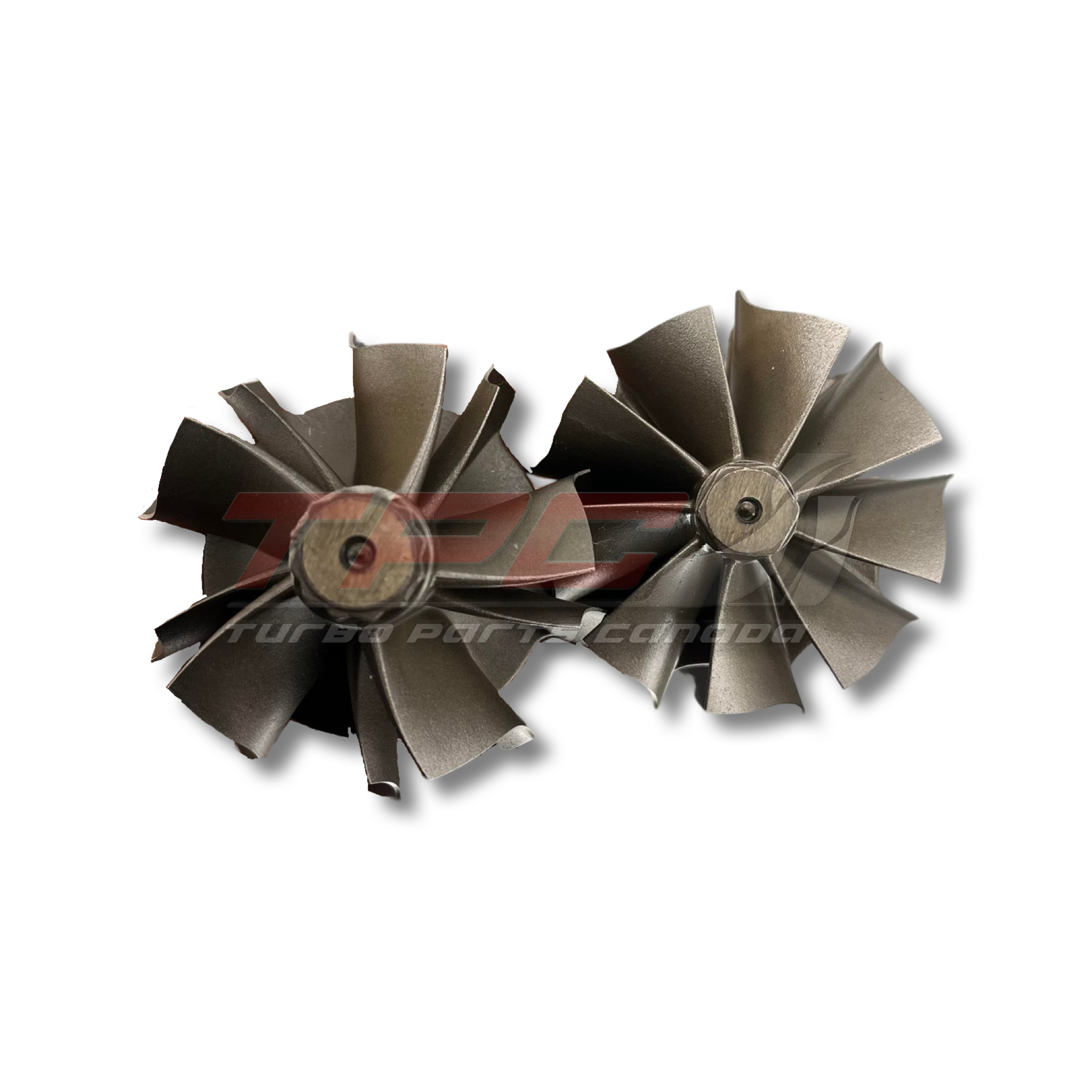

With our TPC clipped turbine wheel you will reach 28psi at around 4400rpm on stock cams and make close to 600whp+ on E85 with supporting mods.

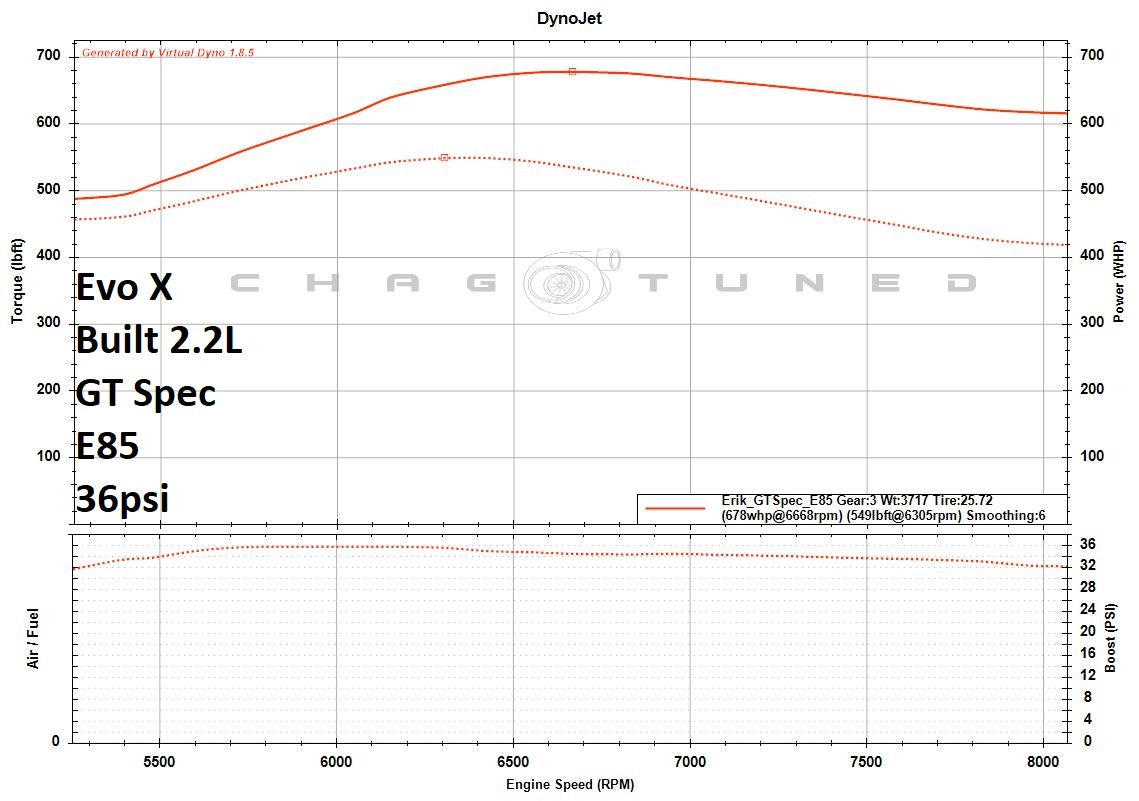

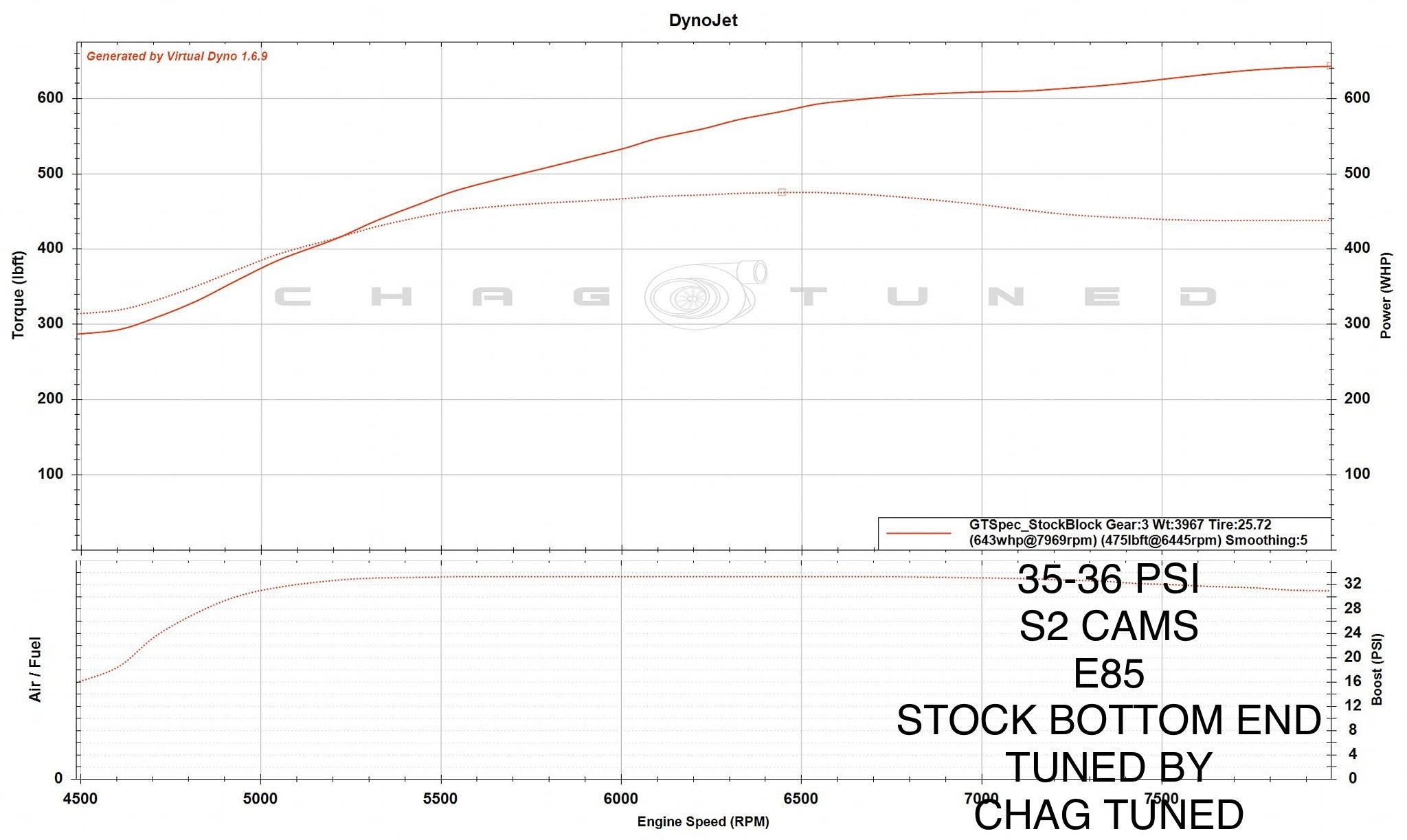

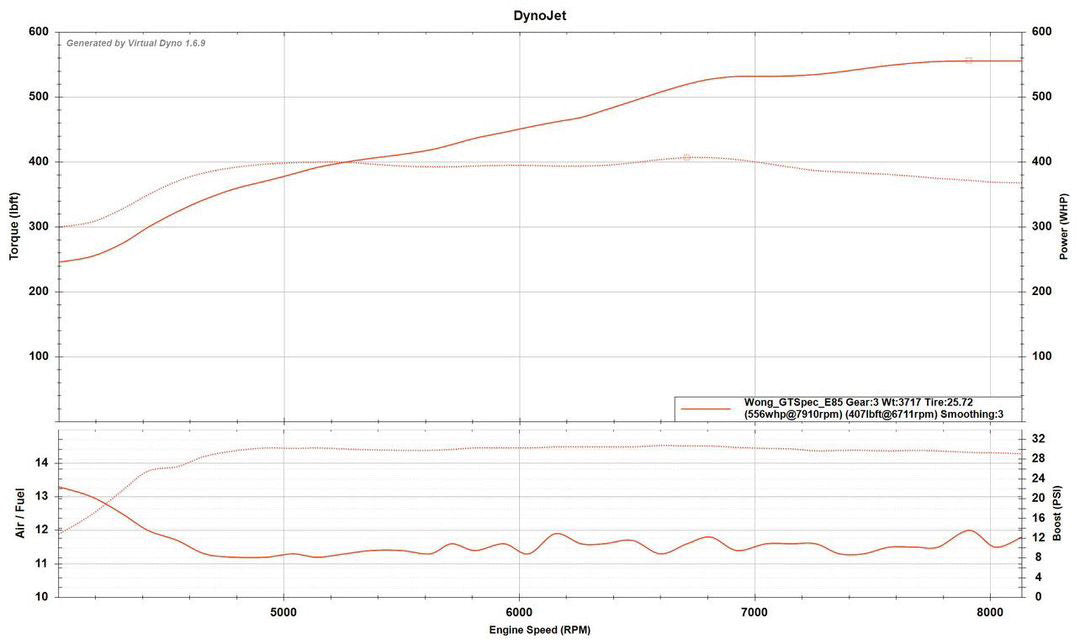

We chose the 61.3mm 35R billet compressor wheel option as it has better overall balance of the rotating assembly along with peak spool times in mind. We attached a screen shot of the most recent logs with MIVEC dialed in with this TPC GT Spec.
Upgraded thrust components and bearings are installed in all our performance turbos to ensure they will handle your high boost demands.
High-quality turbine housings are used to ensure you will not suffer unwanted cracks like OEM housings are plagued with. To know if you are purchasing a quality housing you can try to stick a magnet to the housing. If housing is superior quality the magnet will NOT stick.

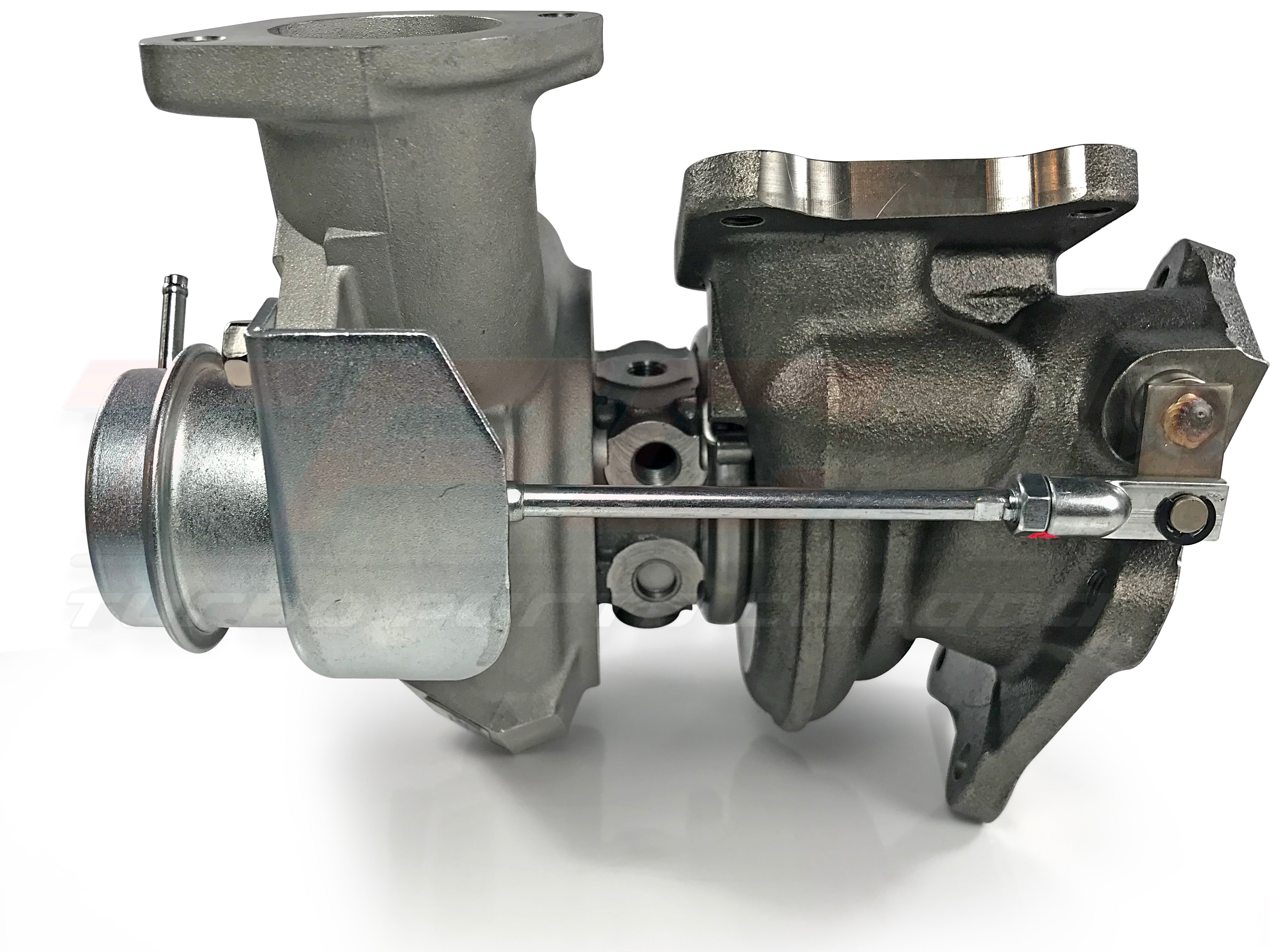

Your new power house GT Spec turbo will come with an upgraded 1.5bar (22psi) waste gate actuator.
High speed VSR balanced in house to 100 000 rpm +
All Evo X turbos are built and balanced in Canada by us with 100% new parts. We ship worldwide and usually have all the parts in stock ready to start building. Please contact us for current build times when ready to place the order. Duty fees and rates may vary depending your country of residence.
In the event this turbo is not in stock, expect build times between 10-15 business days.
- Compressor inducer 61.3mm
- Turbine exducer 58mm
- Upgraded thrust bearing assembly for high boost applications

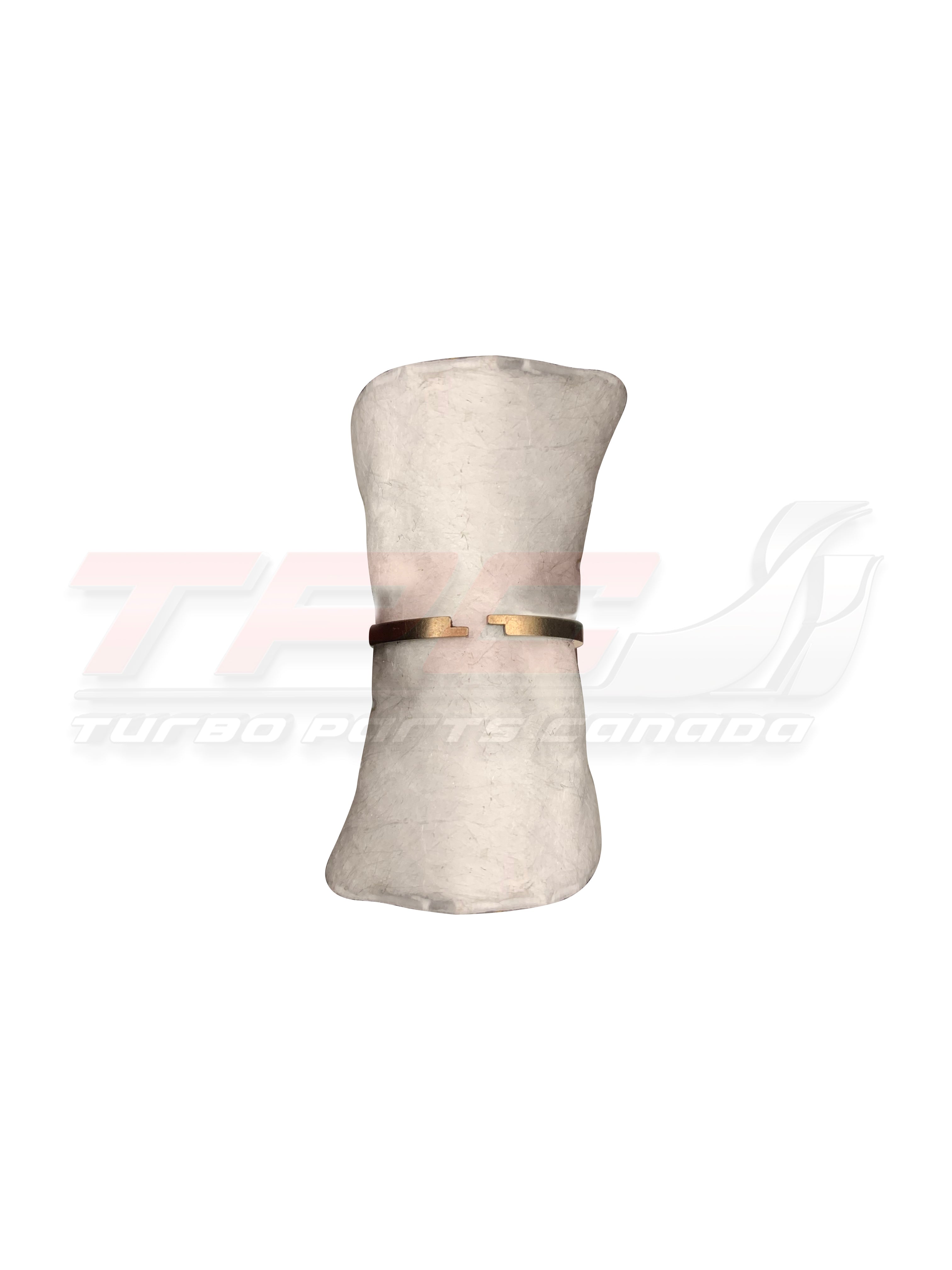

- Upgraded step gap piston rings for durability

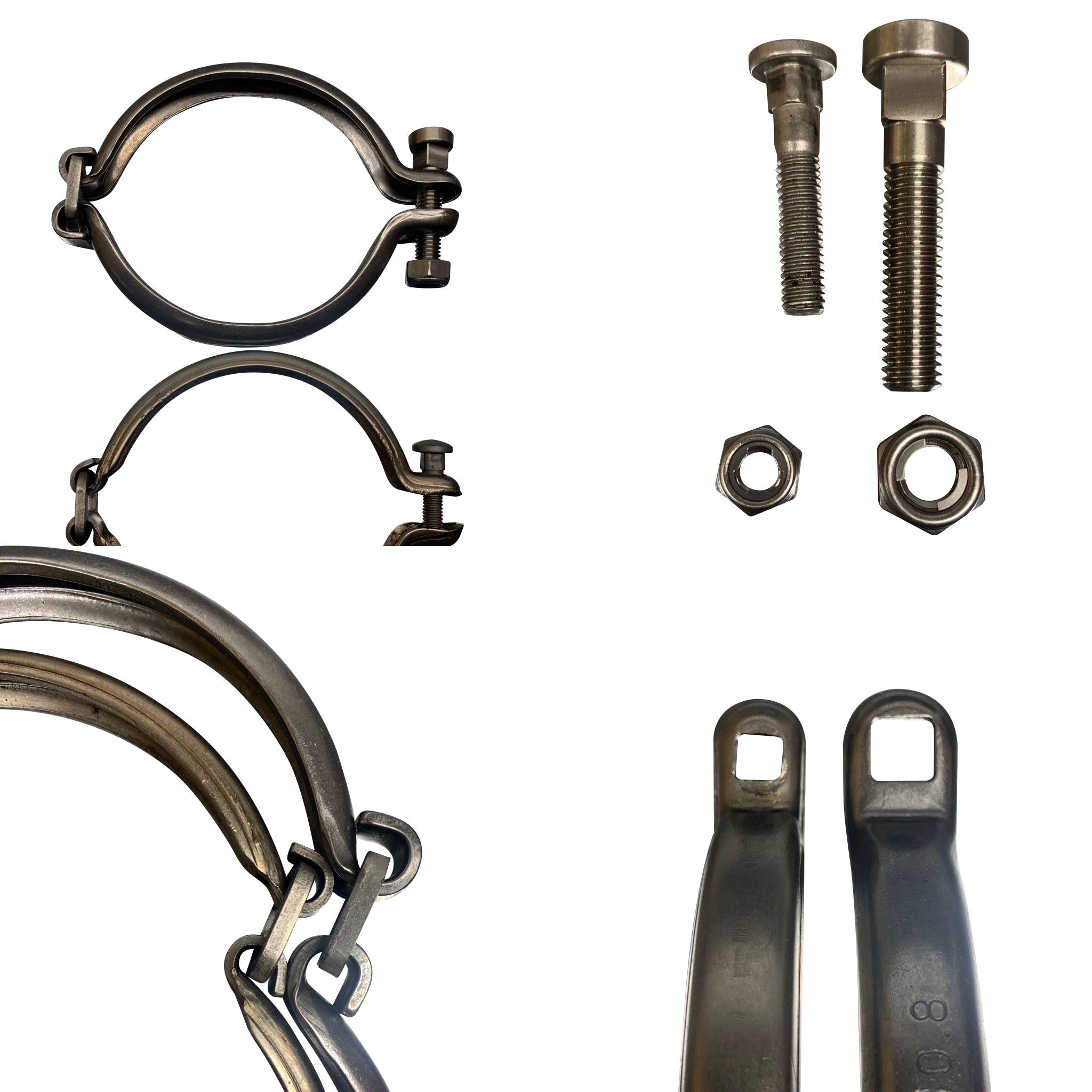

- Upgraded V Band clamp
- Actuator spring rate 22psi (24psi Turbo Smart actuator available)
- 550whp+ on E85 and 500whp on 94 pump

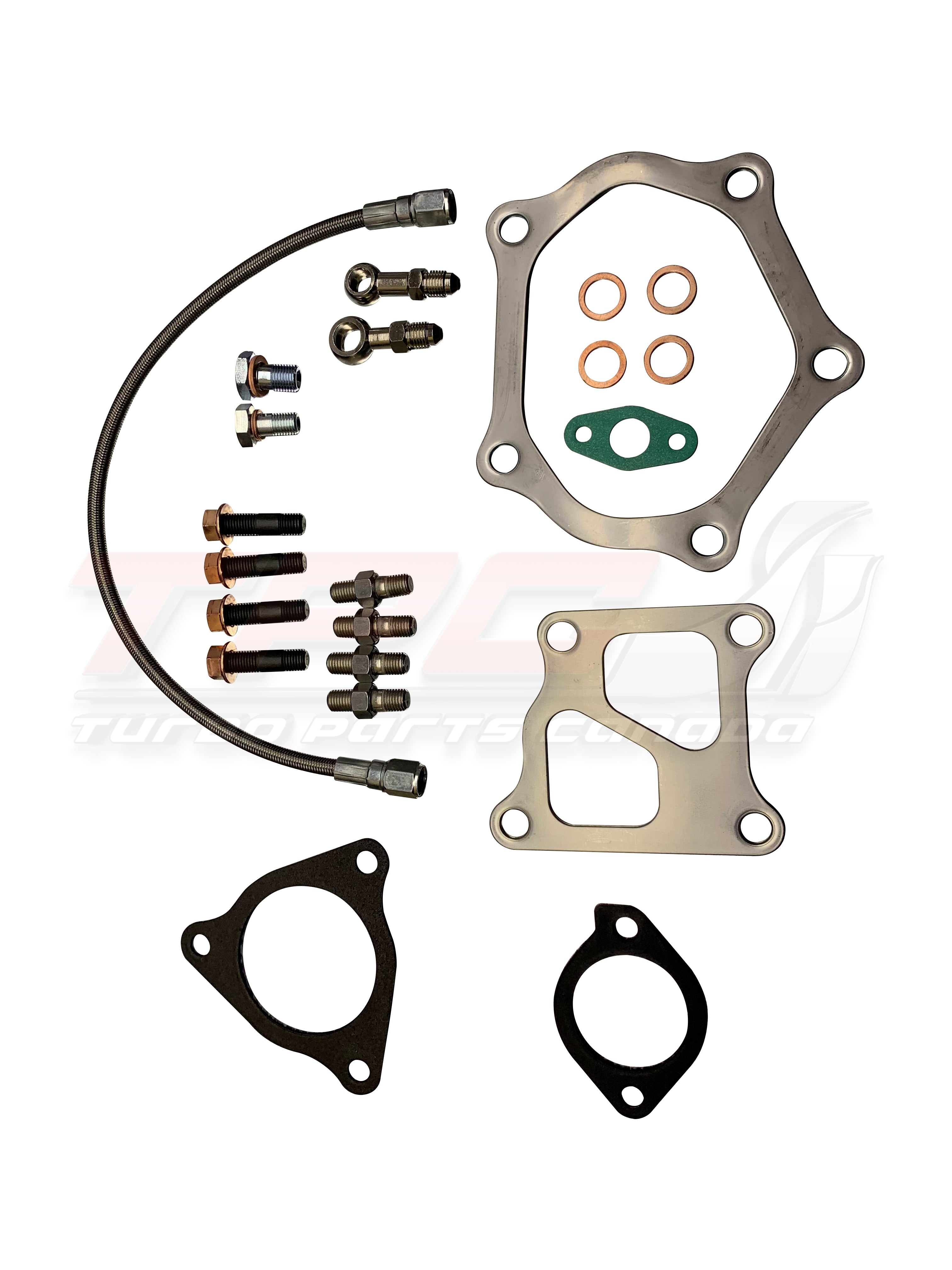

- Gaskets included
- Exhaust studs and nuts included
- New braided stainless oil feed line included
- VSR balanced
- 1 year unlimited mileage warranty
- Best package on the market
For tuning support you can contact Chag Tuned via email.
