PRODUCT DETAILS

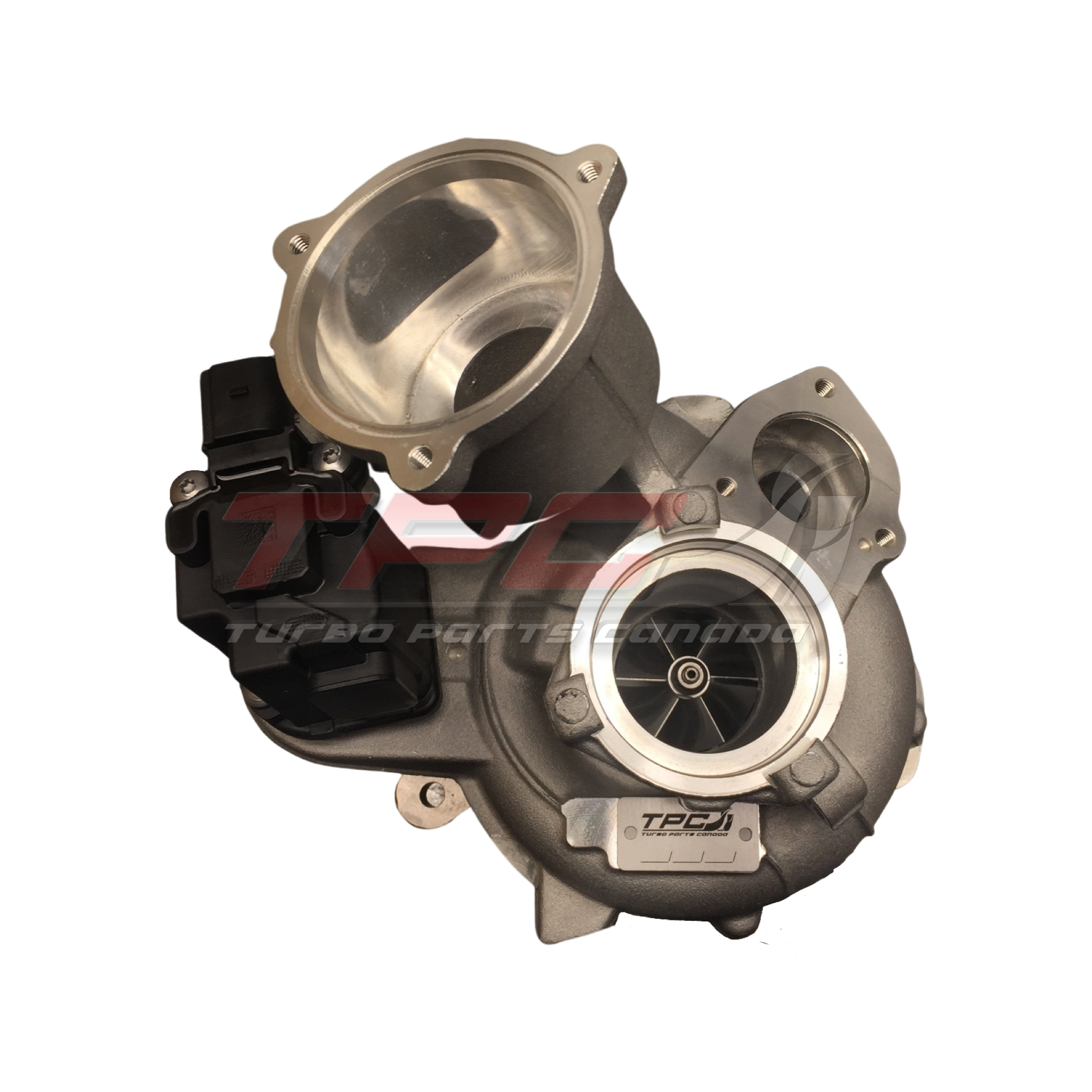

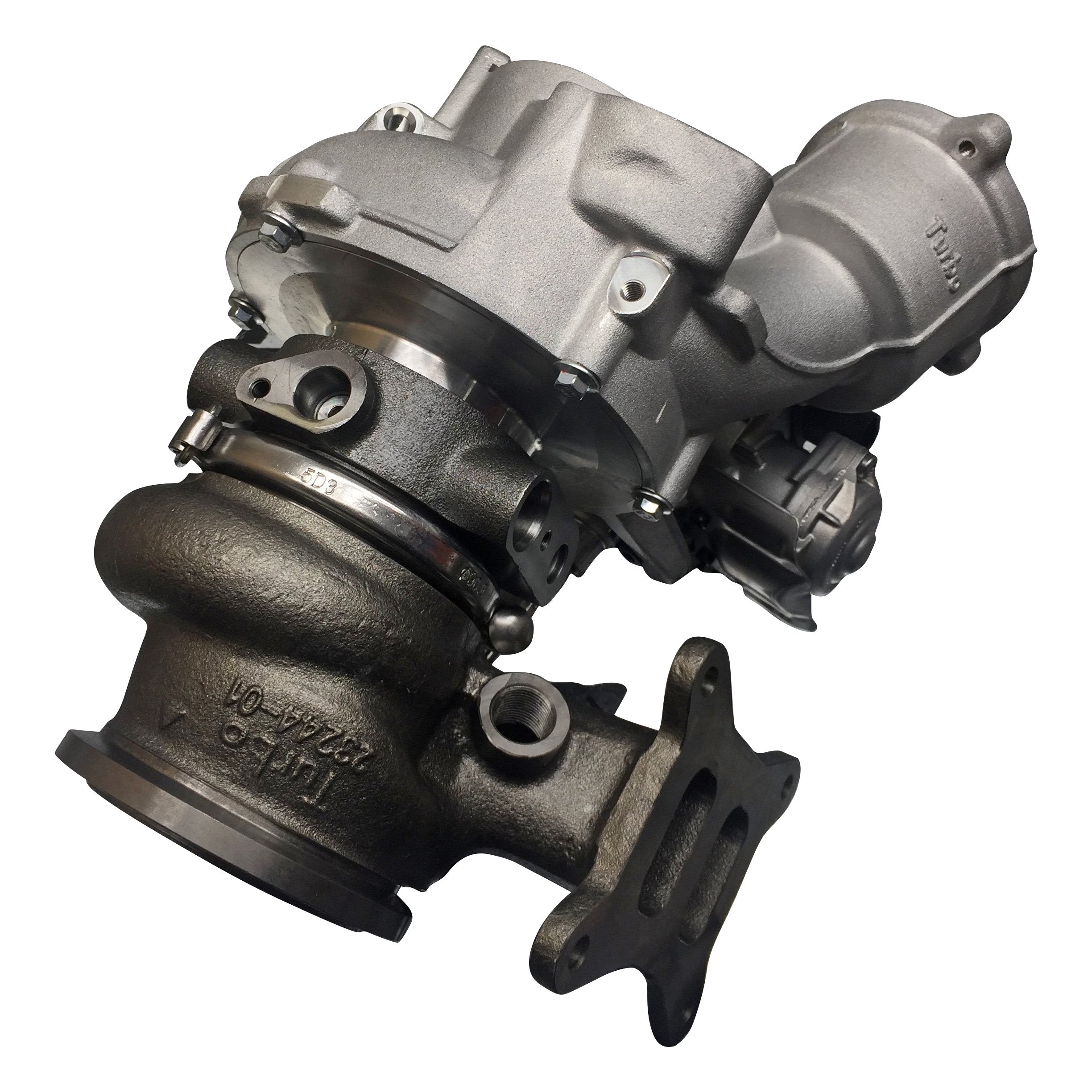

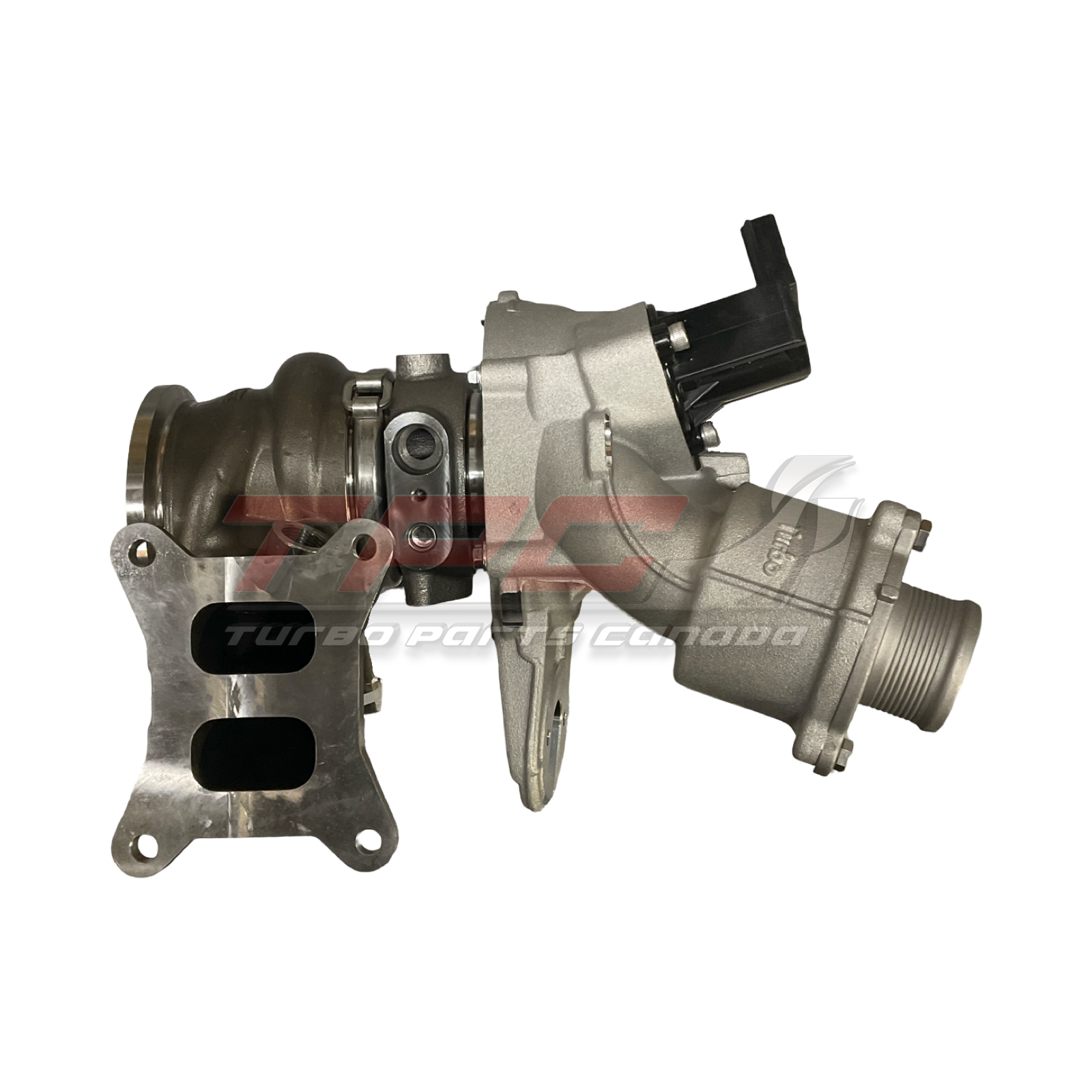

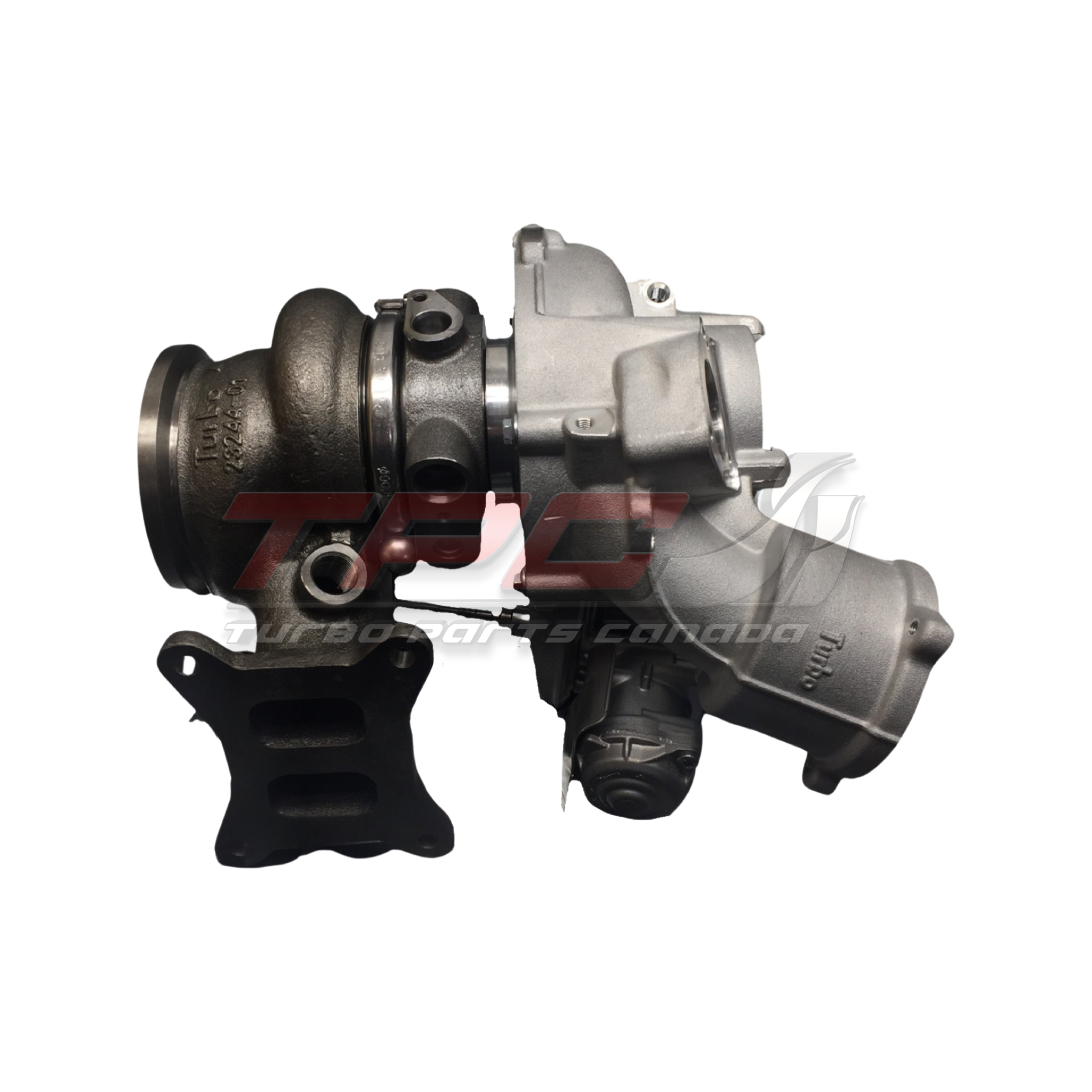

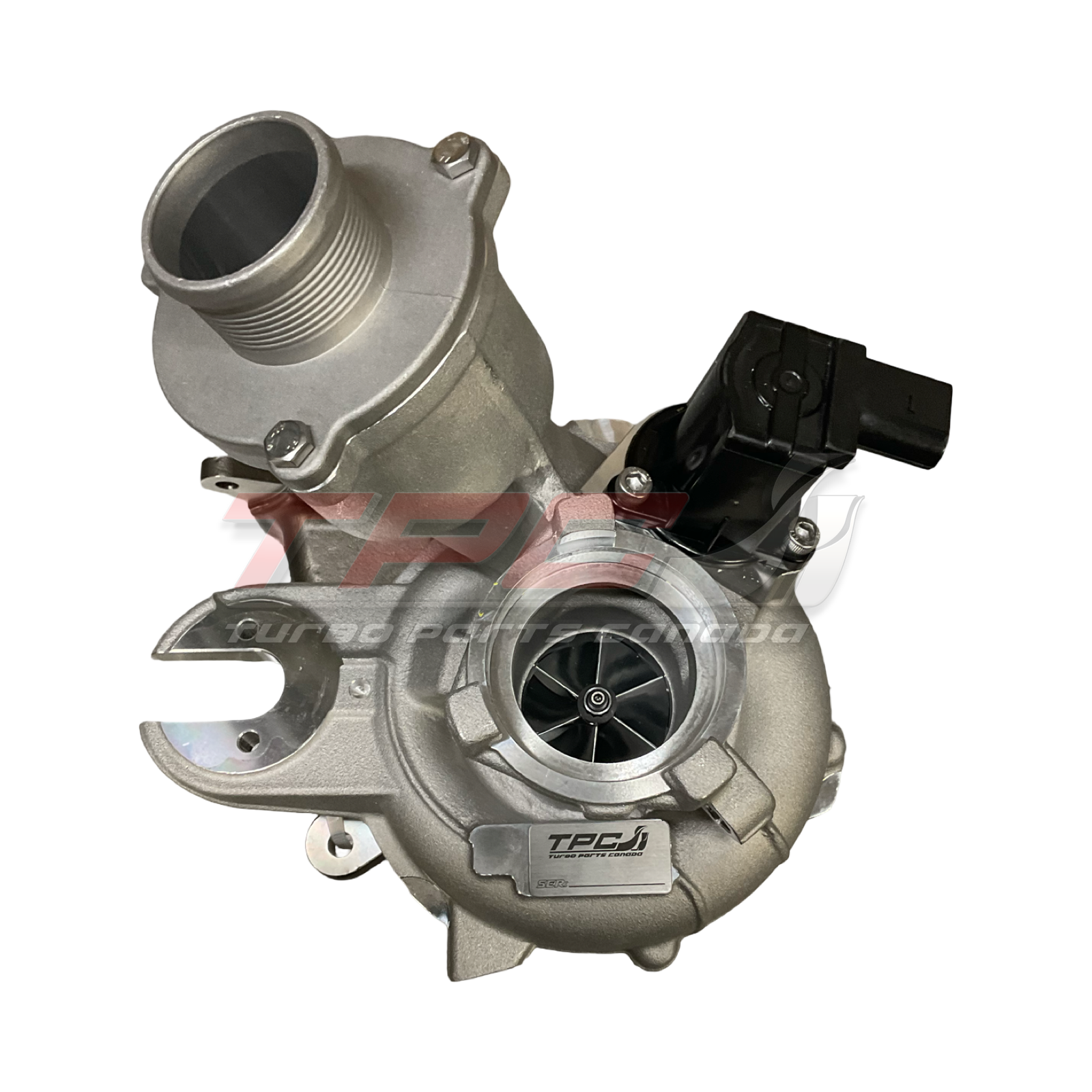

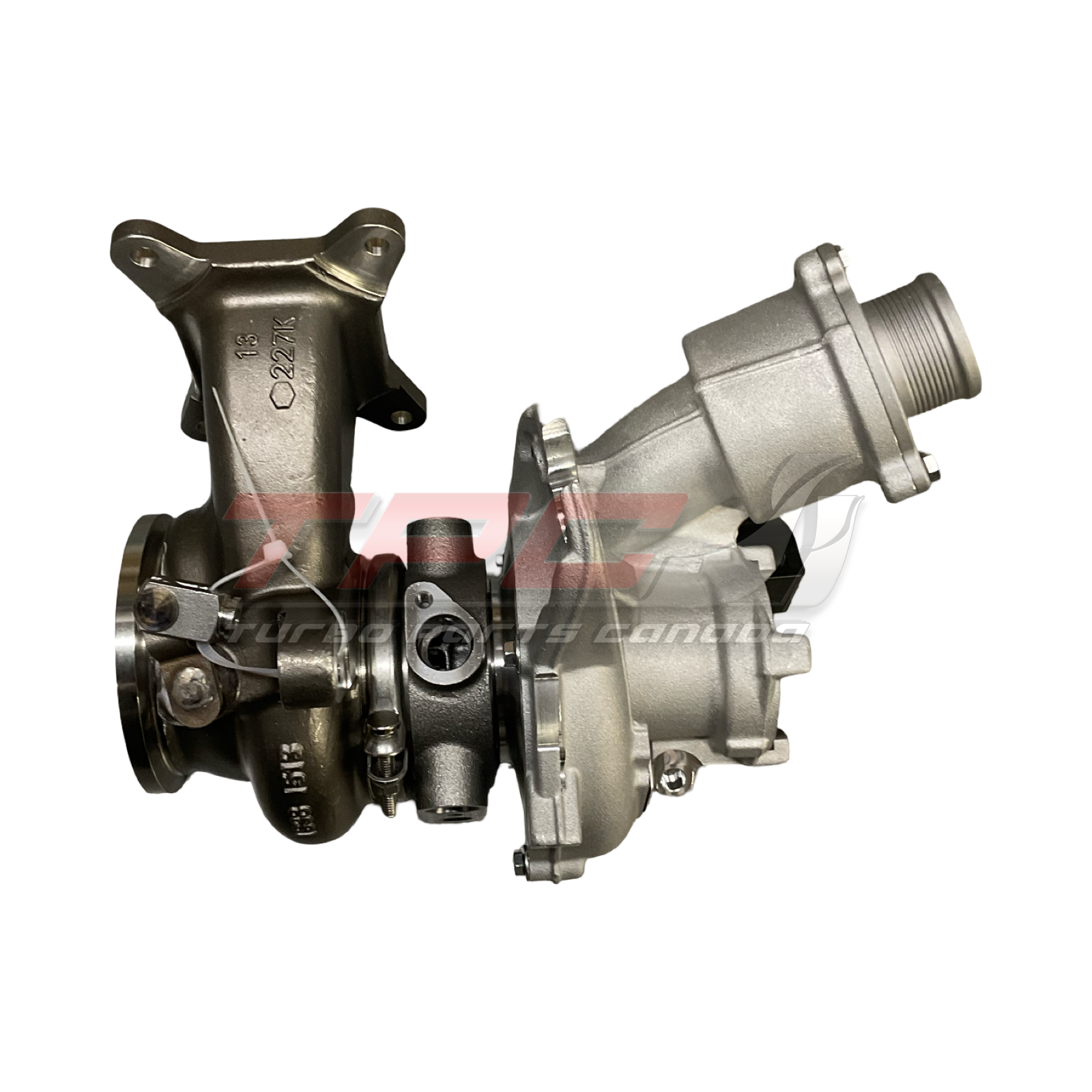

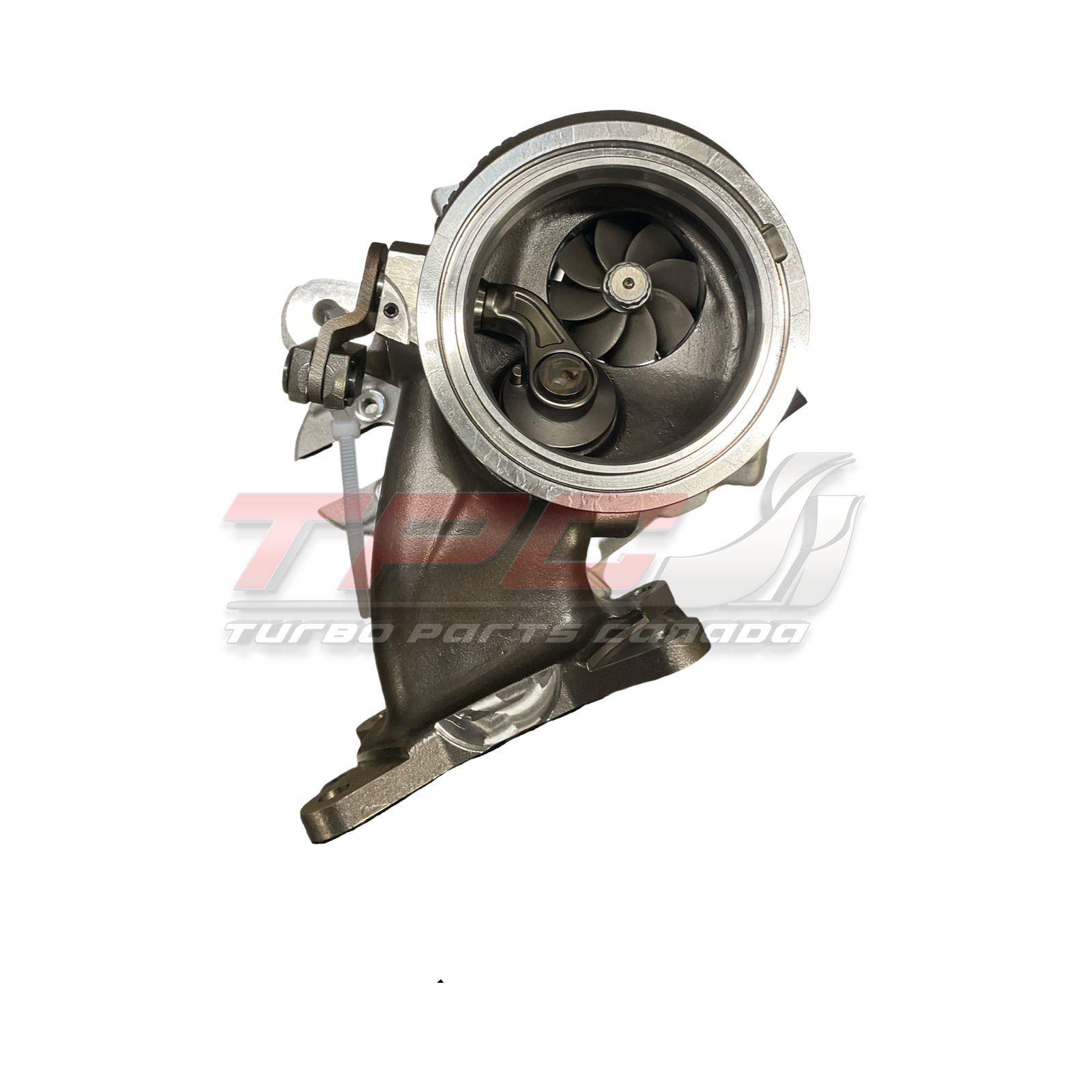

xThis popular IS38 turbo in a ball bearing version for your piece of mind on reliability.

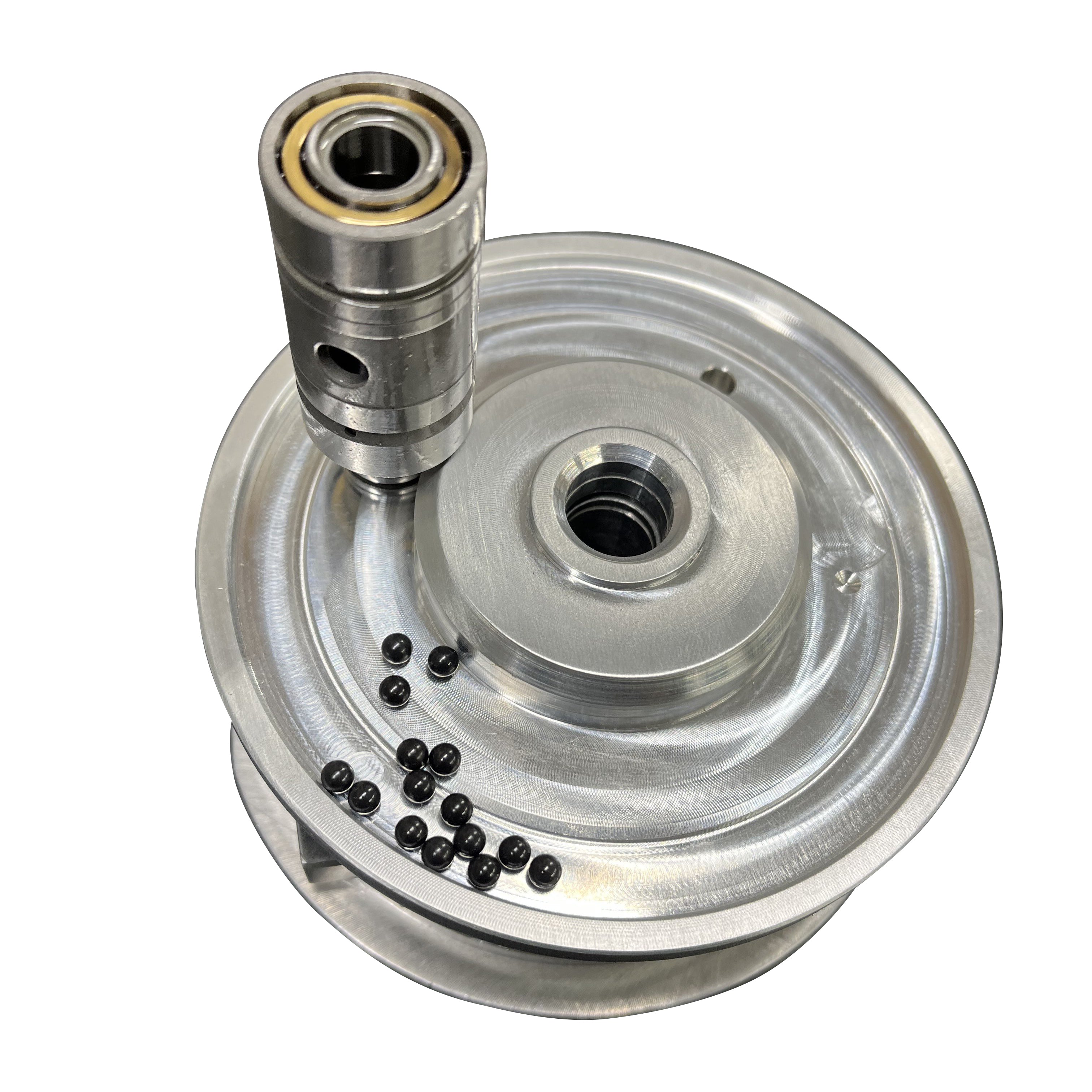

Not only have we removed the poor original IHI bearing system and replaced it with a Garrett style bearing system but we have also increased the shaft diameter to safely handle higher boost pressures throughout the powerband.
The compressor and turbine wheels remain OEM spec which means it will work with any OTS (off the shelf) tunes or OEM ECU's.
It was brought to our attention that some performance tuners kept the boost down up top to help keep the turbos in one piece. Now that worry can be a thing of the past and the user can now max out the turbocharger reliably which in turns means more power in the long term.
This is an all new turbo so no core is required.
-High Speed balanced in house on our VSR balancing machine.

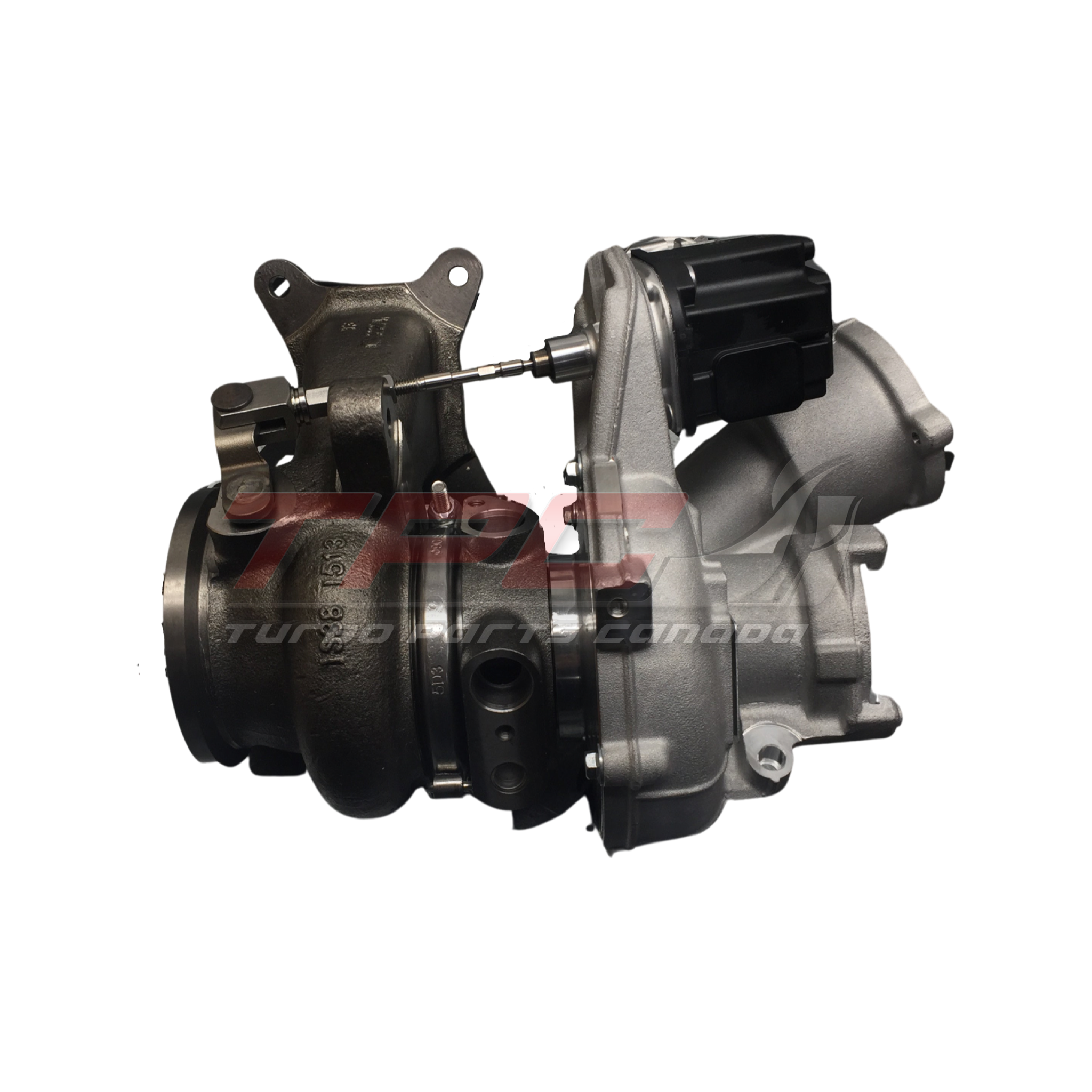

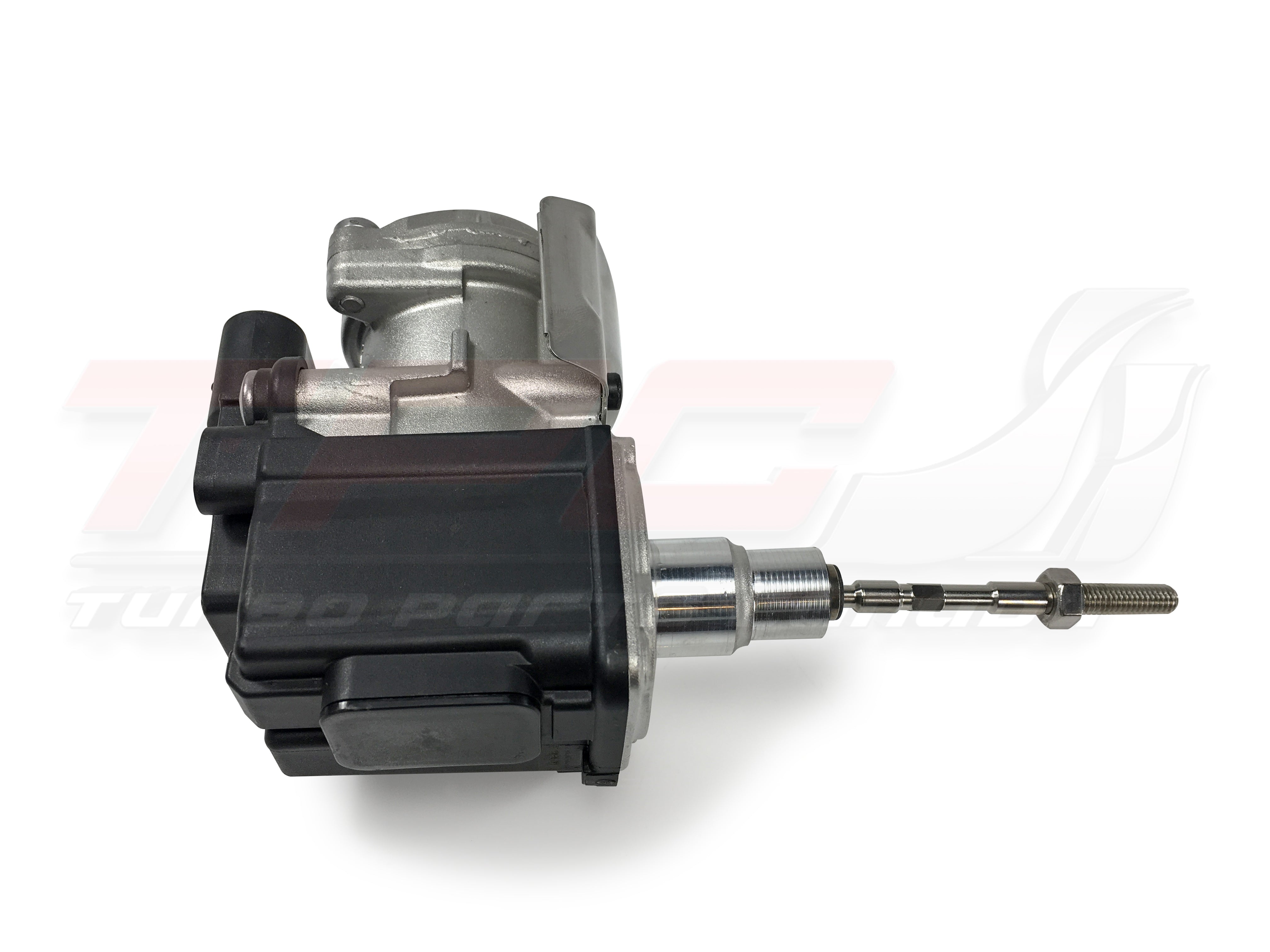

-Shown with optional wastegate actuator
-OEM diverter valve must be reused.

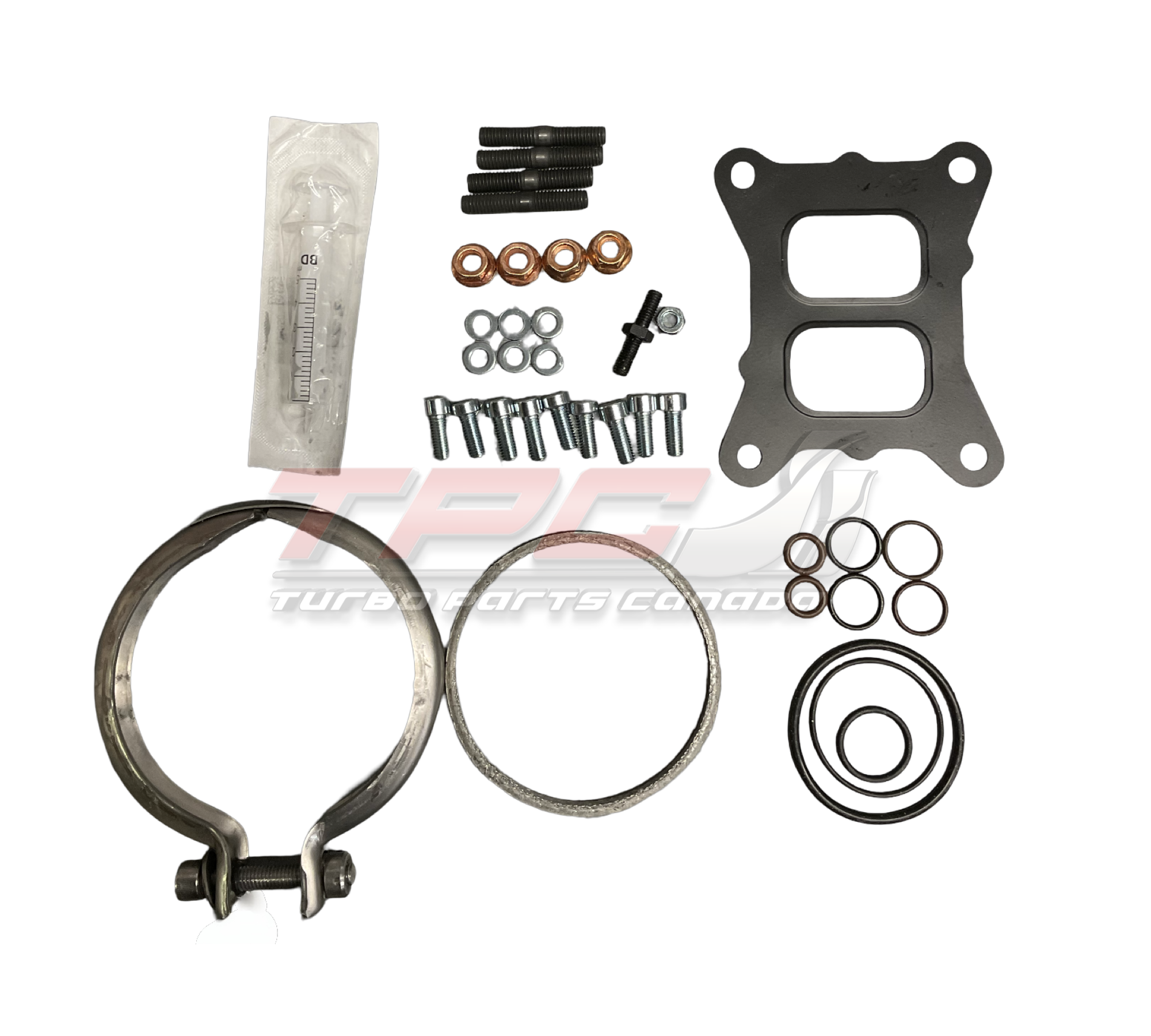

-Complete install kit included.
TPC also offers the metal portion of the coolant feed line (part#06K-121-492-F) as some people have a very hard time removing it from their turbo.
|
OEM Part Number |
06K 145 874 P |
|
Compressor Wheel |
OEM SPEC |
|
Turbine Wheel |
OEM SPEC |
|
Bearing Type Options |
Ball Bearing (Water Cooled) |
|
Engine |
EA888.3 |
|
Turbocharger Upgrades |
Upgraded ball bearing system with a quick spool turbine |
|
Potential Power |
400WHP with supporting mods |
|
Install Hardware Included |
YES |
|
VSR Balanced |
YES |
|
Applications |
2015-2020 Audi S3 2015-2020 Audi A3, A3 Quattro 2016-2023 Audi TTS Quattro 2016-2018 Audi TT Quattro 2019 Audi TT Quattro S 2015-2019 VW Golf R 2019-2021 VW Arteon Also an upgrade for any IS12/IS20 equipped cars. Tune Required |
|
|
|
Other Part Numbers:
06K 145 722 T / 06K 145 874 P / 06K 145 874 G / 06K 145 722 S / 06K 145 722 N / 06K 145 874 GX / 06K 145 874 PX / 06K 145 722 T / 06K 145 874 N / 06K 145 722 H / 06K 145 722 A / 06K 145 725 S
Professionally assembled with quality made parts, high speed balancing, premium packaging & customer support.
If you don't see what you're looking for, please give us a call or send us an email! If OUT OF STOCK, please call or click the "NOTIFY ME" button to check on availability.
Toll Free # 1-866-552-3477 EXT 1
Local # 1-613-868-6801
