PRODUCT DETAILS
xJust when you thought you maxed out your G35, TPC has more to offer!

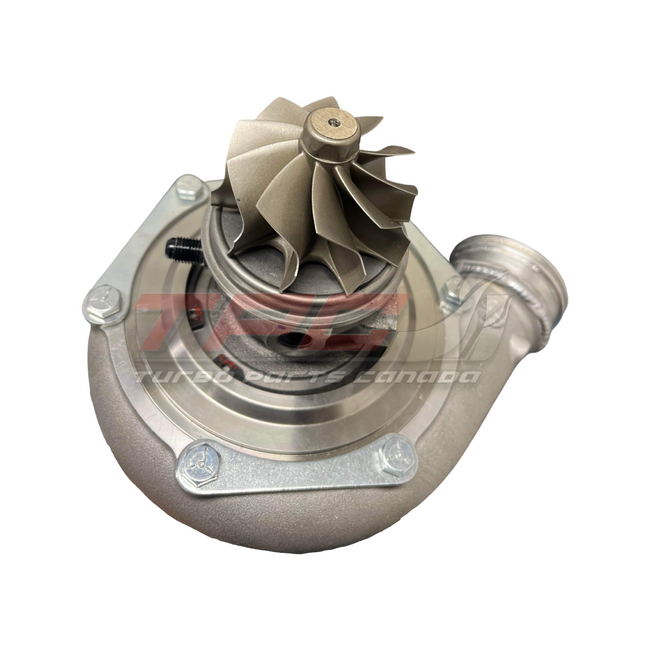

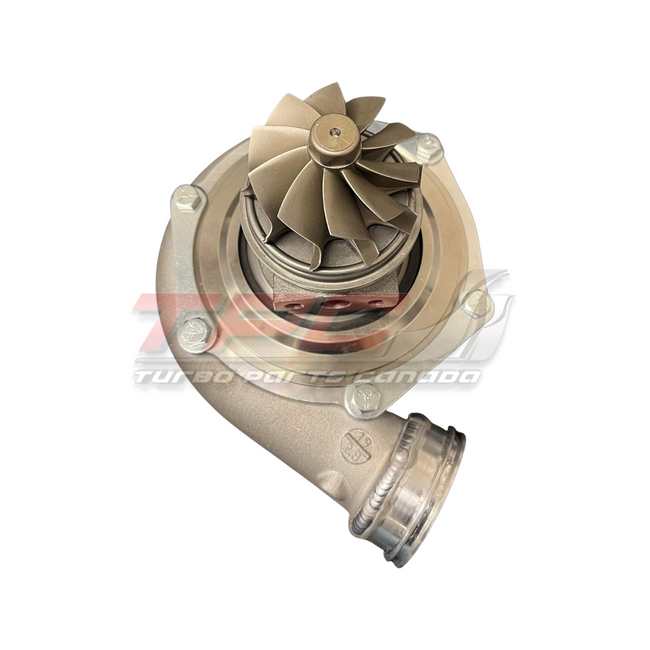

Turbo Parts Canada is proud to introduce our new custom turbine wheel offering which is a whopping 4mm bigger than your traditional G35 turbine wheel.
We picked our favorite PTE 66mm turbine head and mated it to the very popular G35 Ball Bearing shaft. Will also fit in any G30 application.
This turbine will fit any G30 & G35 frame turbochargers. Machining required.
All TPC turbine wheels are made from 713C Inconel, professionally balanced and come with the appropriate shaft nut. Custom wheels are final sale unless approved by TPC staff for special circumstances. VSR Balancing is strongly recommended after making the assembly.
(2D Drawings provided upon request after purchase)
| Wheel Specs |
| Wheel Rotation |
Forward |
| Inducer Diameter A |
75 mm |
| Exducer Diameter B |
66 mm |
| Bearing Shaft Diameter D | For G30/G35 Ball Bearing Cartridge |
| Quill Shaft Diameter E | 6.35 mm (G30/G35) |
| Bearing Shaft Length G | 42 mm |
| Quill Shaft Length F | 63 mm |
| Blade Design | 10 |
| CNC Machining Required |
YES |
| Application: | This turbine wheel fits any G30 & G35 ball bearing turbochargers. Requires CNC machining/porting of the turbine housing |
TPC offers professional in-house machining services if you require it. Contact us for any additional information or if you don't see what you're looking for.
Toll Free # 1-866-552-3477 EXT 1
Local # 1-613-868-6801
