TPC25 Ball Bearing MQB Turbo

Regular price $1,799.00 USD Sale

ACTUATORS ARE CURRENTLY OUT OF STOCK We are proud to introduce our latest MQB upgraded turbocharger, the TPC25 Turbo that hosts one the most popular compressor wheel of this generation. The Garrett G Series G25-660 54mm compressor wheel. On top of that...

PLEASE CONTACT US FOR BUILD TIMES BEFORE ORDERING

Product Details

ACTUATORS ARE CURRENTLY OUT OF STOCK

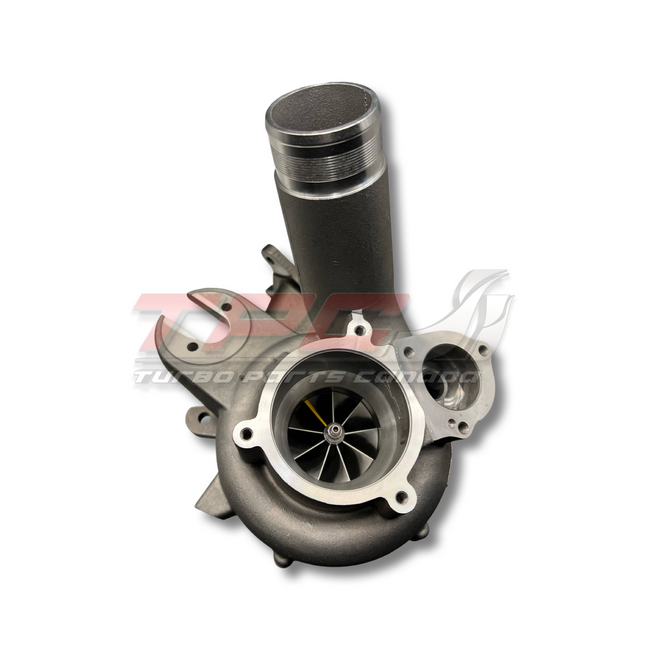

We are proud to introduce our latest MQB upgraded turbocharger, the TPC25 Turbo that hosts one the most popular compressor wheel of this generation. The Garrett G Series G25-660 54mm compressor wheel.

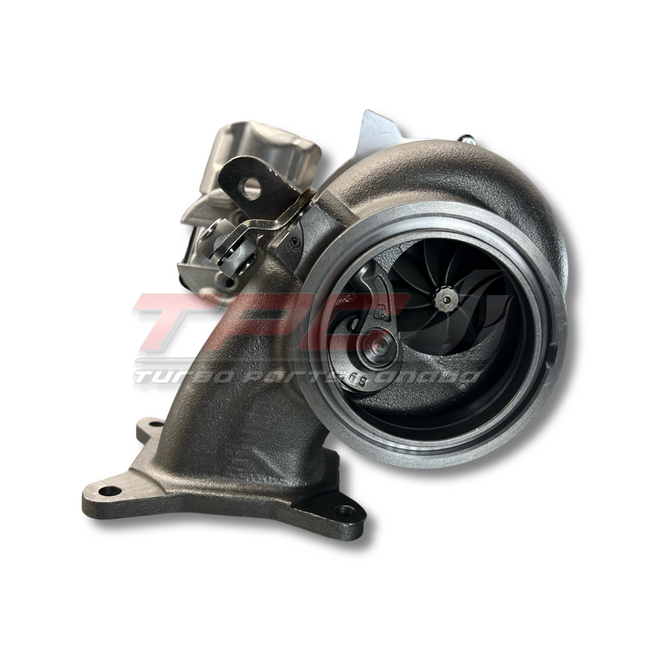

On top of that we mated this sweet new compressor wheel to a GTX29 turbine wheel measuring 53mm x 56mm in an IS38 turbine housing for best spool and peak performance throughout the whole powerband.

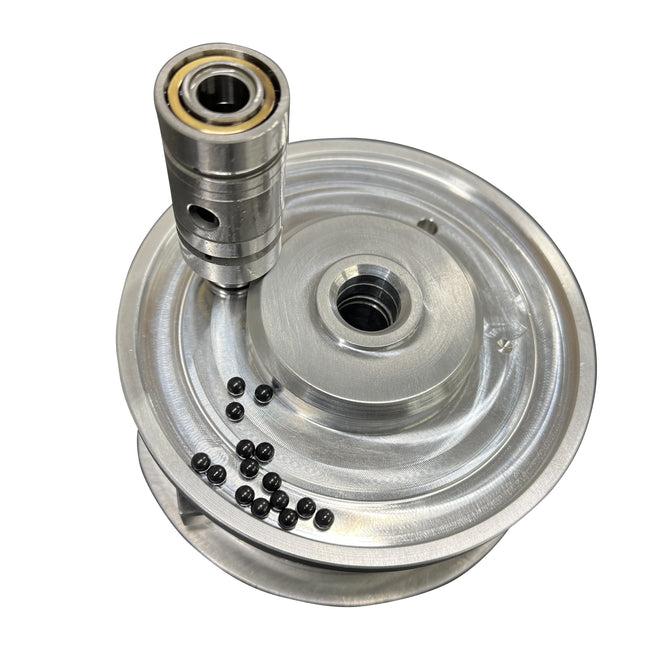

On top of having some of the best wheels in the class this turbo uses BALL BEARINGS which makes this turbo more reliable and faster spooling than its JOURNAL BEARING counterparts.

You can choose from 2 styles of compressor housings, the OEM or PERFORMANCE version.

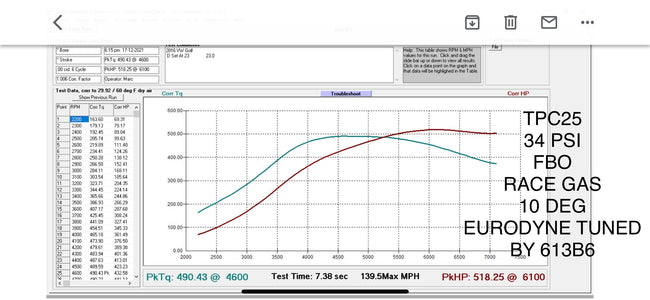

Dyno plot shown is a very repeatable HP figure. We ran very conservative timing for the fuel used and we left a lot on the table. This is a great 500+WHP option for people looking for a great spooling turbo.

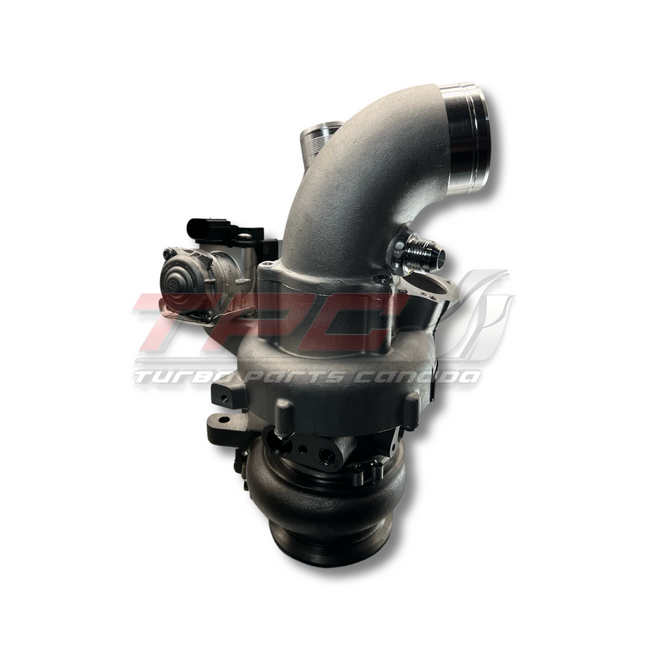

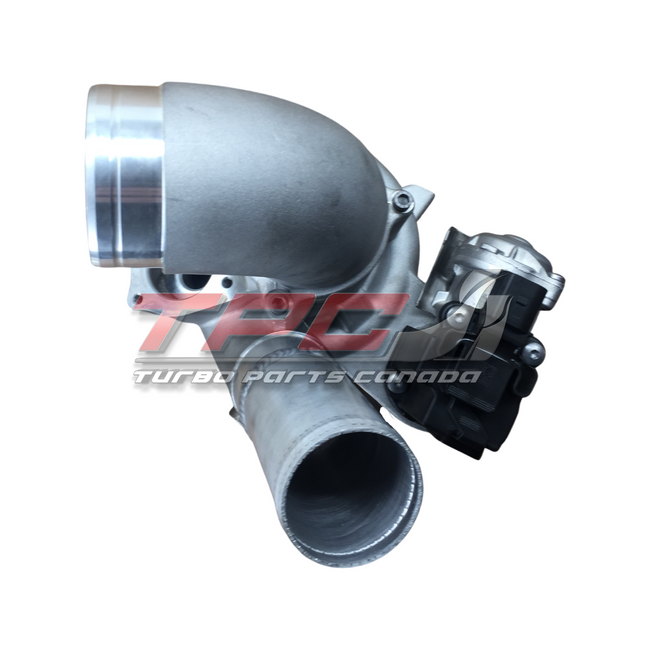

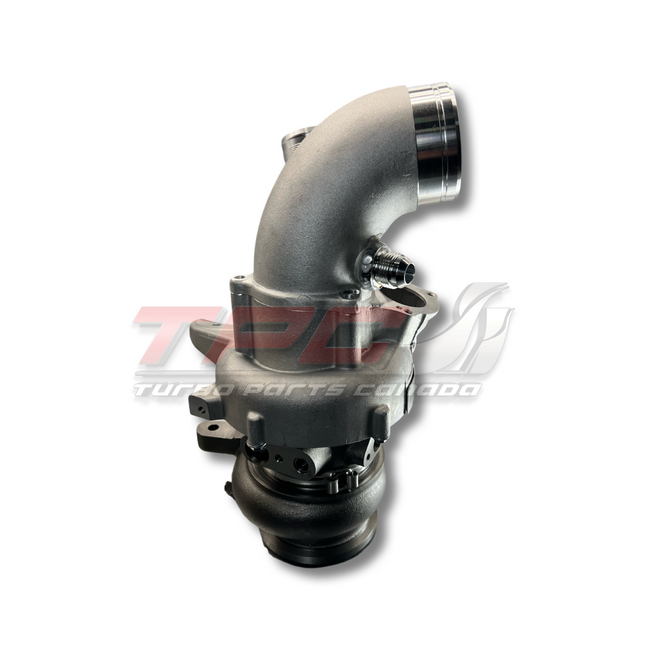

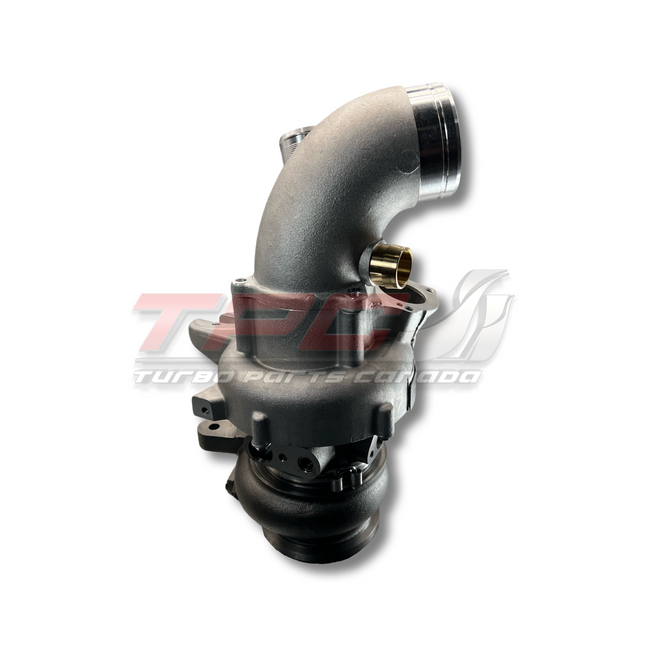

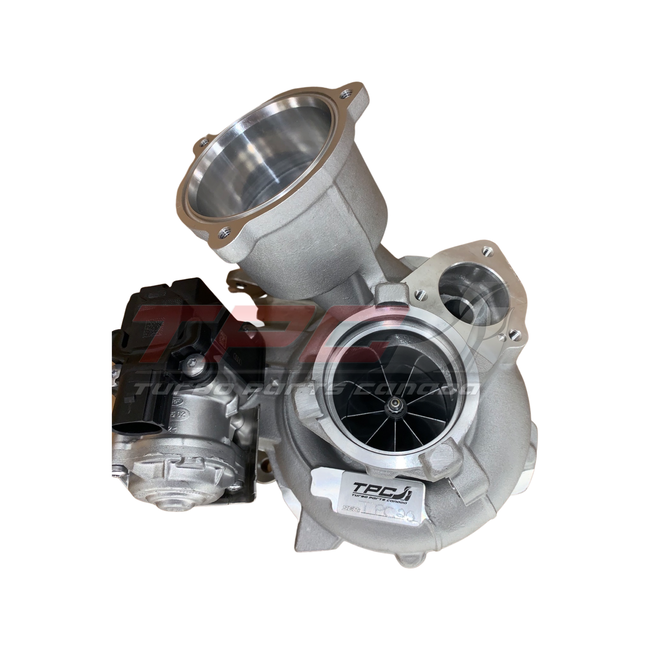

About the PERFORMANCE COVER version: The 2-piece intake system is far superior to the OEM models as shown in the pictures below. The opening at the turbo's inlet is approximately 1" bigger than stock and has a nice angle inside the inlet portion direct the air flow where it needs to go. The inlet on the performance cover is also available with an OEM style PCV fitting or a -10AN PCV fitting for easier catch line installation The result means better air delivery to the G25 compressor.

With our upgraded compressor housing,  it comes with either a 2" outlet on the compressor housing for people running an OEM sized TMD or a 2.25" pipe for people with a discharge pipe from brands such as Neuspeed, AFE, and EQT that came with a LARGER TMD. If you are unsure as to the size of the turbo muffler delete, you are running measure the OD at the serrated portion of the TMD.

Note that the current intake elbow is OEM sized on the intake side to easily bolt up to any intake that attaches to an OEM size turbo inlet pipe. We are developing a 3" elbow for even better flow over our already high flowing inlet.

Please note that those with APR catch can kit, the line requires slight trimming to fit with our OEM PCV when choosing the performance cover option.

WHEN ORDERING THE PERFORMANCE COVER PLEASE PUT WHAT SIZE OUTLET   (OEM/2"or 2.25"Upgraded)  YOU WOULD LIKE IN THE NOTES SECTION OF THE CART.

High Speed balanced in house on our VSR balancing machine.

 TPC also offers the metal portion of the coolant feed line (part#06K-121-492-F) as some people have a very hard time removing it from their turbo.

INSTALL KIT INCLUDED WITH TURBO

(List turbocharger specs as required)

OEM Part Number

TPC25 BB MQB

Compressor Wheel

54MM x 67MM

Turbine Wheel

53MM x 57MM

Bearing Type Options

Ball Bearing

Engine

EA888.3

Turbocharger Upgrades

Upgraded Compressor & Turbine Wheel, upgraded bearings and seals. If performance cover is selected you have several outlet options for sizing

Potential Power

500 WHP With Supporting Mods

Install Hardware Included

YES

VSR Balanced

YES

Applications

Volkswagen MK7 Golf R 2015-2017 2.0 Turbo
Volkswagen MK7.5 Facelift Golf-R 2018-Present 2.0L Turbo
Volkswagen Arteon 2019-Present 2.0 Turbo
Audi Audi S3 8V 2015-Current 2.0T
Audi Audi TTS MK3 2016-Current 2.0T

Volkswagen MK7 GTI 2015-2017 2.0L Turbo
Volkswagen MK7.5 Facelift GTI 2018-Present 2.0L Turbo
Volkswagen 2018-Current Tiguan MQB 2.0L Turbo
Volkswagen Atlas 2018 - Current 2.0t
Audi Audi A3 8V 2014-PRESENT 2.0 TFSI
Audi Audi TT MK3 2016-Current 2.0T

Volkswagen MK7 Golf 2015-Present 1.8T TSI
Volkswagen MK7 Golf Alltrack 2017-Present 1.8 Turbo
Audi Audi A3 8V 2014-PRESENT 1.8 TFSI



**PLEASE CALL TO CHECK ON BUILD TIMES**

Comes with a 1 year warranty

New bearings, New Seals, High speed balancing and premium packaging.

Customer has 6 months from date of purchase to return core for refund. Once we receive your core and confirm its rebuildable we will process your core refund. This usually takes 3-4 business days after receiving.

We ship World wide!

Check out our other website listings for more turbos available. If you don't see what you need just give us a call or email us.

Toll Free # 1-866-552-3477     EXT 1

Local #      1-613-868-6801
